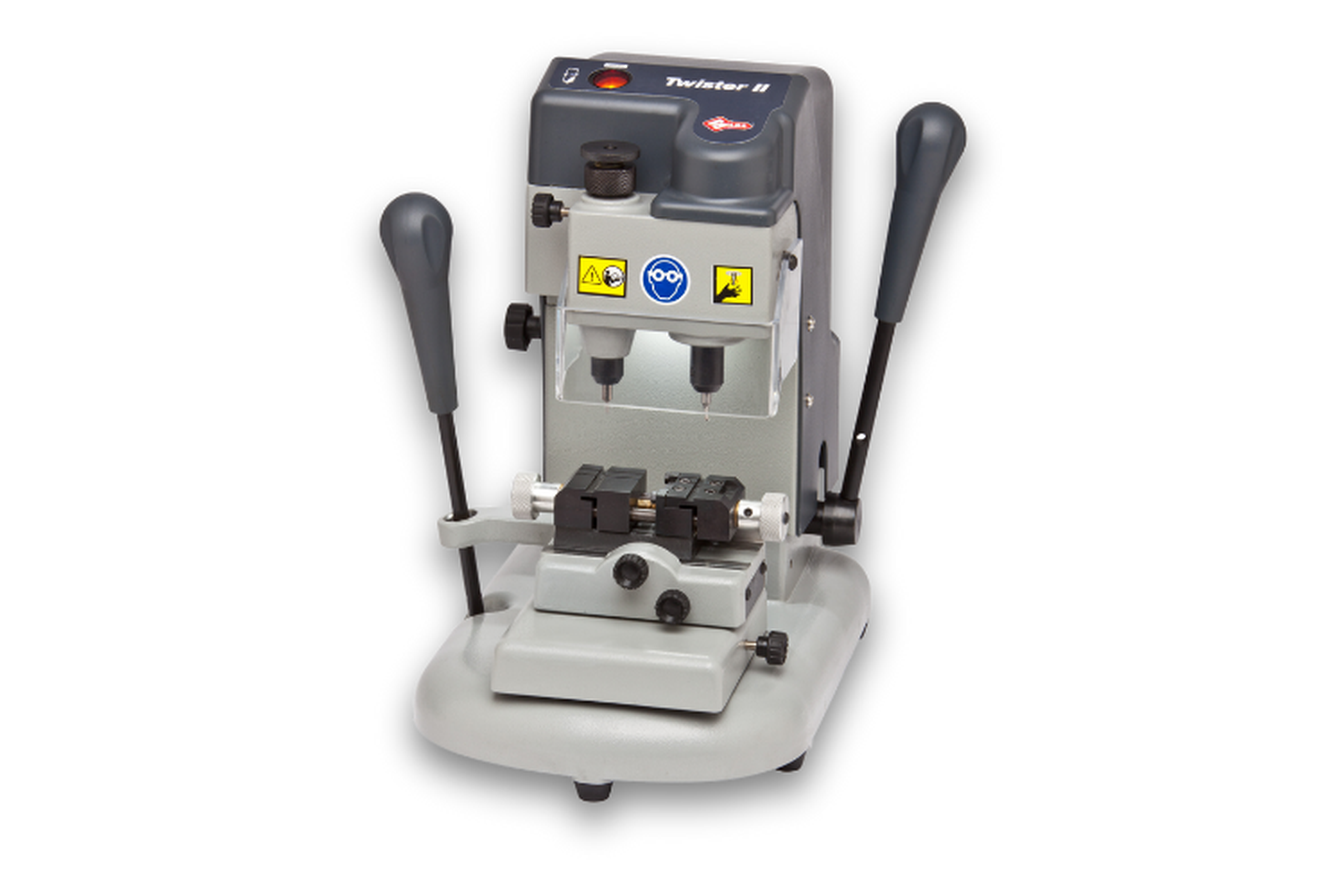

Twister II
The Twister II is designed to duplicate laser and dimple keys.
Delivering consistent and accurate duplicates of a wide range of "laser" (sidewinder), flat cut dimple, and Fichet® type keys. An economical model; the Twister II provides for expansion of capabilities with the optional accessories. Twister II provides an economical solution for duplicating a variety of keys on one machine. Easy to use, reliable, compact, and built to last; the Twister II offers convenience, accuracy, and precision assured by the combination of the functional features listed below. With the modest price point, and a higher re-sell price of the keys that the Twister II will duplicate, you can quickly offset the purchase price of this machine.
Product Details
Features
Two axis movement on ball guides for smooth, easy operation without play
Spring loaded tracer point guides and facilitates self-centering of cuts on dimple keys
Wide transparent safety shield minimizes exposure to moving parts and chips during operation.
LED light illuminates working area
Tracer point adjustment ensures perfect depth alignment and provides for adjustment to worn keys
Lockable carriage for cutting dimple keys and prevents movement during transport
Replaceable jaw surface plates provide an economical repair solution for normal vise jaw wear
Master safety switch with separate cutter motor switch.
Quiet cutting cycle.
Standard accessories include a HSS 2.5mm cutter and tracer for laser keys and a HSS .65mm cutter and tracer for dimple keys
Optional cutters, tracers, and accessories expand capabilities
Light weight, compact design with a small footprint
Designed and produced to CE mark European standards
technical _data
Dimensions:
Width: 14.6”
Height: 9.8”
Width: 14.6 D (370 mm x 250 mm x 370 mm)
Weight: 53 lbs. (24 kg)
Voltage: 120V-50/60Hz
Motor: One-speed single phase
Tool speed: 6000 rpm (+/- 10%)
Optional Accessories:
D741428ZB: Device for Clamping Tubular Keys
D741439ZB: FE07 Cutter for Tubular Keys
D741438ZB: TE07 Tracer for Tubular Keys
D741409ZB: Ford® Tibbe® Code Attachment
Replacement Parts:
Laser Cutter: FE04 D741433ZB High Speed Steel (HSS)
Laser Tracer: TE04 D741432ZB
Dimple Cutter: FE01 D741127ZB High Speed Steel (HSS)
Dimple Tracer: TE01 D741128ZB
Vise Jaw Surface Plate: D945438ZR Jaws Set
