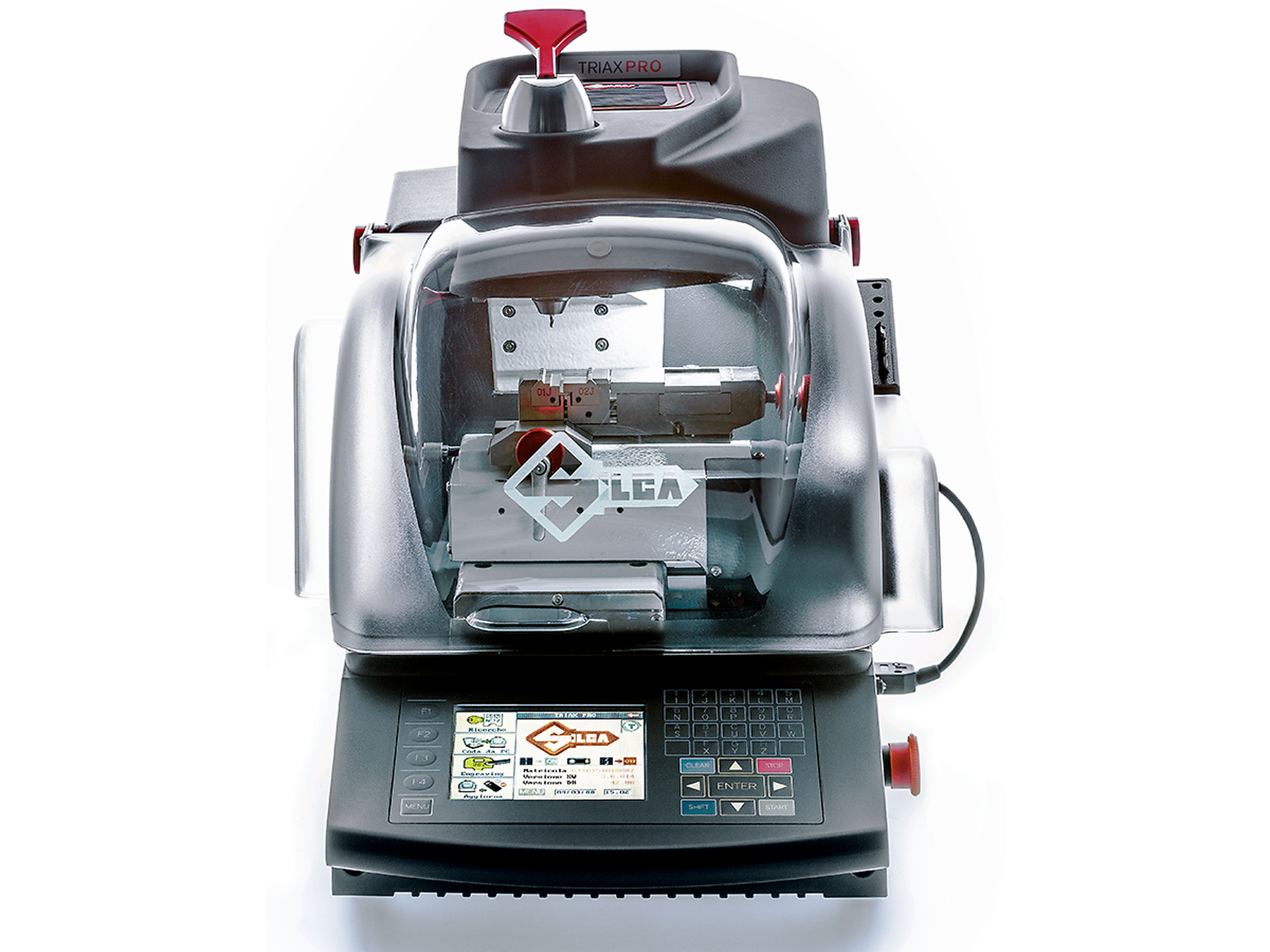

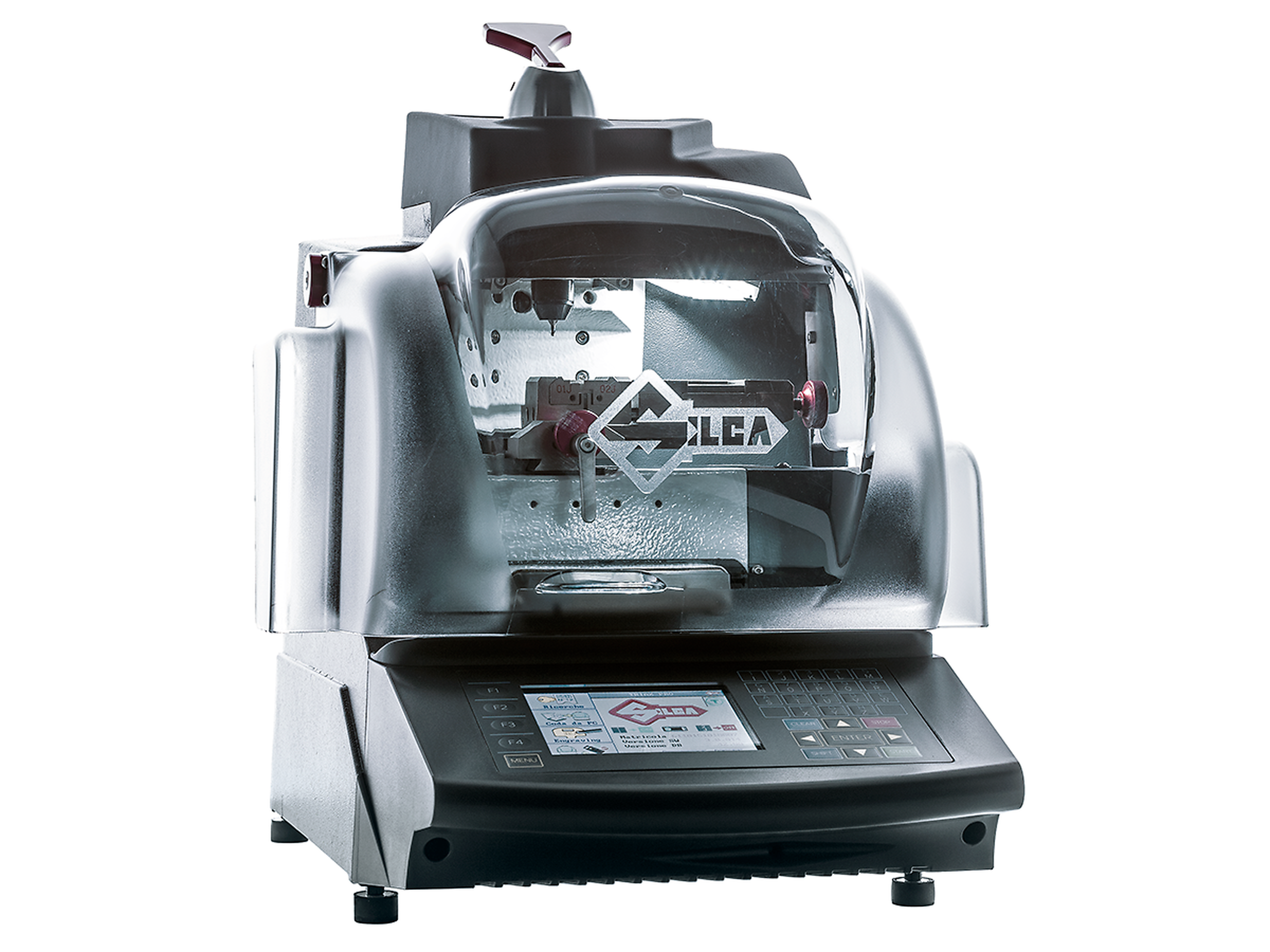

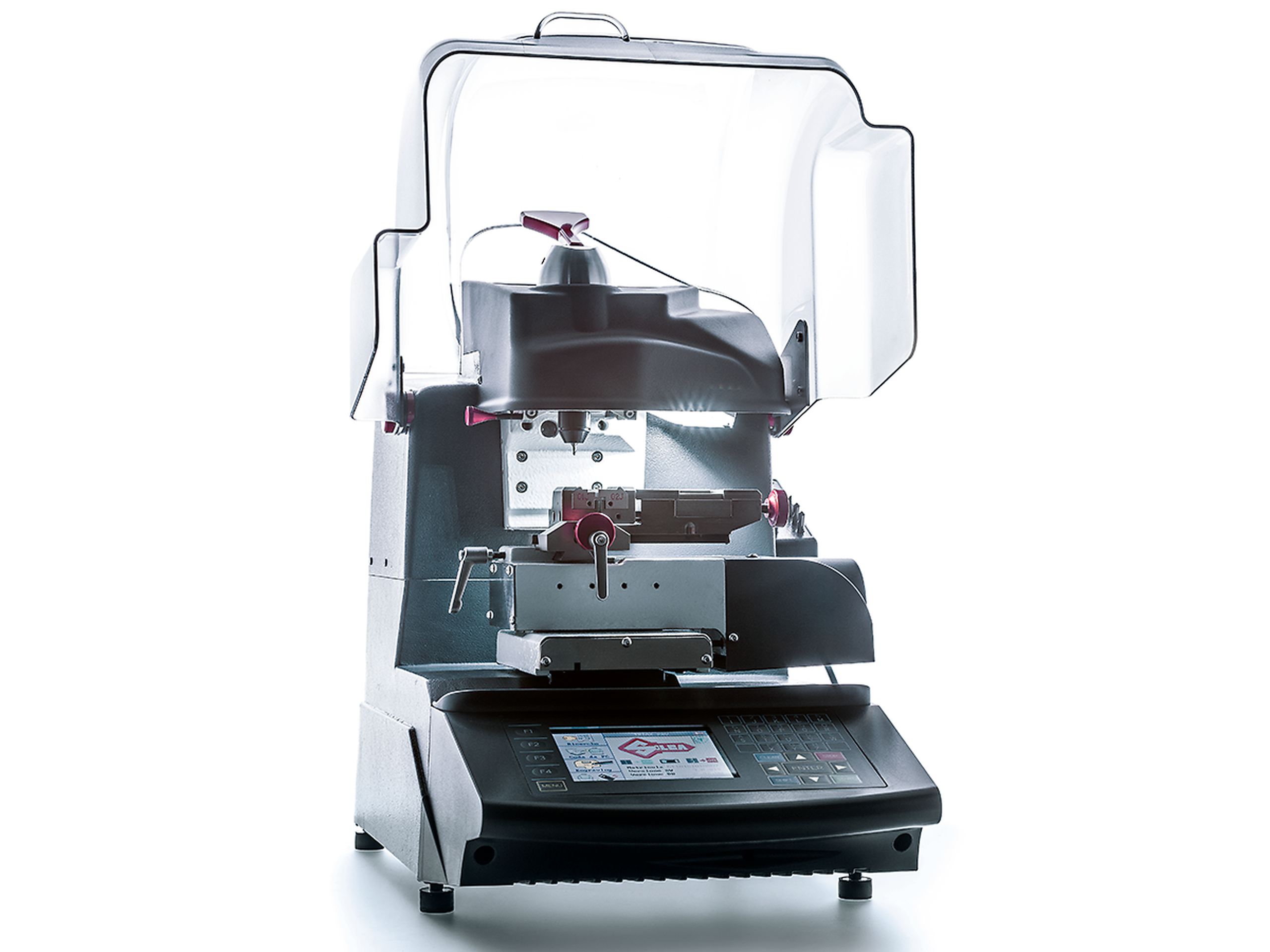

Triax Pro
The Triax Pro is designed for duplicating and originating laser and dimple keys.
Triax Pro is designed for the professional for decoding, cutting by code or from original, laser, and dimple keys. Although the primary use for the Triax Pro is for decoding and cutting by code or form original, it also can engrave keys and key tags.
Product Details
Features
Optional tilting clamps are available for angle cuts.
Designed to work in either stand-alone or PC mode.
This model is available by special order; 230V.
Cutting spindle speeds of up to 19,000 rpm results in faster cutting cycles
Modify the cutting speed by 30%; speed up work queues or slow down to limit cutter wear

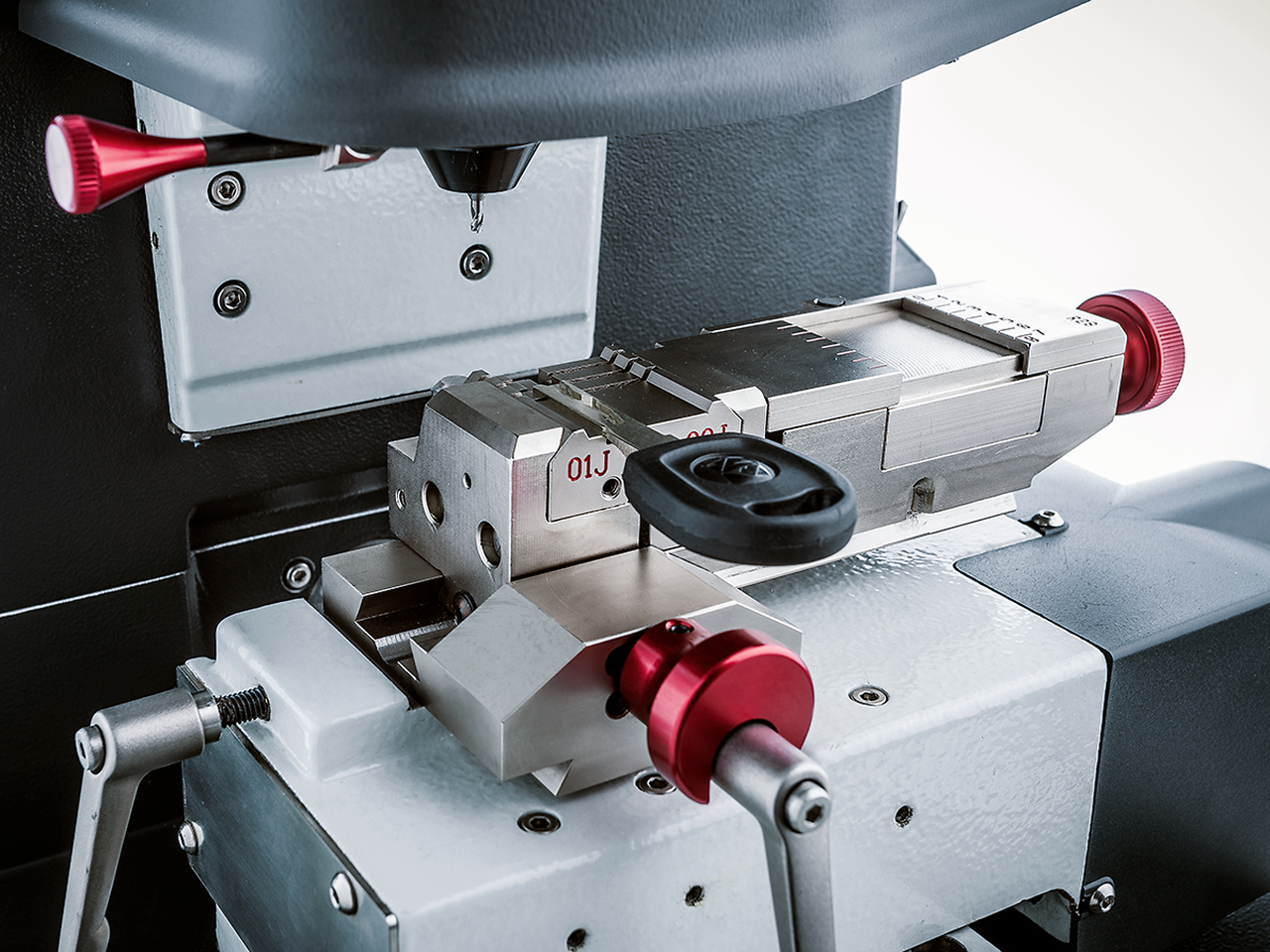

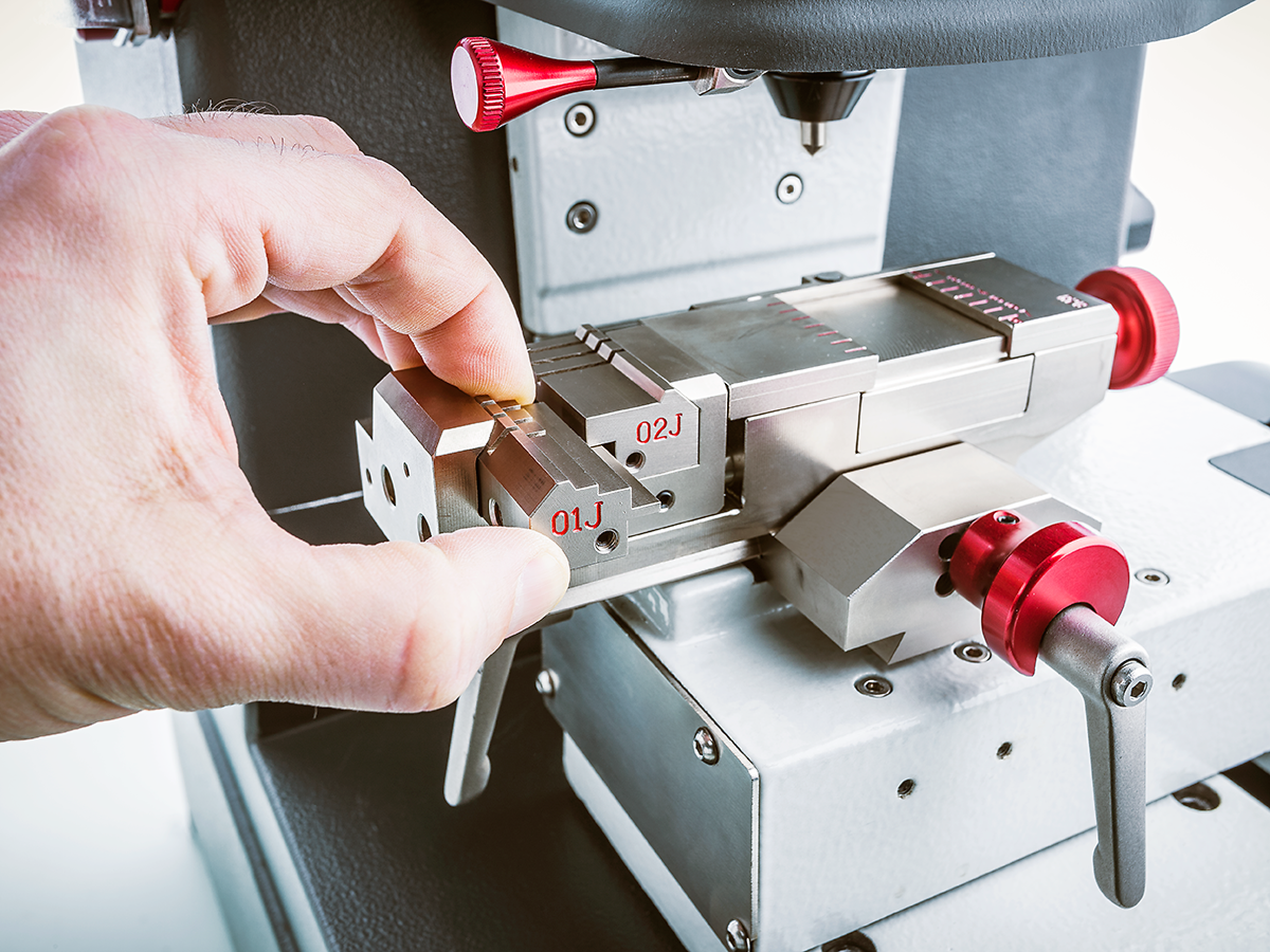

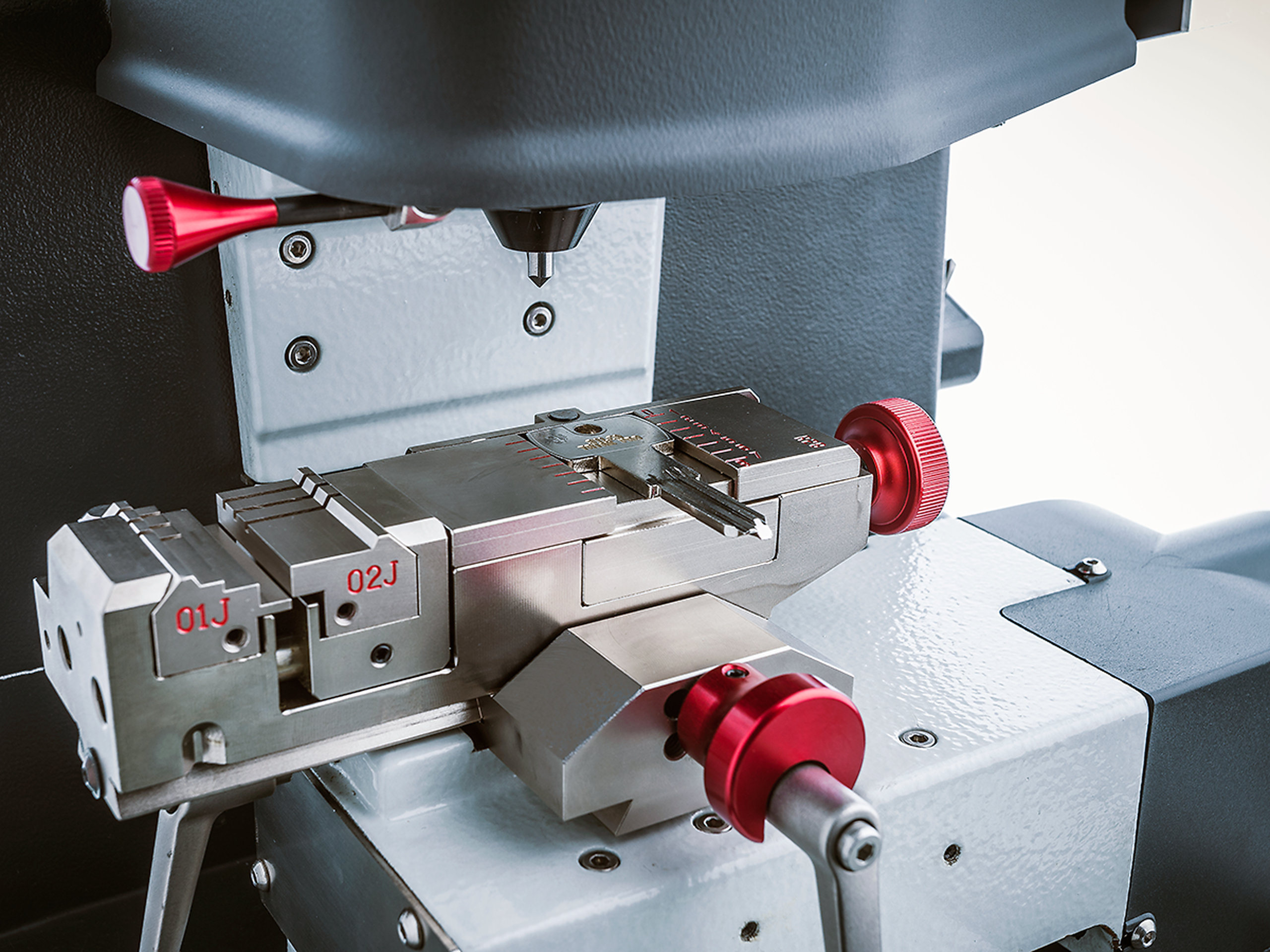

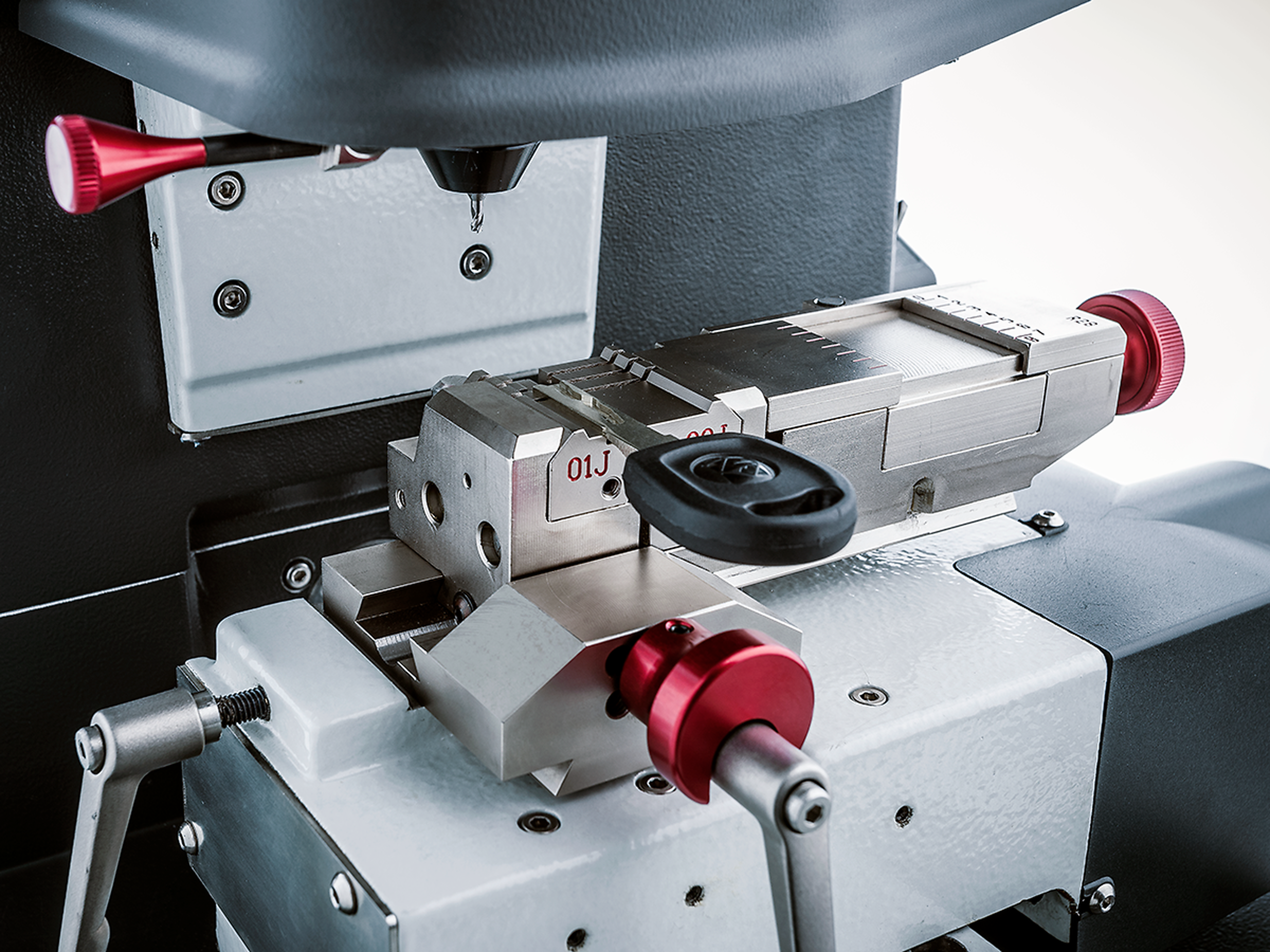

Interchangeable quick-change jaws that save time and reduces cost
Clamp calibration notice
Quick-release tool change

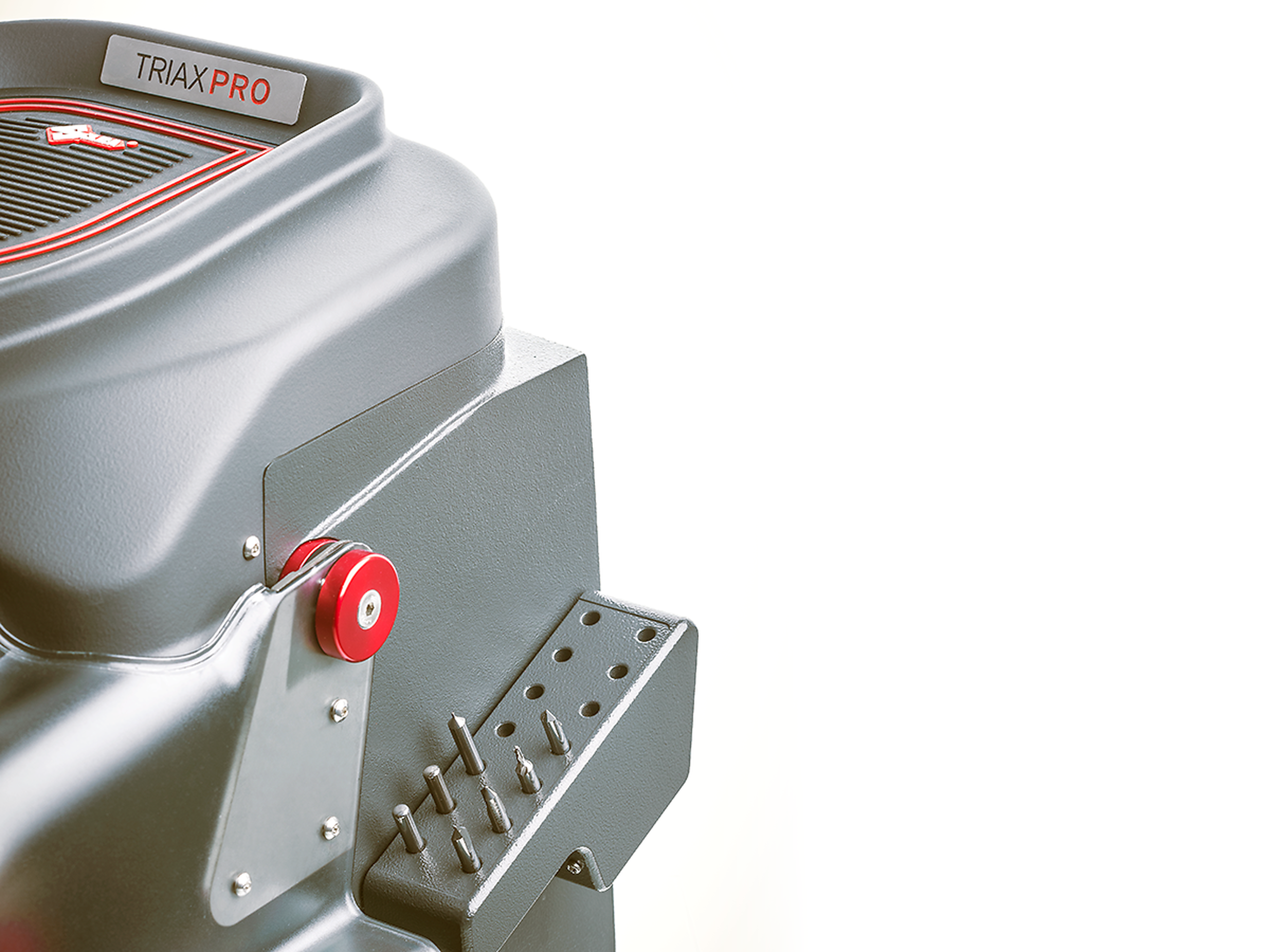

Efficient, integrated cutter holder and hood accessory tray
Database allows for search by key blank, serial number, lock manufacturer, indirect code, system description, etc.
USB Flash Drive allows software updates, back up of data saved on the machine
Equipped with a 5.7” (145 mm) built-in color display
Maintains a running total of keys cut with each individual cutter
Advises operator on cutter selection and when cutter may need replacement
Optional tilting clamps for angled cuts plus many more optional accessories
technical _data
Power Supply: 230V-50Hz, Rated Current 1 Amp
Motor: Brushless 48V-200W, Multi-speed 6000-19000 rpm
Cutters: D738590ZB W500 Carbide, D709238ZB W101 Carbide D734267ZB W146 Carbide (for engraving)
Dimensions:
Width: 17.72" (450mm)
Depth: 20.08" (510 mm)
Height: 13.39” (340mm) without tablet
Weight: 113.54 lbs. (51.5kg)
