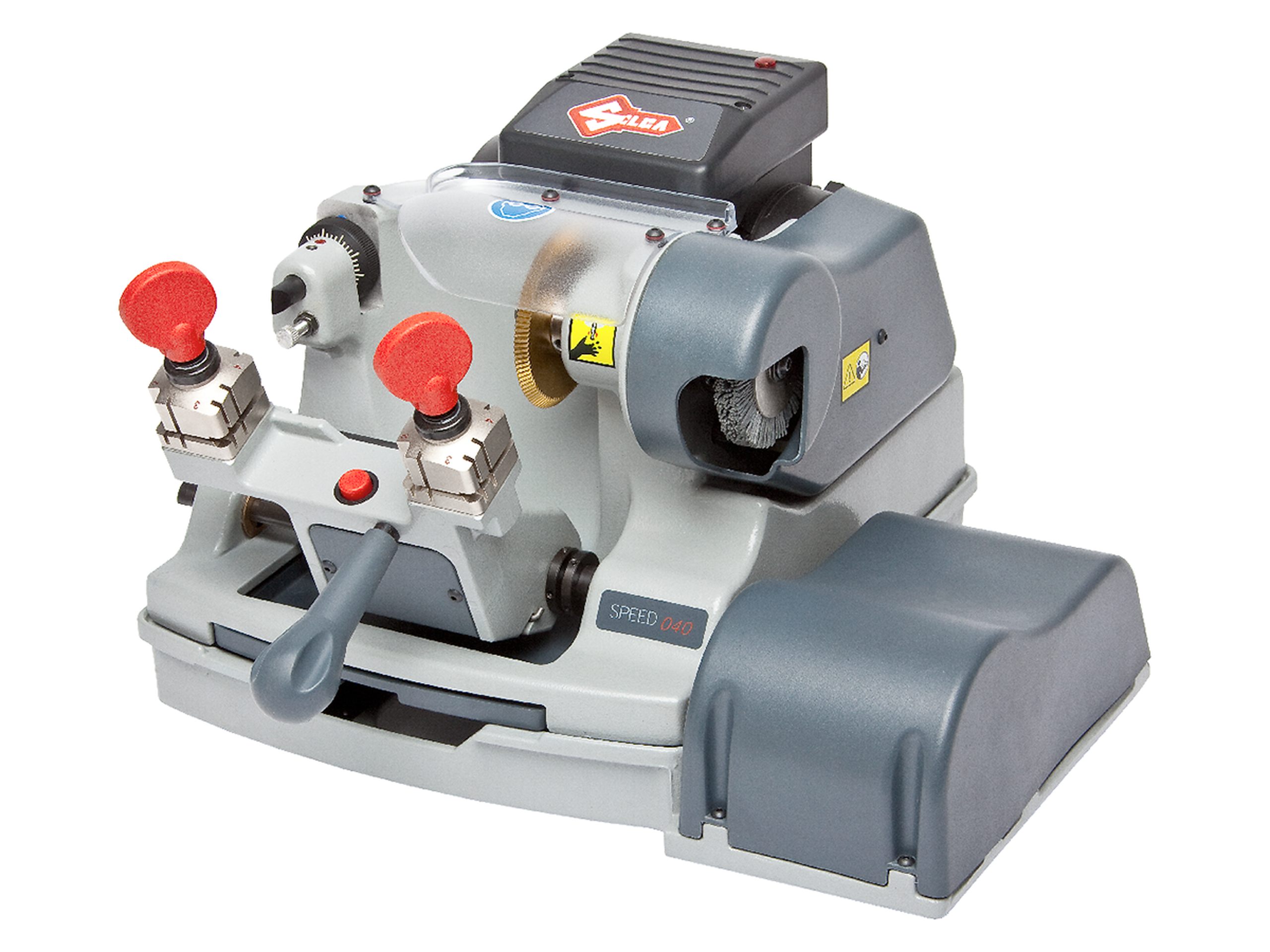

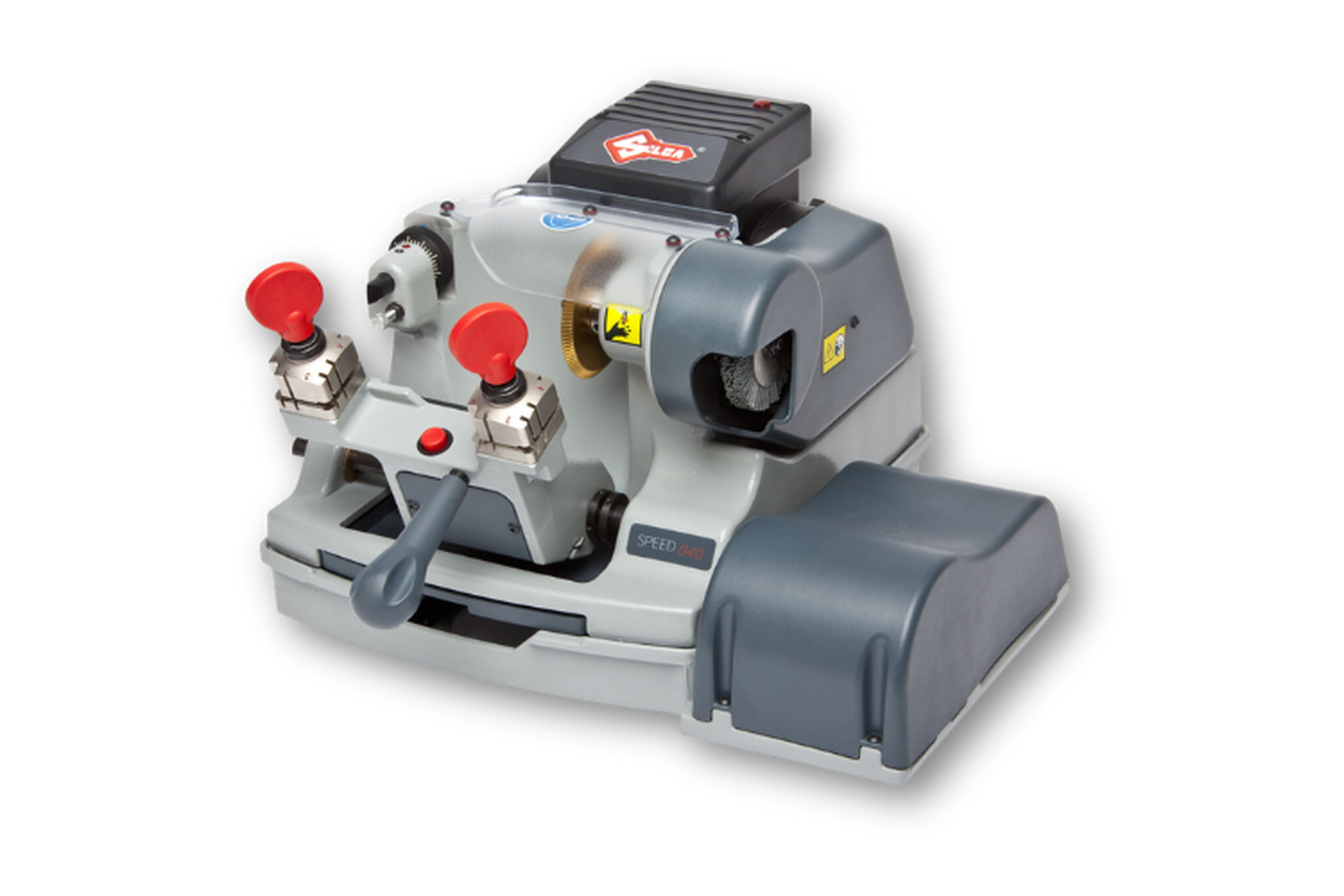

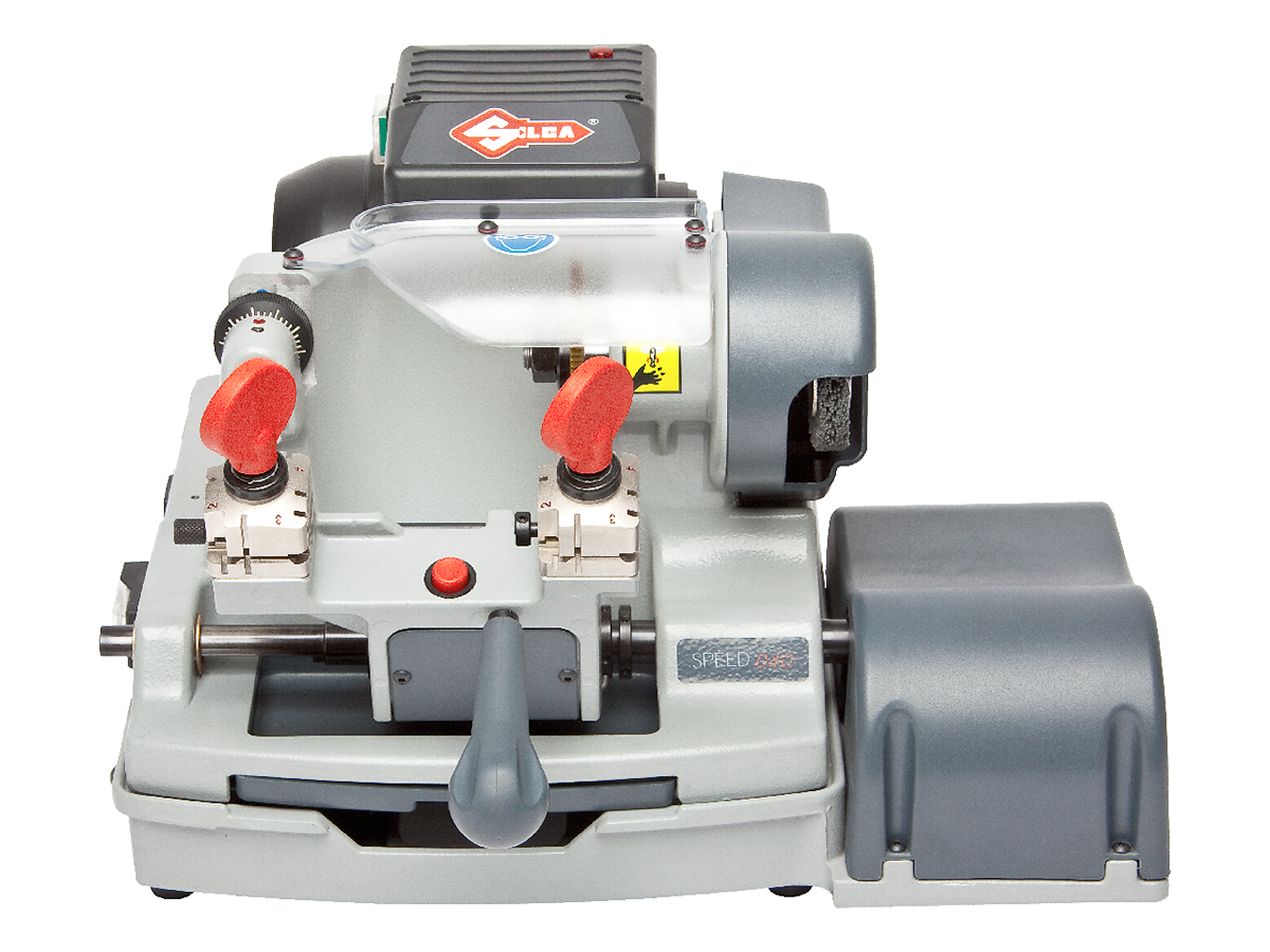

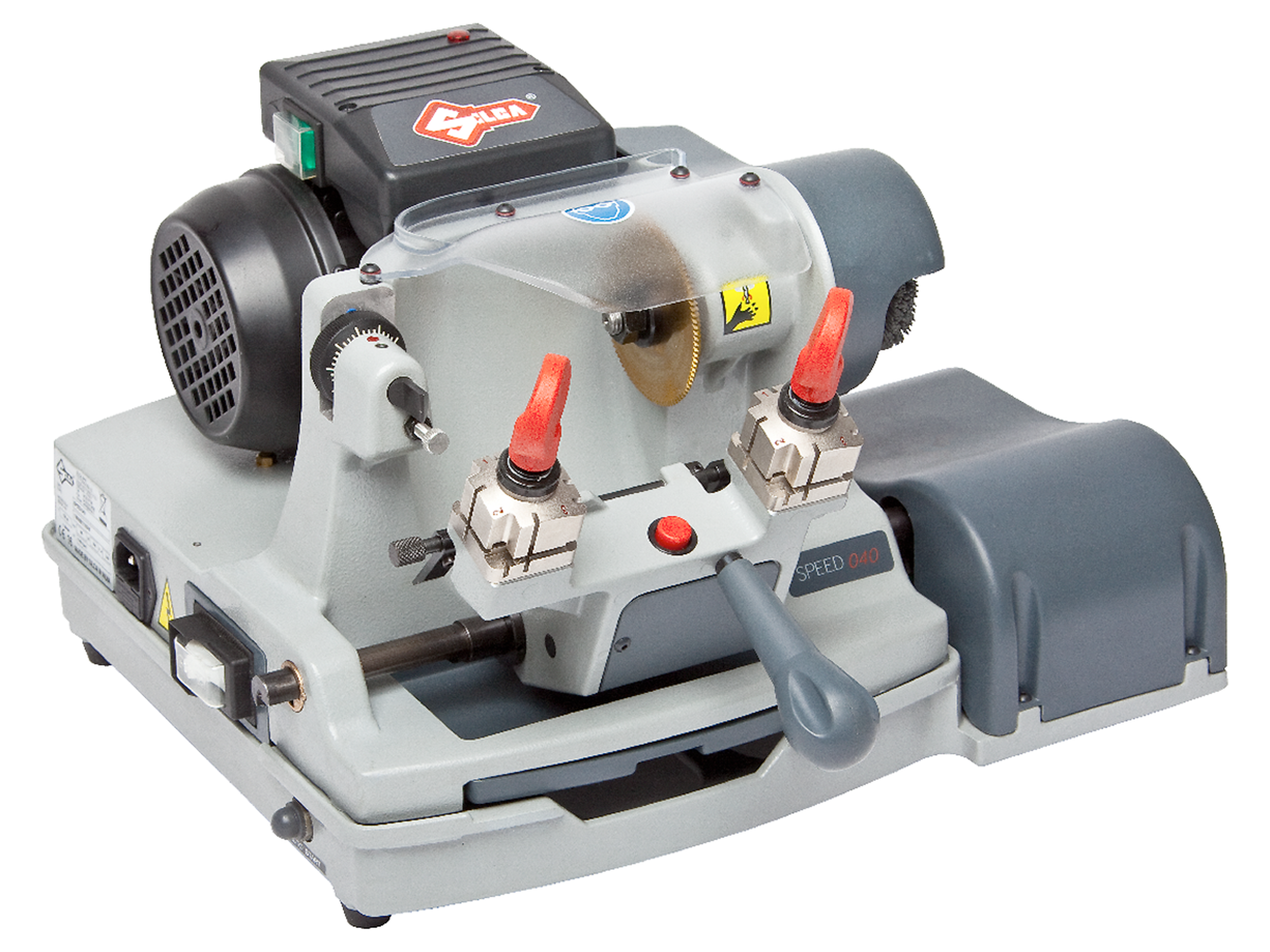

Speed 040 Automatic
The Speed 040 is designed to duplicate edge cut automotive, residential and commercial keys.
The Speed 040 is primarily an automatic model that also provides the flexibility to be operated manually when desired to duplicate edge cut/flat style keys accurately. The Speed 040 is the perfect choice for the store or shop wanting the versatility to choose between automatic or manual operation. This versatile operational mode combined with the modern, open style and many additional features will provide users with years of service.
Product Details
Features
The spring loaded carriage is engaged by the press of a button and applies a consistent cutting pressure while in automatic mode
Four sided, nickel plated jaws for clamping the majority of all edge cut/flat type keys. Smooth rotation by simply twisting into position.
Slotted jaw surfaces accommodate tip stop bars and a rigid shoulder gauge design to allow for greater accuracy when loading and gauging keys.
Wide spacing 3 1/2” (88.9 mm) spacing between clamps accommodate large bow (head) and long blade keys, including flip style keys
Depth tracer system with micro adjustment for precise calibration in increments of .00098” (0.025mm)
TiN (Titanium Nitride) coated cutter for longer life and oxidation resistance
Nylon deburring brush
Electro-magnetic “main” safety switch with a separate cutter motor switch for easy access.
Large transparent cutter safety shield contains chips and provides a storage area for accessories
Large drawer-type swarf (chip) tray under the carriage for easy access
Mounting bracket included for securing the machine to counter
Two year warranty
technical _data
Power Supply: 120V-60Hz
Maximum absorbed power: 2.8 Amp, 200 Watt
Cutter motor: single phase and speed
Movements: by ball joint on rectified carriage
Tool Speed: 1350 rpm
Carriage Runs: 1.65” (42 mm)
Cutter: TiN coated
Brush: Nylon, 5/8” (15.87 mm) bristles
Dimensions:
Width: 19.3” (490 mm)
Depth: 18.1” (460 mm)
Height: 11.8” (300 mm)
Weight: 44 lbs. (20 kg)
