Rim Cylinders
The line of Rim Cylinders is ideal for use on 1½" (38.1mm) to 3½" (88.9mm) door thicknesses. Each Rim Cylinder is machined from solid brass bar stock and is furnished with a lost motion tailpiece, trim ring, mounting plate, and break-off screws.
The broad selection of models and components within our line provides you with flexibility to cover numerous applications.
Product Details
Features
Master and Grand Master Key quality, and are re-keyable to original manufacturers systems.

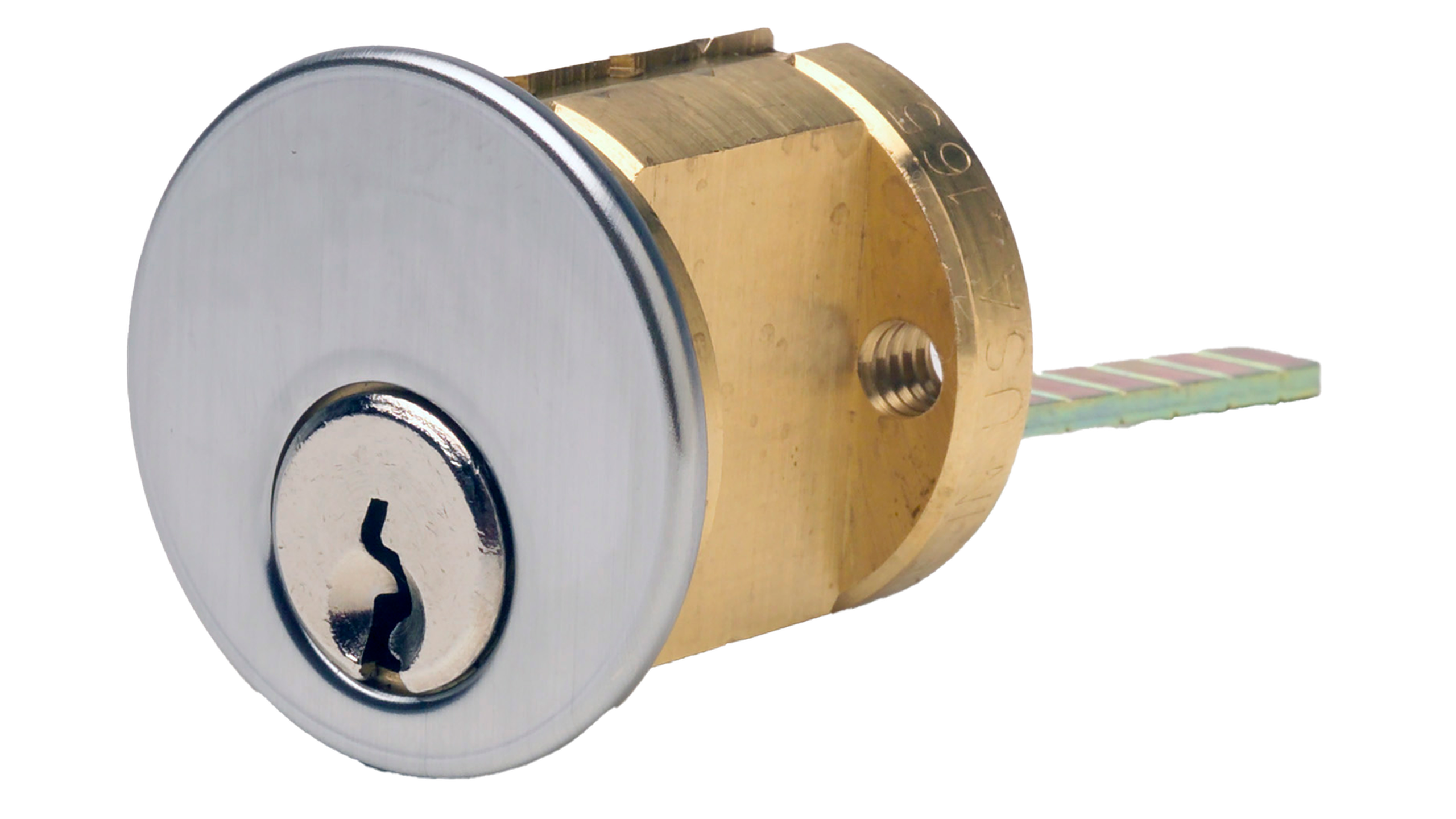

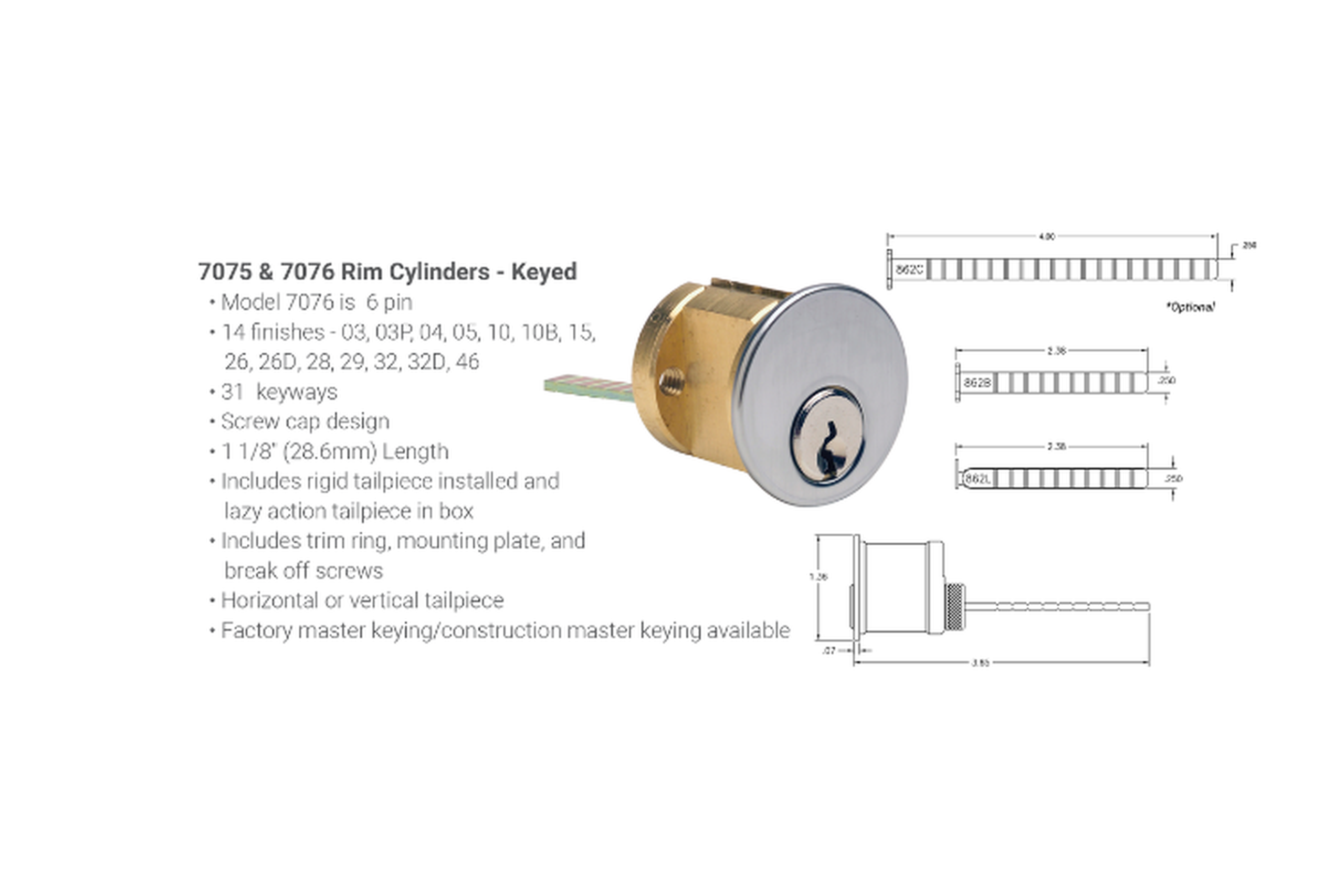

7075 & 7076 Rim Cylinders - Keyed
Model 7076 is 6-pin
14 Finishes: 03, 03P, 04, 05, 10, 10B, 15, 26, 26D, 28, 32, 32D, 46
31 Keyways
Scew cap design
1 1/8" (28.6mm) Length
Includes rigid tailpiece in box
Includes trim ring, mounting plate, and break off screws
Horizonal or vertical tailpiece
Factory master keying/construction master keying available.

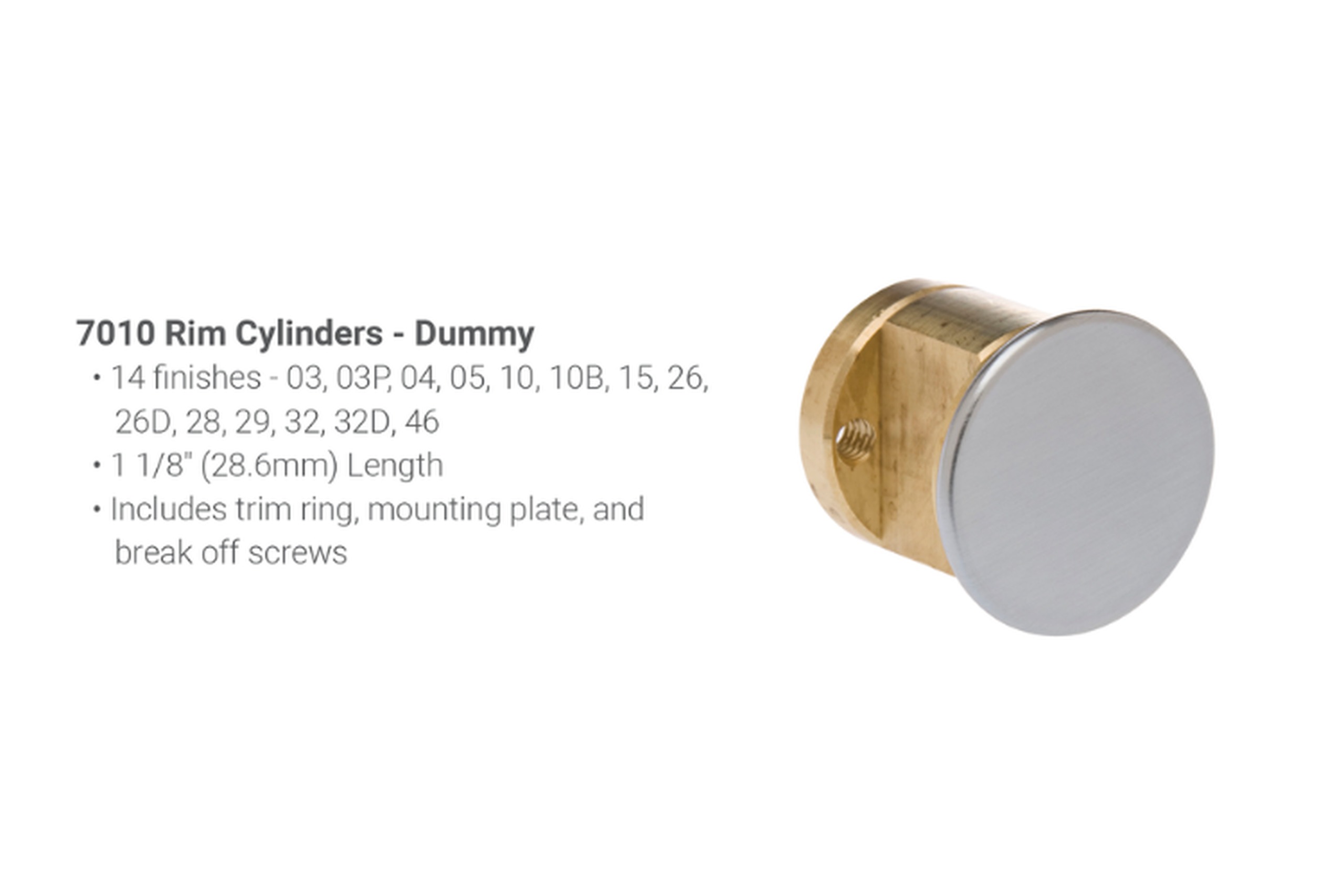

7010 Rim Cylinders - Dummy
14 finished: 03, 03P, 04, 05, 10, 10B, 15, 26, 26D, 28, 29, 32, 32D, 46
1/1/8" (28.6mm) Length
Includes trim ring, mounting plate, and break off srews

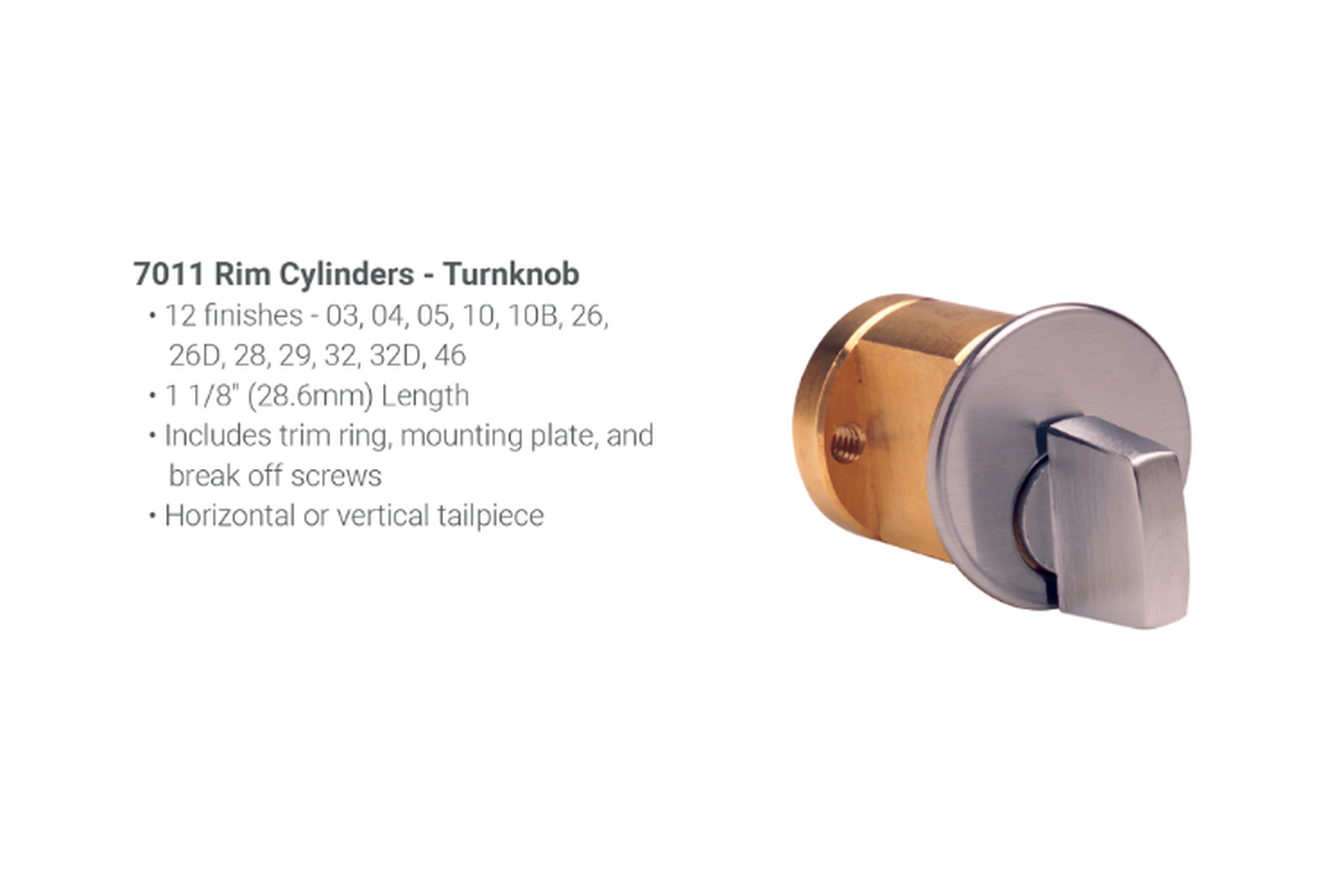

7011 Rim Cylinders - Turnknob
12 finishes: 03, 04, 05, 10, 10B, 26, 26D, 28, 32, 32D, 46
1 1/8" (28.6mm) Length
Includes trim ring, mounting plate, and break off screws
Horizontal or vertiac tailpiece

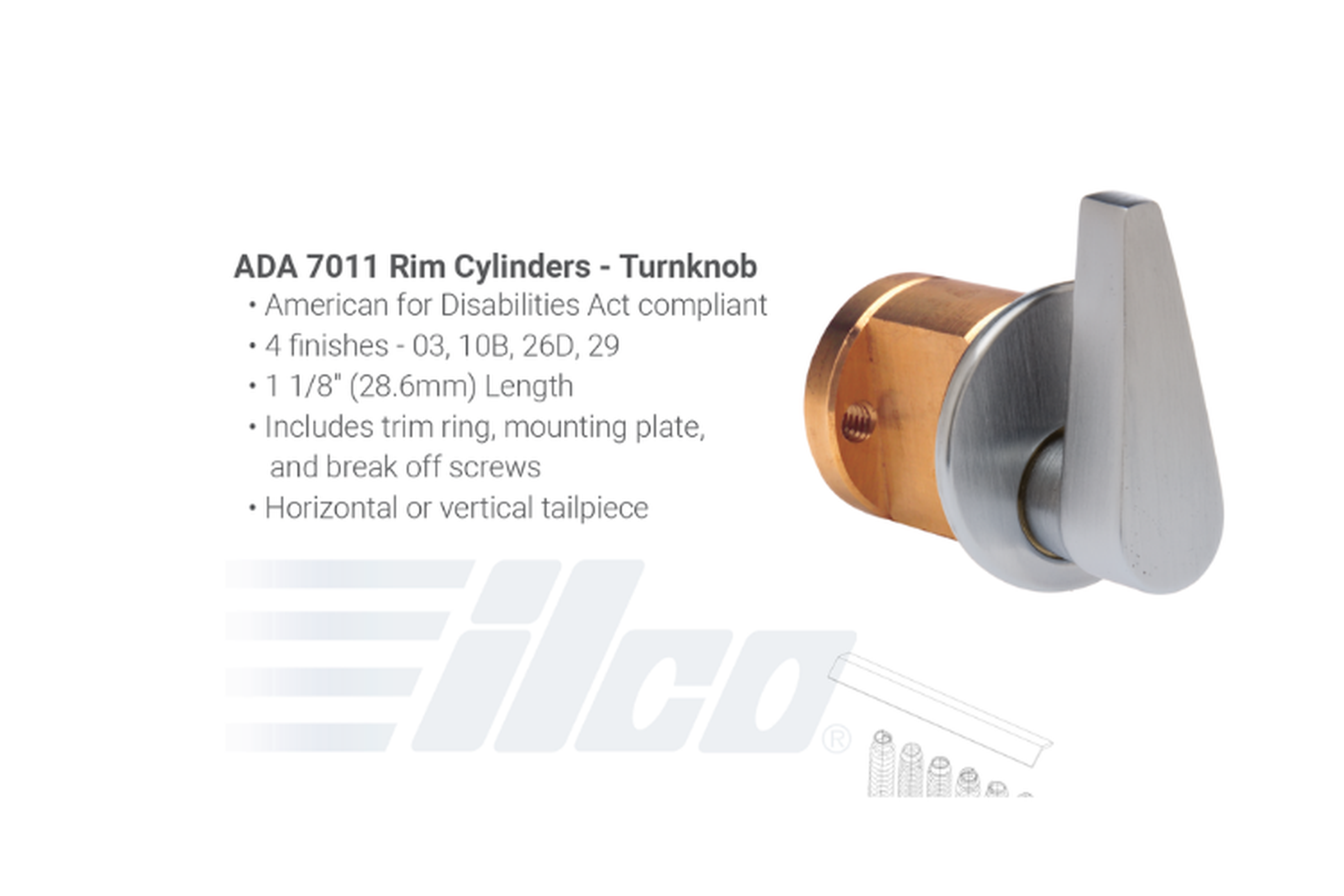

ADA 7011 Rim Cylinders - Turnknob
American For Disabilities Act compliant
4 finished: 03, 10B, 26D, 29
Iclundertrim ring, mounting plate, and break off screws
Horizontal or ertical tailpiece
Ilco Rim Cylinders are engineeted and manufactured to OEM specifications.
