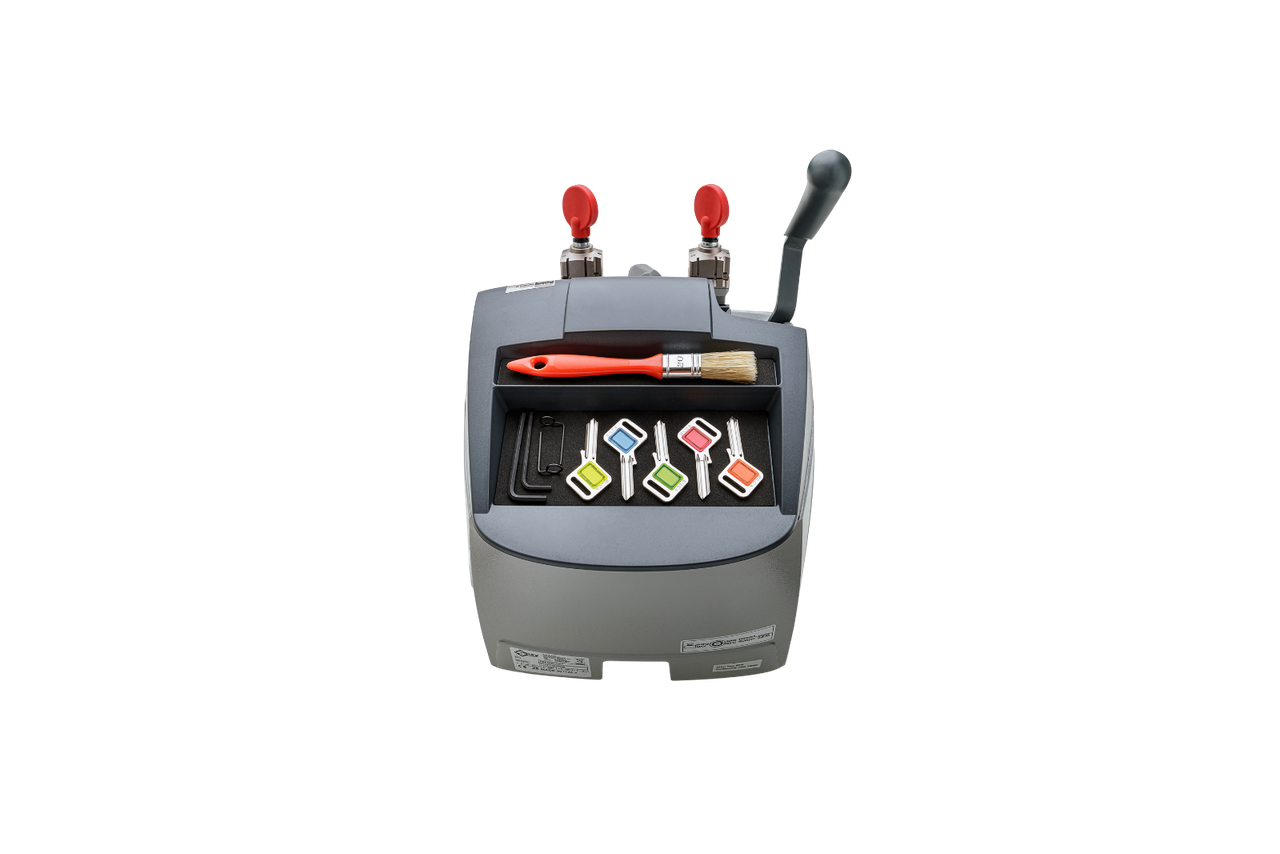

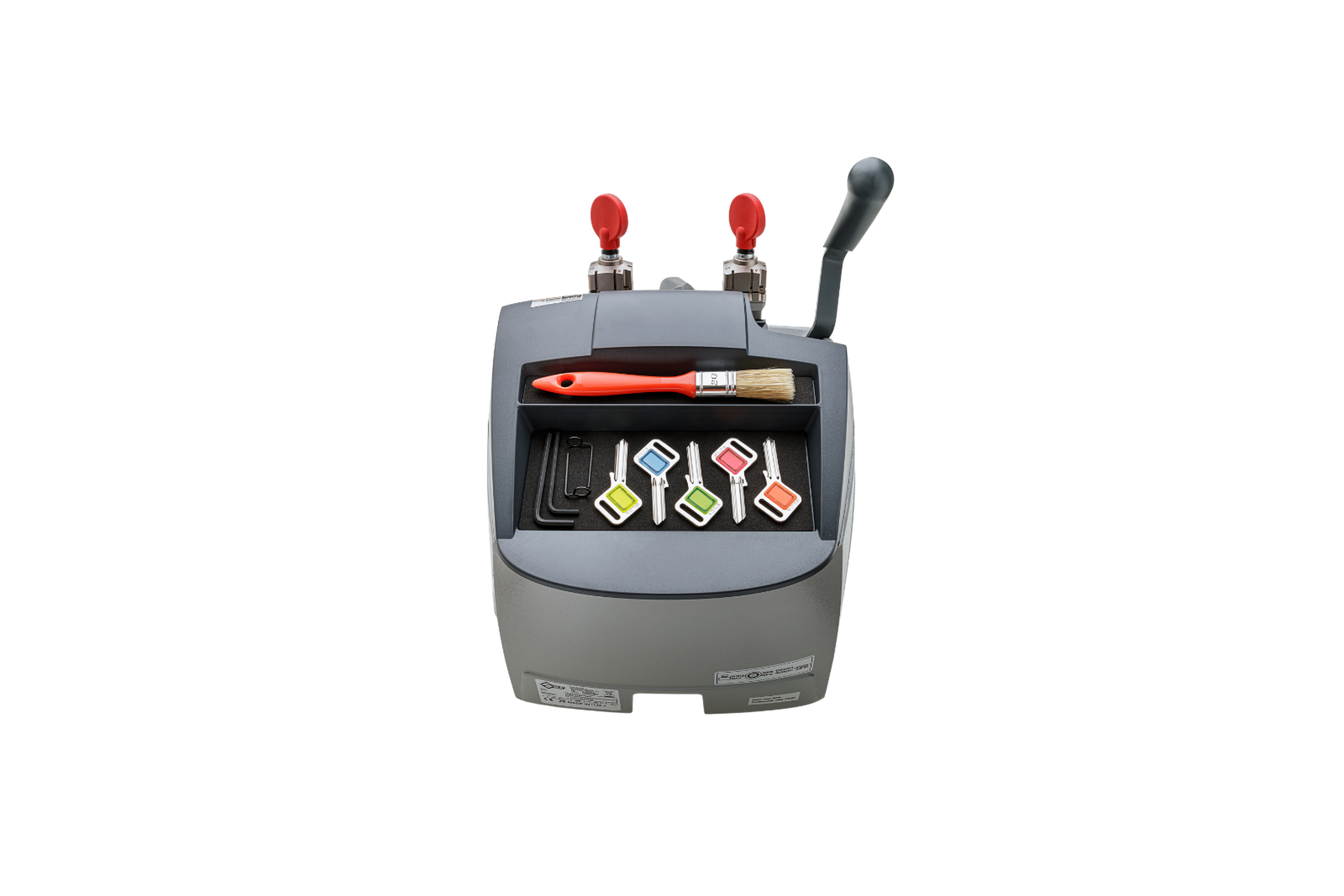

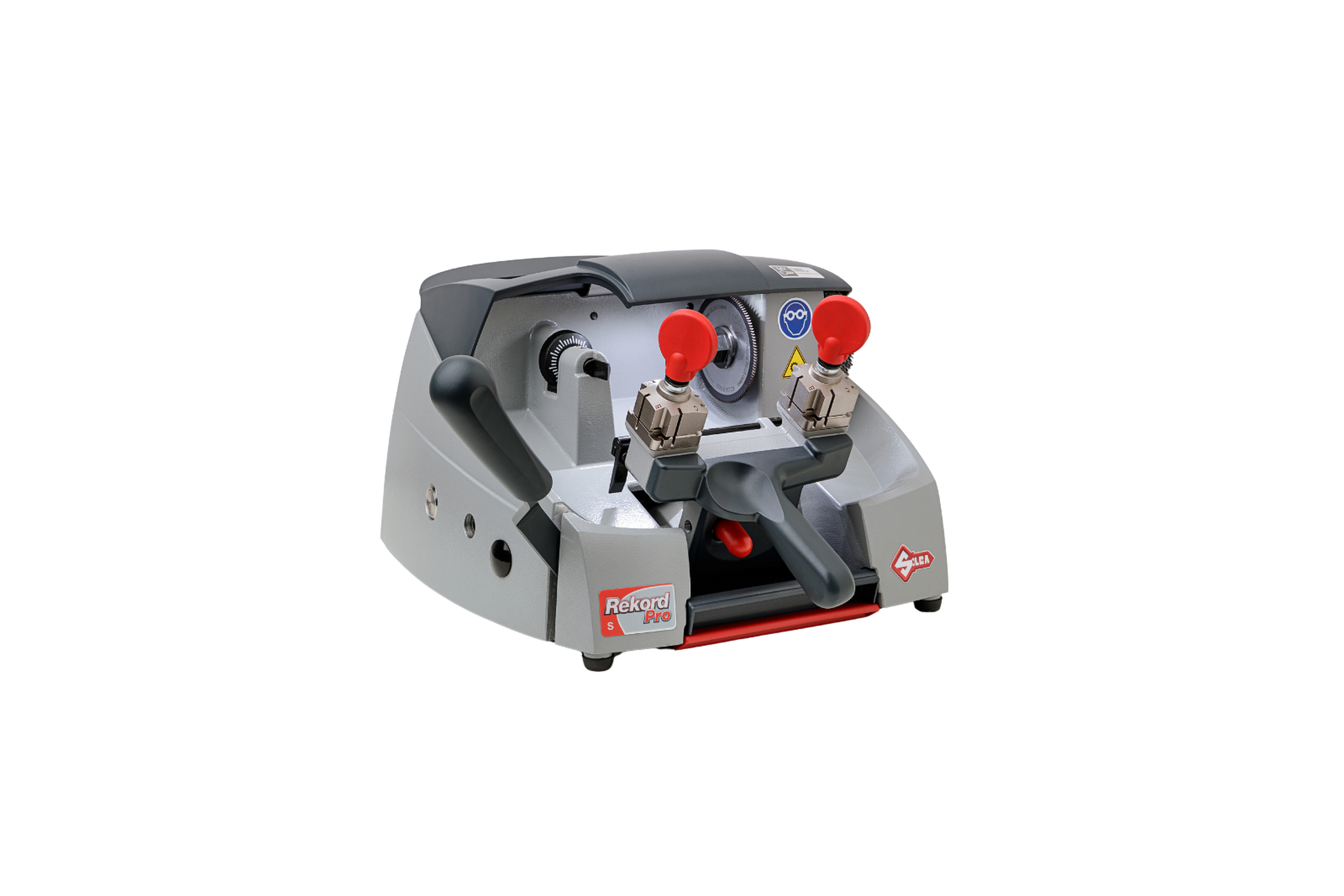

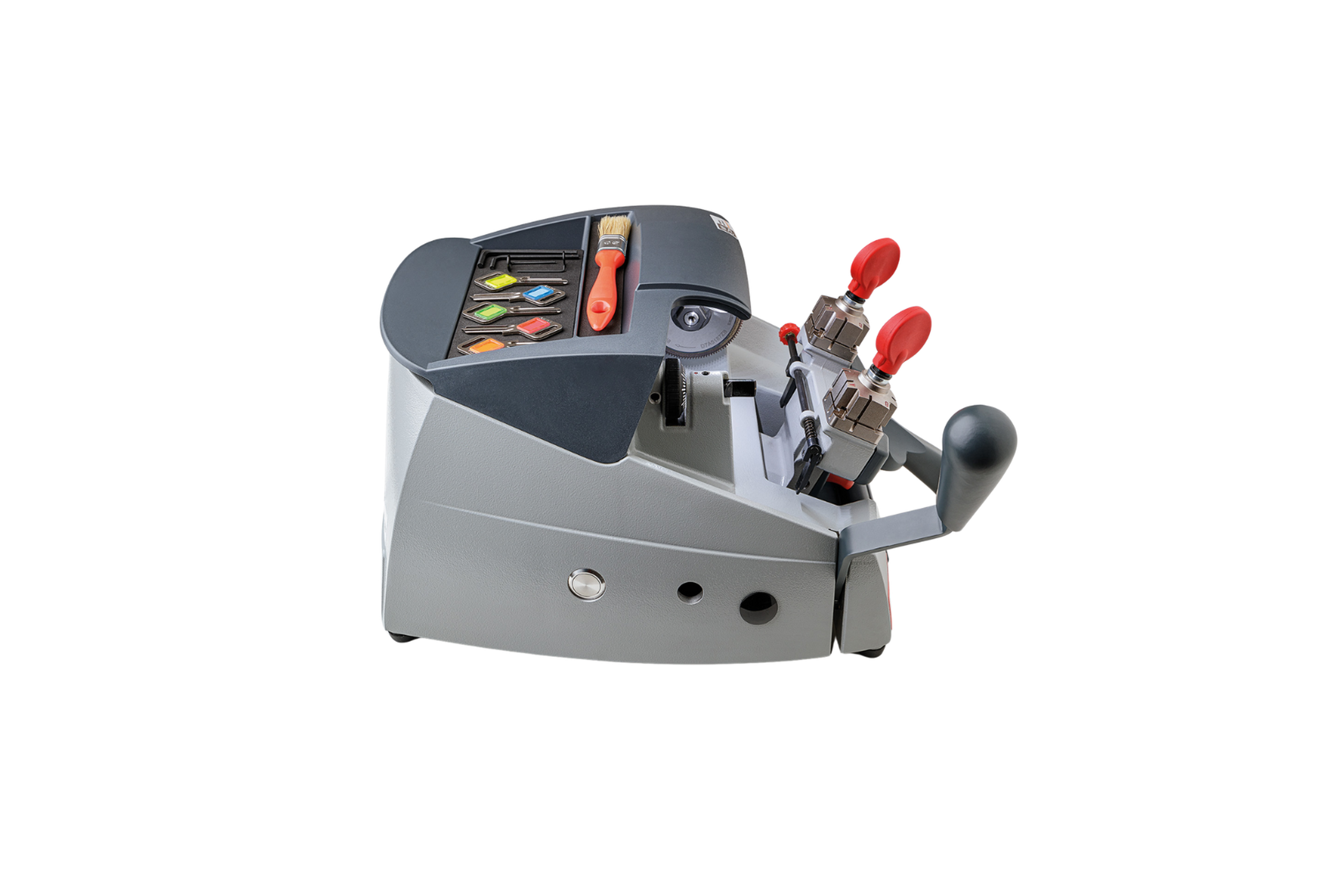

Rekord Pro S
The Rekord Pro S is the mechanical key cutting machine for cruciform, edge, and double sided edge cut vehicle keys.
The Rekord Pro S is a mechanical key cutting machine specifically engineered for the duplication of cruciform, residential, and automotive edge cut keys. It is equipped with an automatic cutter motor that activates upon raising the carriage, thereby enhancing user convenience. The work area benefits from excellent illumination provided by a robust LED strip light positioned above the cutter. Its compact design renders this machine ideal for use in any locksmith shop or mobile van setting.
Product Details
Features
Quick rotation clamps with ergonomic handles
Long-life TiAlN coated cutter made from HSS Super Rapid Steel
Precise carriage movements with self-lubricating DU® bushes
Automatic cutter starting for safety

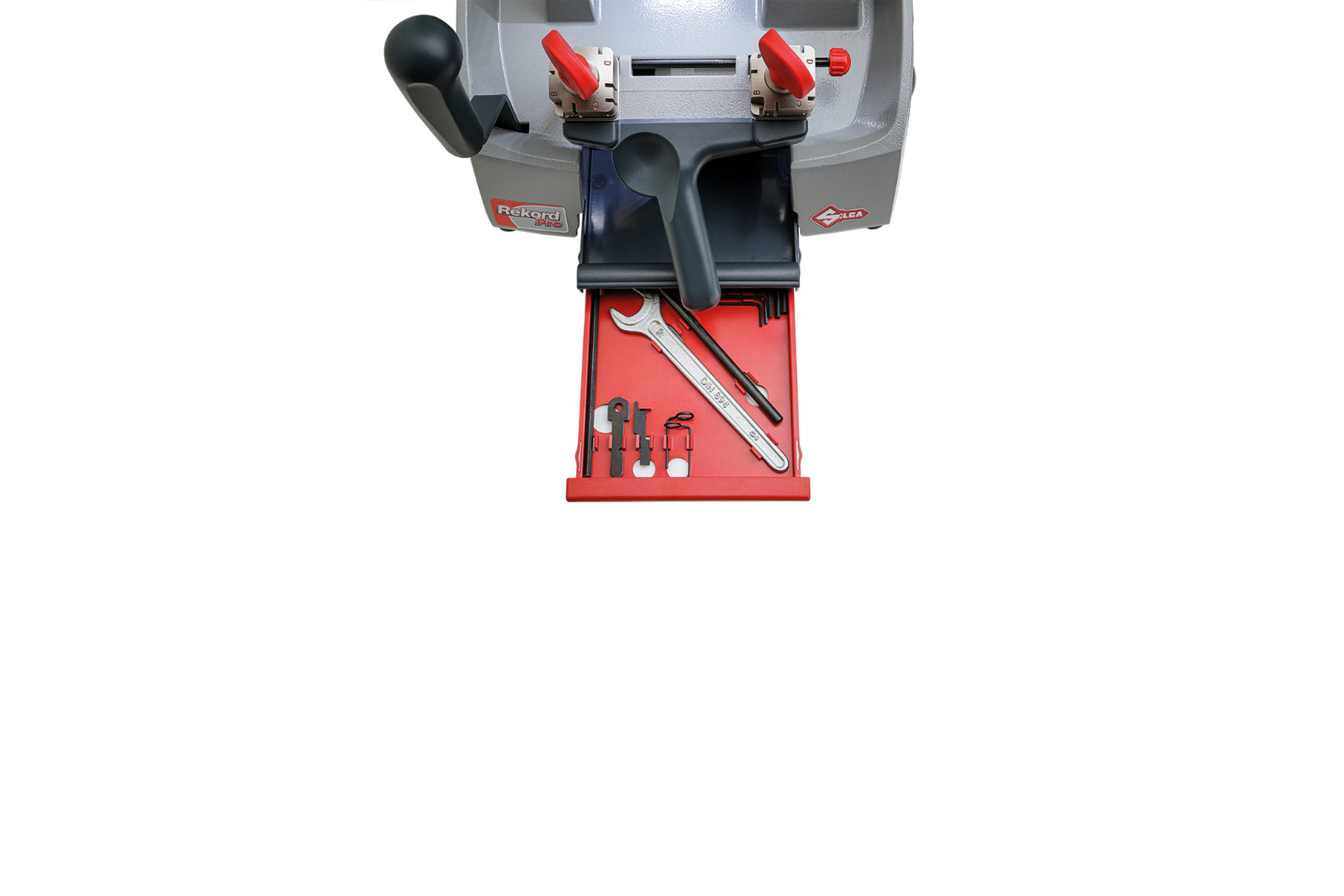

Integrated tool storage with an anti-slip mat and pull-out compartment.
Easy calibration with a mechanical tracer point and micrometric adjustment ring
LED strip light for perfect illumination of the working area
Safety cut-out on the on-off switch to prevent accidental starts
Tynex coated de-burring brush for a perfectly finished key
technical _data
Cutter motor: single phase
Power supply: 120V-50/60Hz - 440W 2A
Cutter speed: 1350/1620 rpm
Movements: by gear on rectified carriage
Prismatic cutter: HSS (Super Rapid Steel), TiAlN coated
Clamp: rotating, 4-sided
Carriage runs: 43 mm (max. length of cuts)
Dimensions:
Width: 330 mm (including lever: 510 mm),
Depth: 430 mm, Height: 270 mm
Weight: 42 lbs
