Pro Tech Plus
Pro Tech Plus is a modular platform that can be customized with several configurations according to specific key systems.

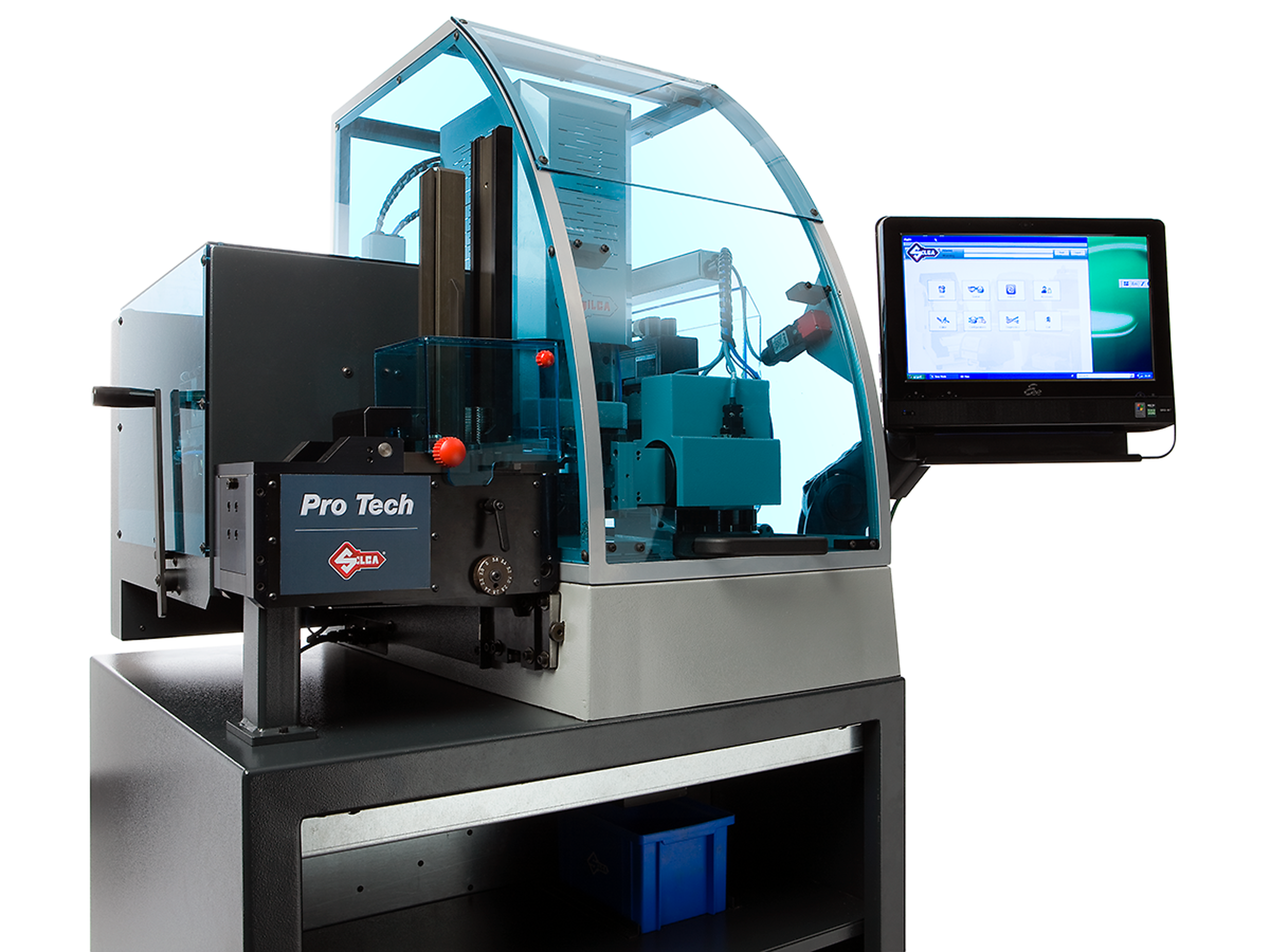

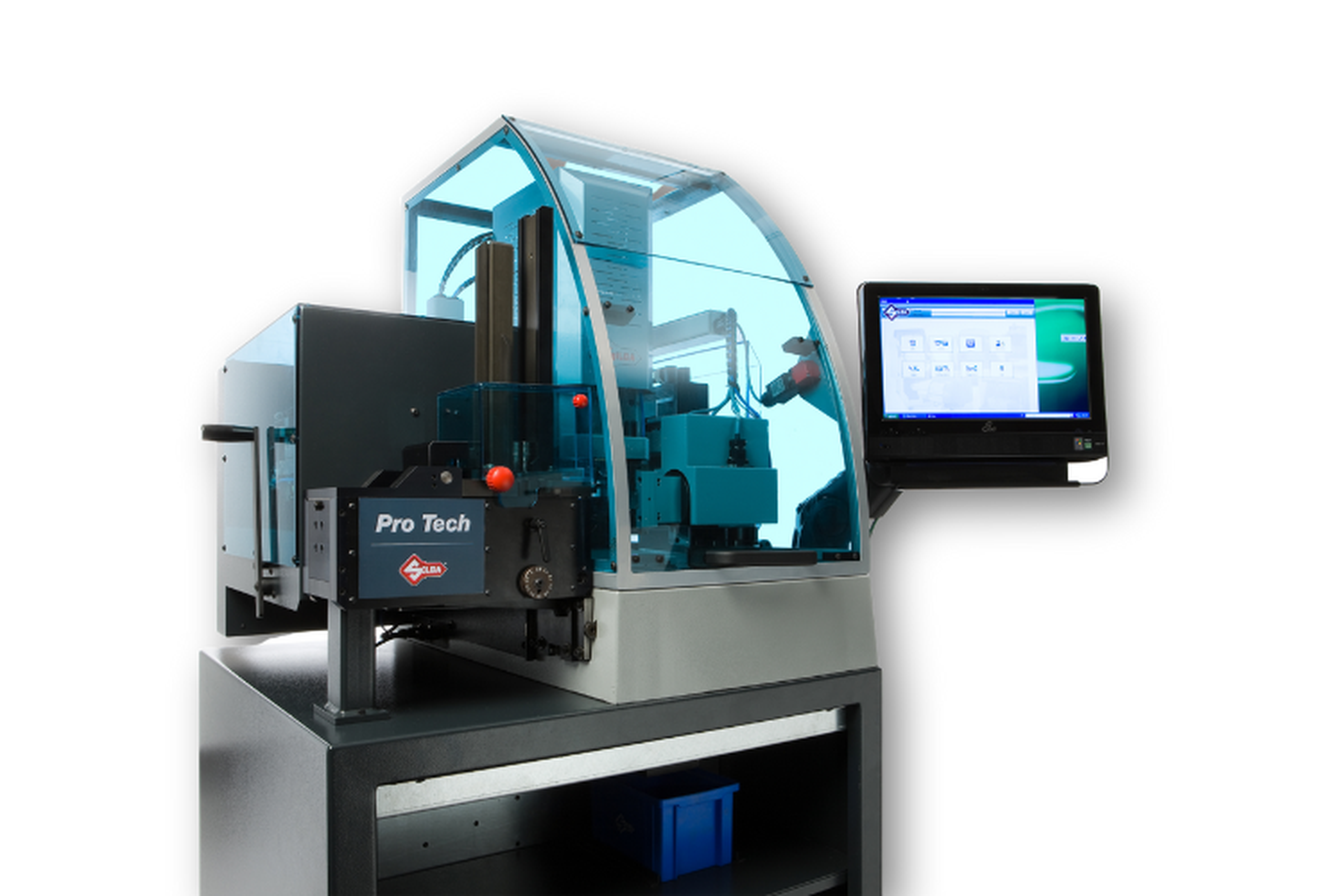

Pro Tech Plus is a semi-industrial machine designed to cut, engrave, and sort different types of keys. It is an ideal solution for Master Key Systems Manufacturers, Specialist Key-Cutting Centers, or Locksmiths that manage high volumes of keys. Pro-Tech Plus is a modular platform that can be customized with several configurations according to specific key systems used by each customer (i.e. edge cut keys or edge cut and dimple/laser). Some systems may require different jaws to perfectly clamp various key profiles. The process is fully automatic and managed by the Pro-Tech Plus software provided. Accessories are available to meet specific requirements. Available only by special order.
Product Details
Features
Pro Tech Plus Software:
Allows flexible use of the functions on the machine and can be updated via the internet Pro Tech Plus can be connected to your company intranet to easily transfer production input to the machine (i.e. process job orders or transfer data) and send e-mail alerts showing job conclusion or job flows as well as importing customer archives
Master key system interface: can import and run MKS file of a Master Key System, customer code table and direct code. Large archive of engraving models with opportunity to customize fonts, characters and position variants
Options include:

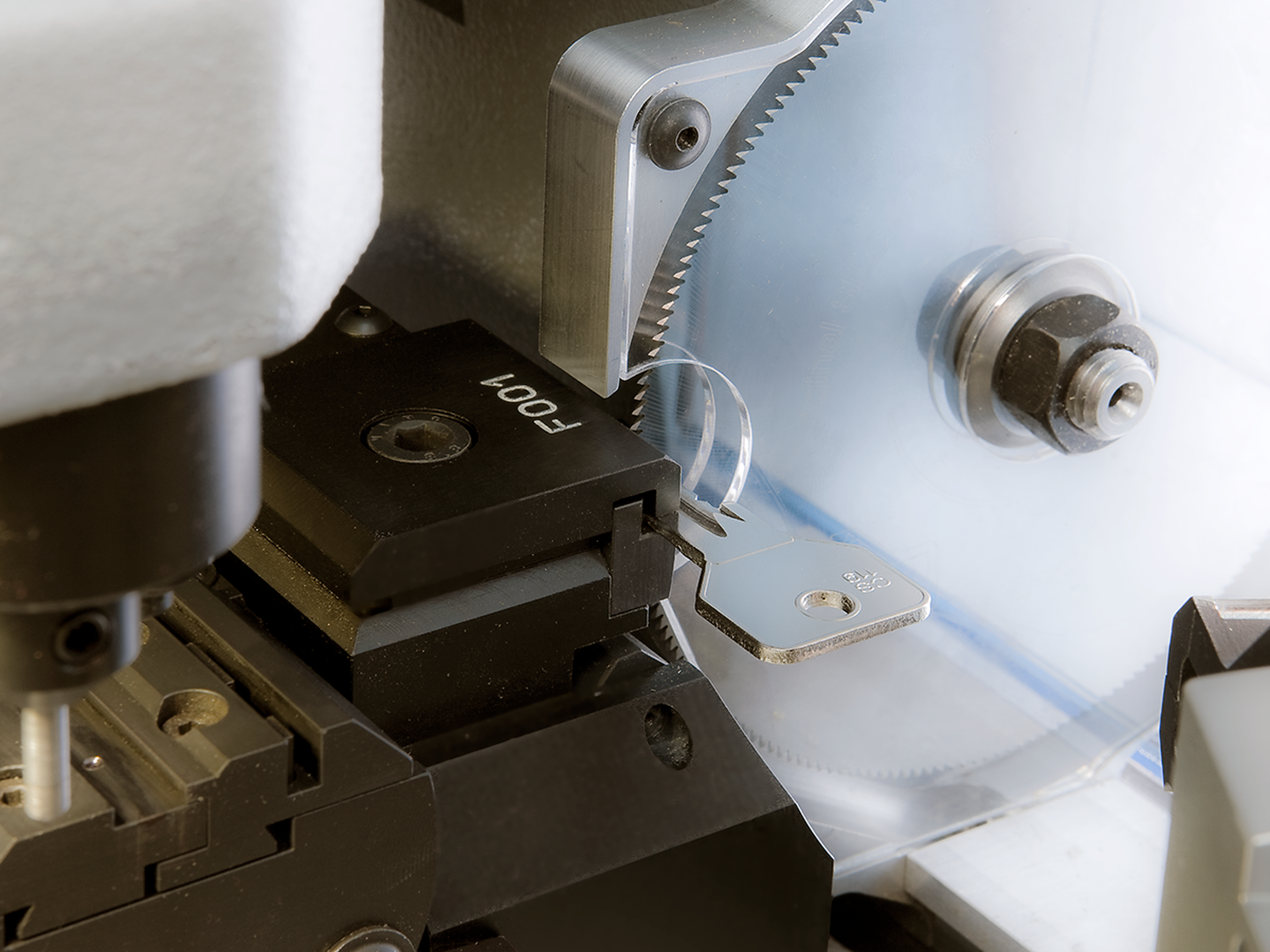

Edge Cut Station – for cutting and engraving of edge cut cylinder keys (single or double sided)

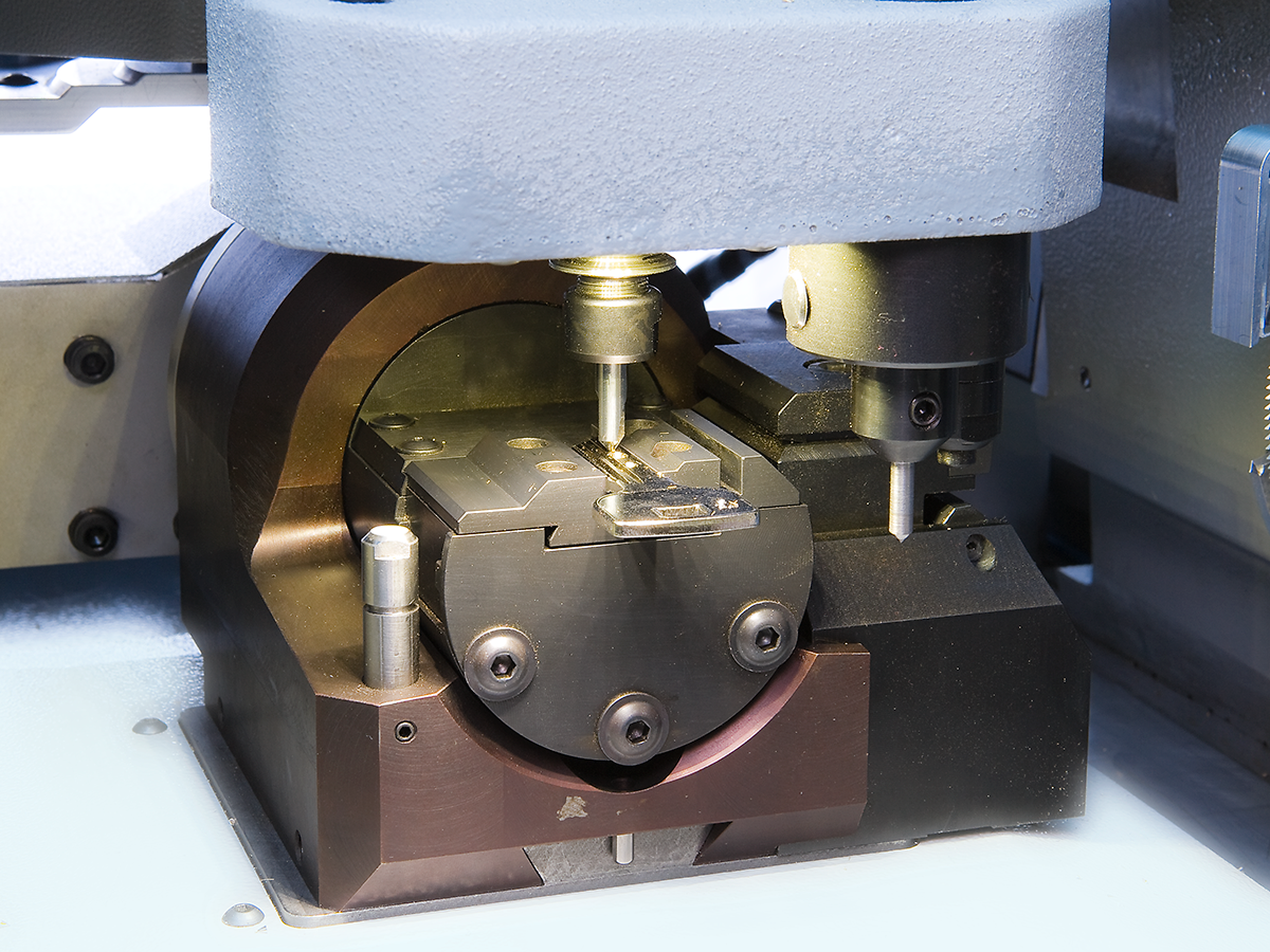

Dimple Station – for cutting and engraving dimple or laser keys (fixed or tilting +/- 45°) Multifunction platform – includes dimple and edge cut stations

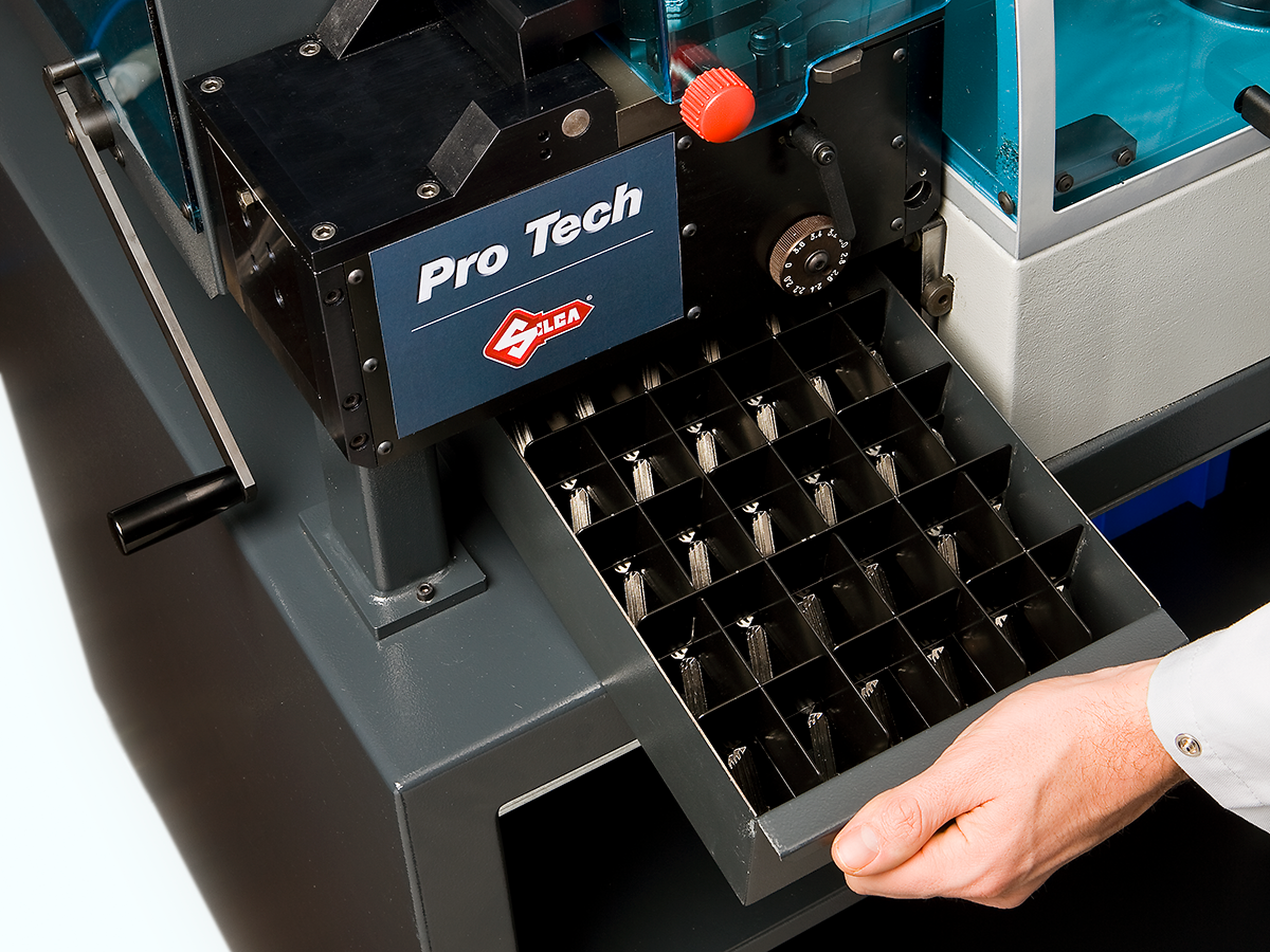

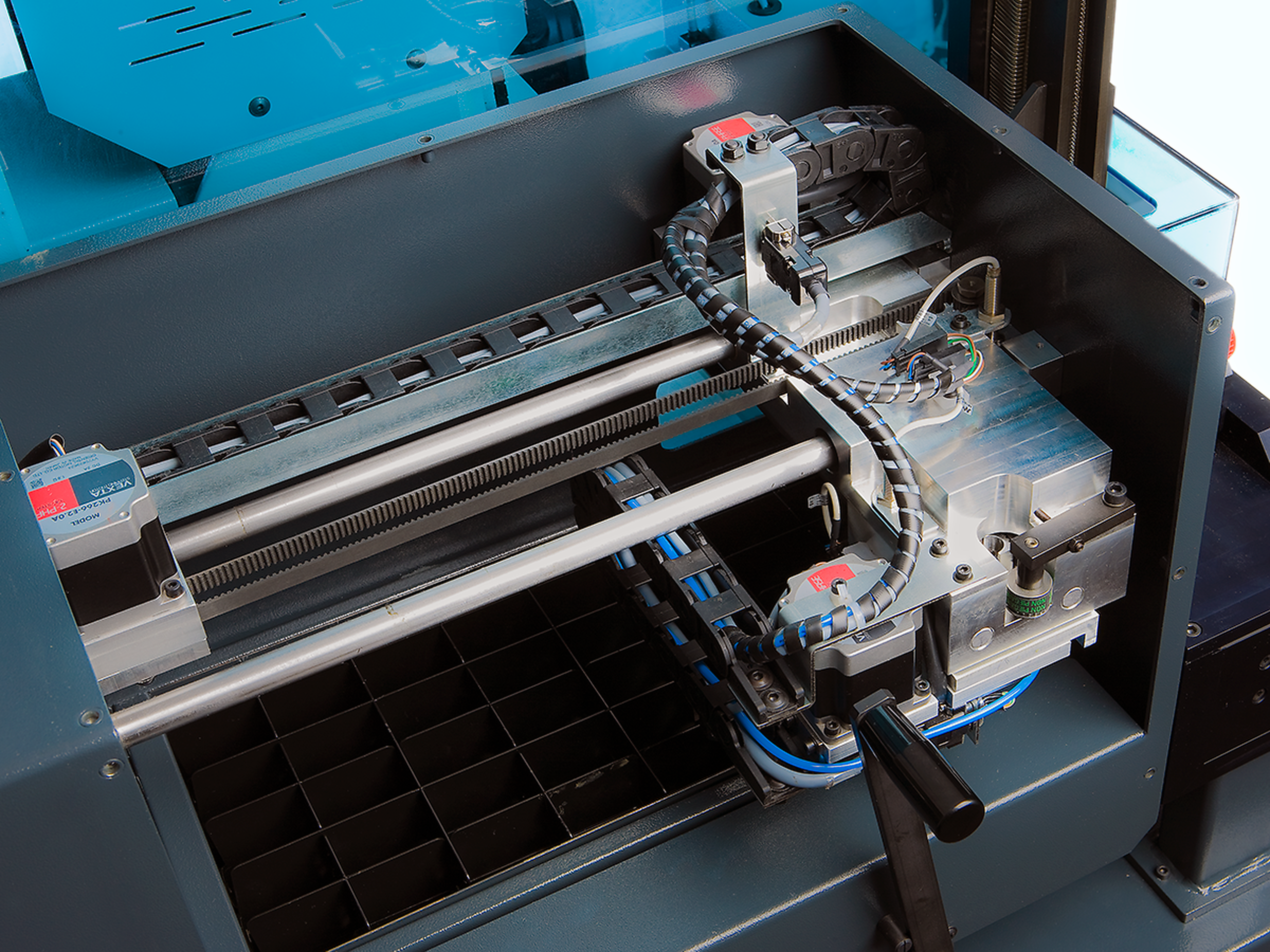

Automatic or manual tool changer unit XY sorting trays (two variants available: 12 cells or 42 cells)
Customer Kit – designed according to specific key systems used, may require different jaws to clamp key profiles.
Precision and Speed: Cutting tolerance on 3 axis (X,Y,Z encoder controlled) +/- .003 mm
Cut speeds
Edge Cut (1 axis, 7 cuts, engraving) = 35 seconds*
Dimple (3 axis, 1+11+11 cuts, engraving) = 80 seconds* (*Variable depending on key system cut)
Component
technical _data
Power Supply: Single phase 200 / 240V
Frequency: 50Hz
Energy Use: 1 KW
Air Compressor: 300 I/min, 50L capacity,(Required Specs) 6-6.5 bar pressure
Dimensions:
Width: 35.43" (900 mm); with PC 41.34" (1050 mm)
Depth: 70.87" (1800 mm)
Height: 31.50" (800 mm)
Weight: 992.08 lbs. (450 kg) - full version M159
