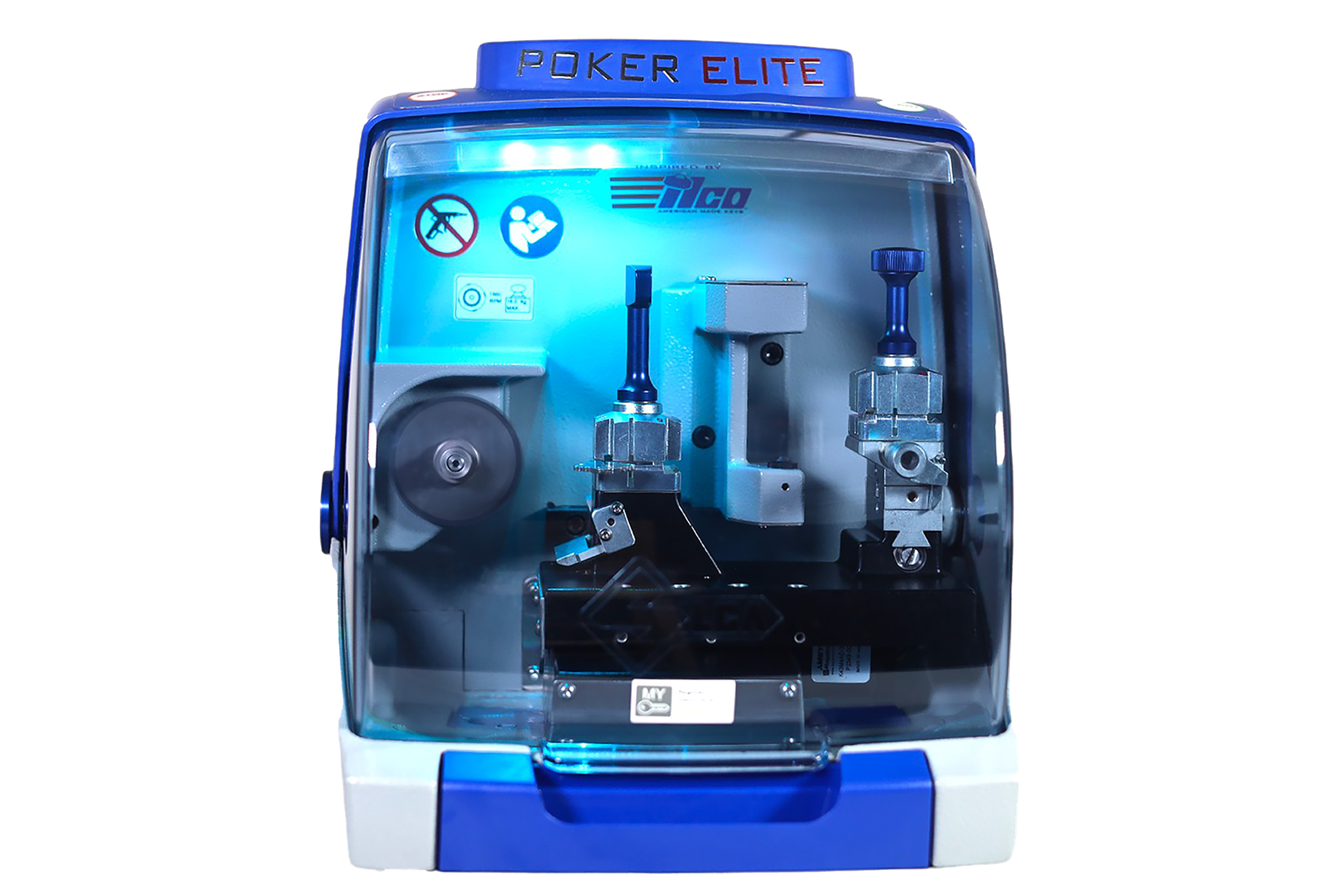

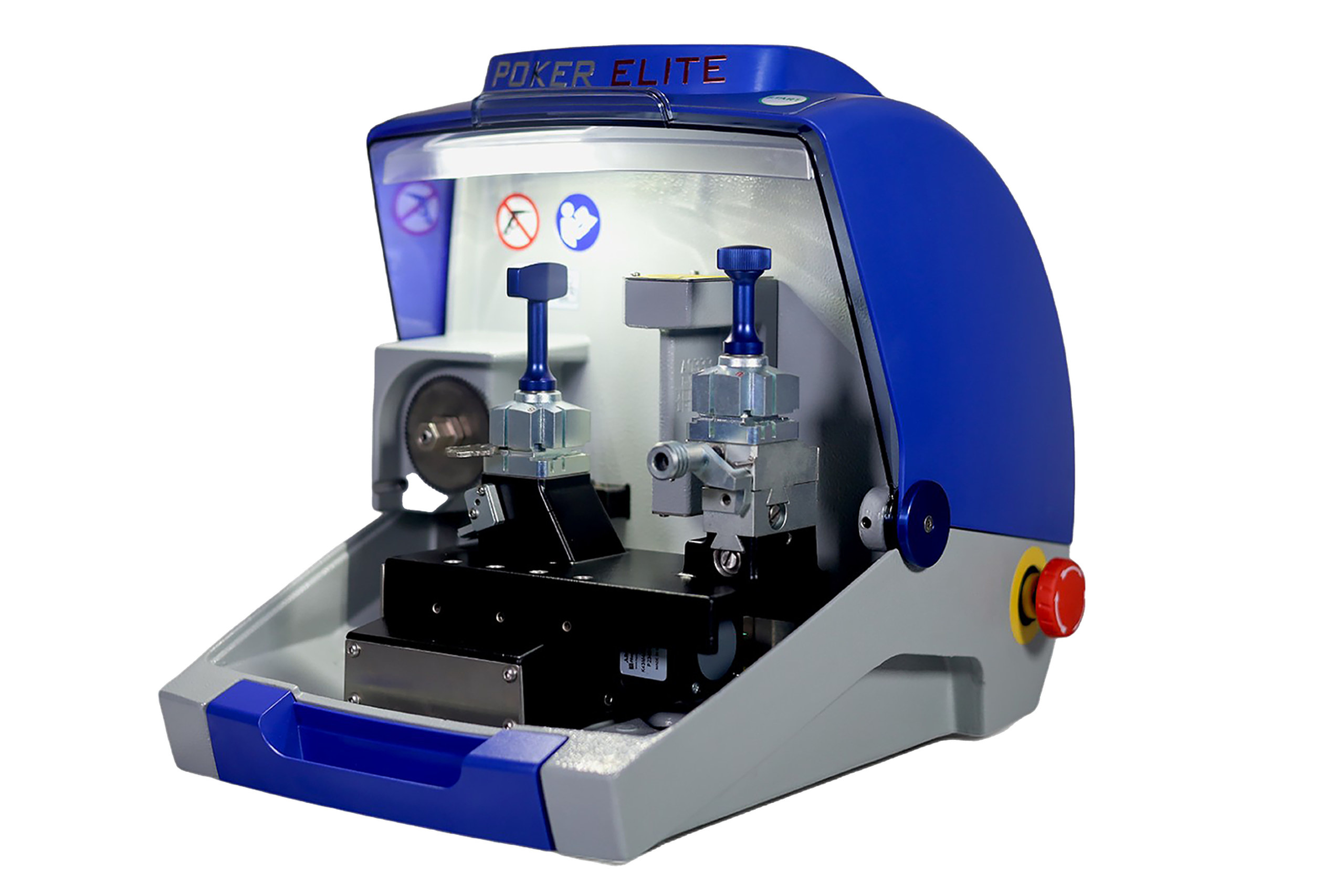

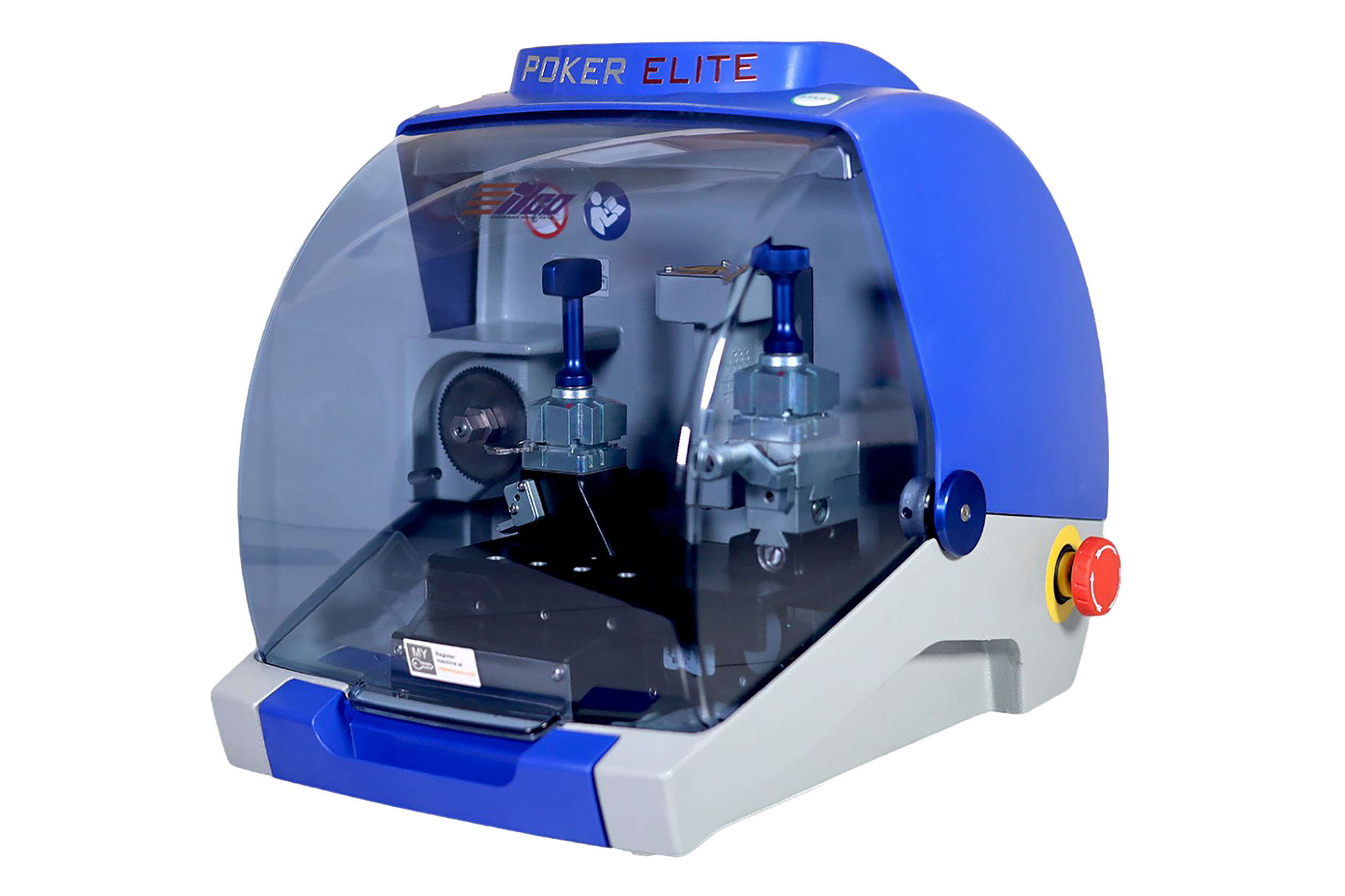

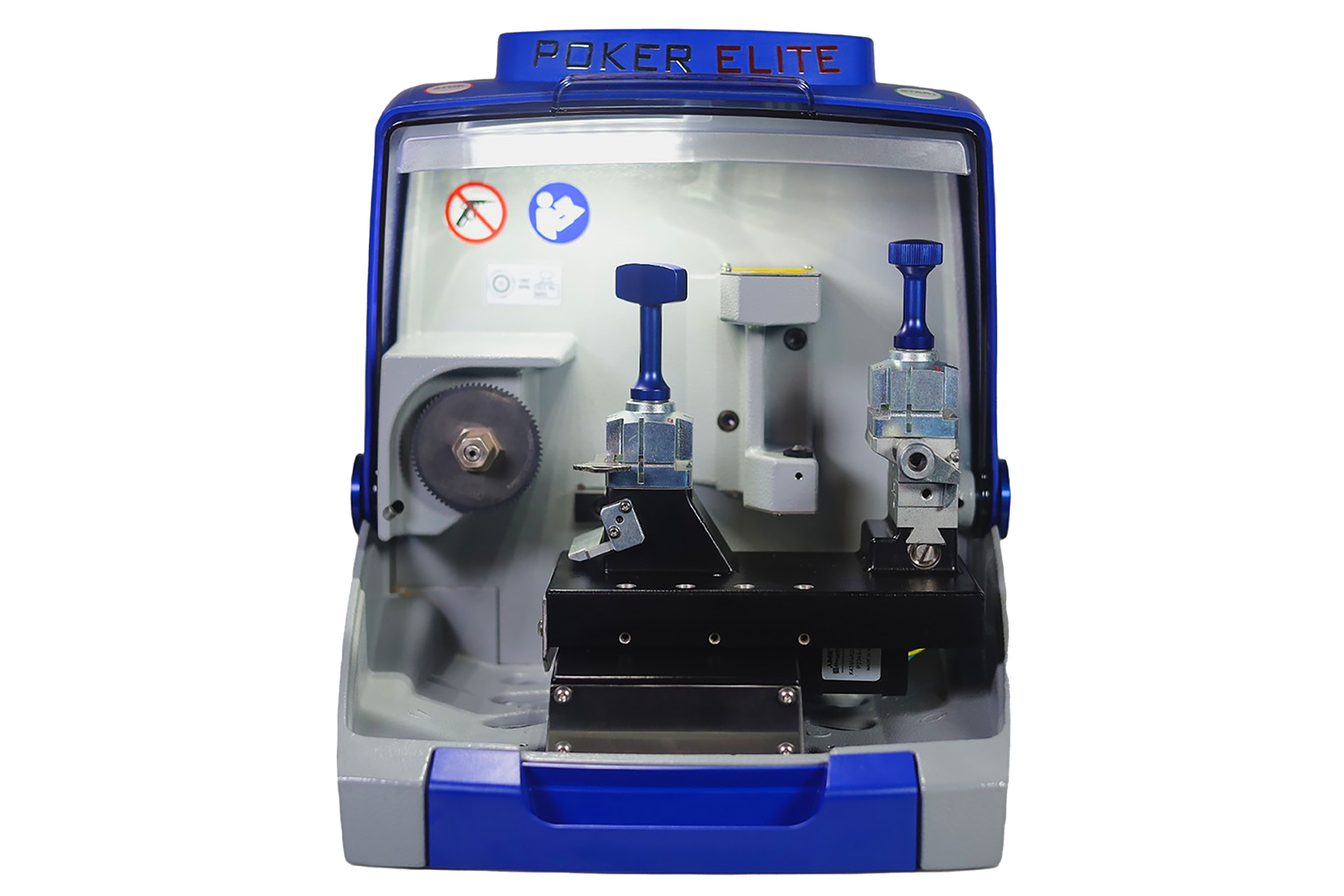

Poker Elite

ilco

Poker Elite is the easy to use electronic key machine for duplicating flat and cruciform keys.

The Poker Elite is a fully automated key cutting machine designed for the duplication of original flat keys for residential and automotive use, accommodating both single and double-sided cuts, as well as cruciform keys with an 'x' type profile. User-friendly in nature, the Poker Elite incorporates an optical reader to ensure precise key cutting. Its compact design promotes an organized workstation, aided by a protective shield that conveniently retracts within the machine.

Read More

Product Details


Features

  • Extremely simple operation. Only two buttons (Start & Stop) utilized to operate the machine.

  • Four-sided clamps have an exclusive rotation system that facilitates the installation of a wide range of keys.

  • Lightweight, portable, and compact design.

  • Ergonomic grips below the machine body makes it easy to lift and transport.

  • Features a laser reader ensuring the customer’s key is read precisely and the duplication is perfect.

  • Tool accessory tray on top of machine for holding various accessories.

  • Comes with a fixing bracket, the ideal solution for locksmiths working out of a van.

  • Protective shield to ensure all shaving are kept inside the machines compartment.

  • Enclosed cutting area makes it easy to keep workbench clean and orderly

  • Removable chip swarf tray below the carriage.


technical _data

  • Power supply: Machine: 24V d.c.- 5,5 Amp. - 130W; Power pack: 90/264V a.c. - 50/60Hz - 220W MEANWELL GST220A24-R7B

  • Cutter motor: 24V d.c.

  • Cutter: U01W hard metal with coating

  • Cutter speed: 1860 rpm

  • Clamps: Sintered four sided rotating clamp allows for easy loading of a variety of flat and cruciform keys,

  • Movement: 2 axes (with special bushes) driven by step motors (on rectified roller guides)

  • Runs: X-axis: 30 mm, Y-axis: 54 mm

  • Dimensions: width: 12.52 in, depth: 16.26 in, height: 13.39 in

  • Weight: 35.27 lbs
