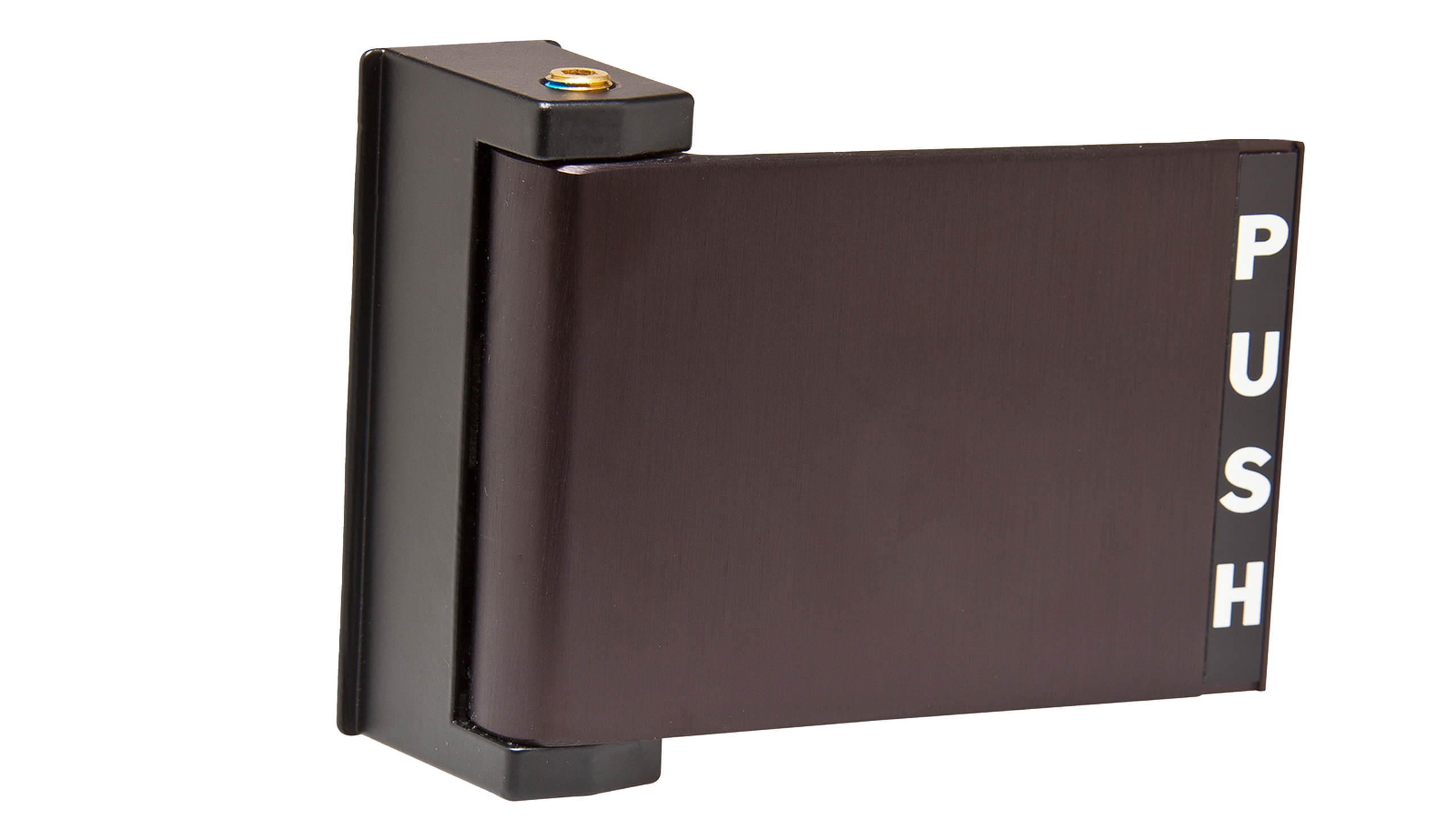

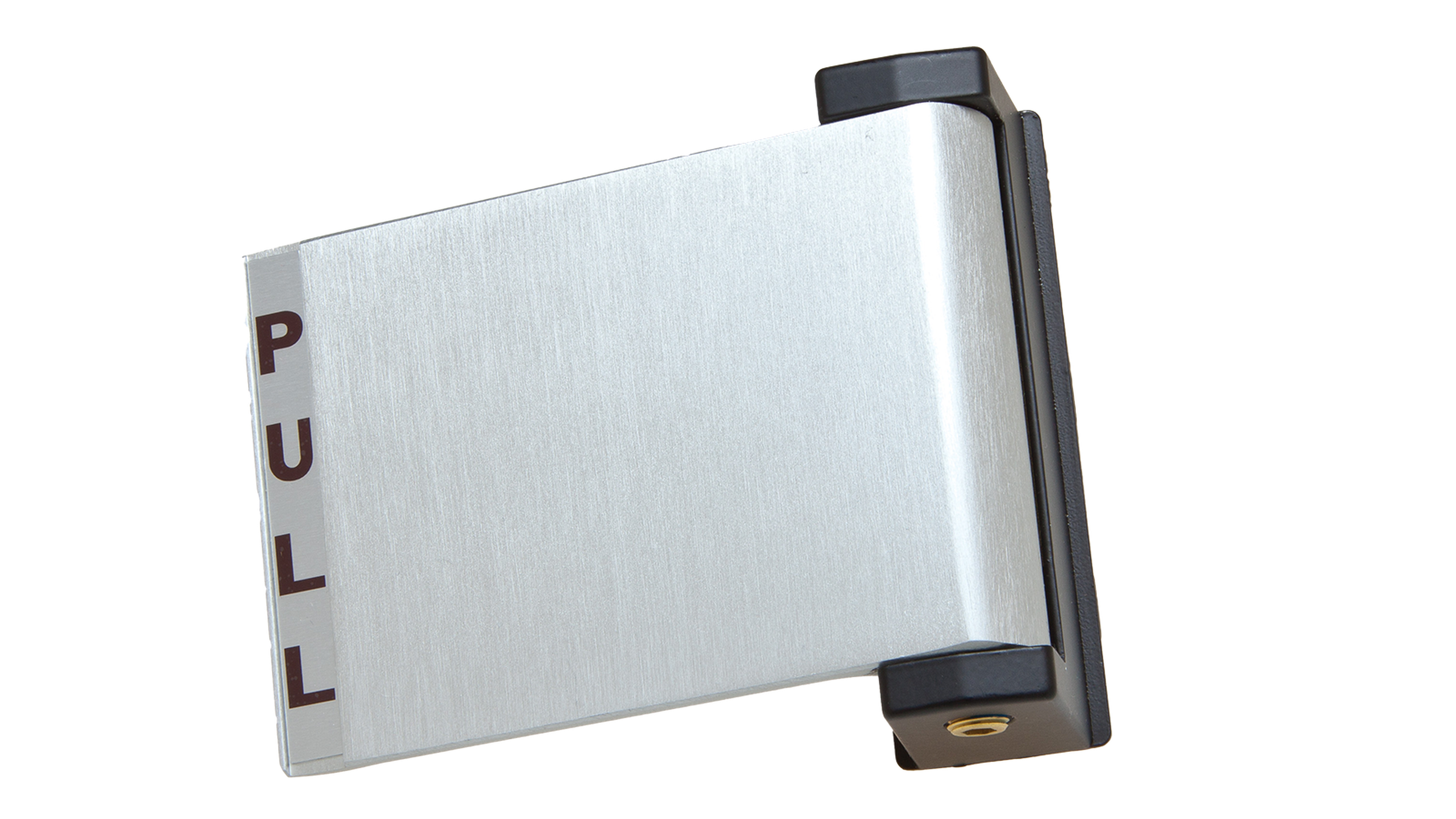

Paddles - 459
An alternate to knob or lever handles. Push or pull in the direction of the door swing to unlatch.
The 459 Series provides the standard paddle function. 457 Series is ergonomic and ADA friendly; providing additional clearance between the handle and door escutcheon.
Product Details
Features
The dogging screw is located on the top of the paddle. The dogging feature is activated by turning the hex key (included) in the escutcheon; holding the paddle down and leaving the door free-swinging.
Corrosion resistant extruded aluminum construction
Finishes
Aluminum
Dark bronze
black
Zinc alloy escutcheon with a black hard coat finish.
Reversible handing using cam plug.
Includes self adhesive Push and Pull decals.
Cycle testing exceeds ANSI Grade 1 standards.

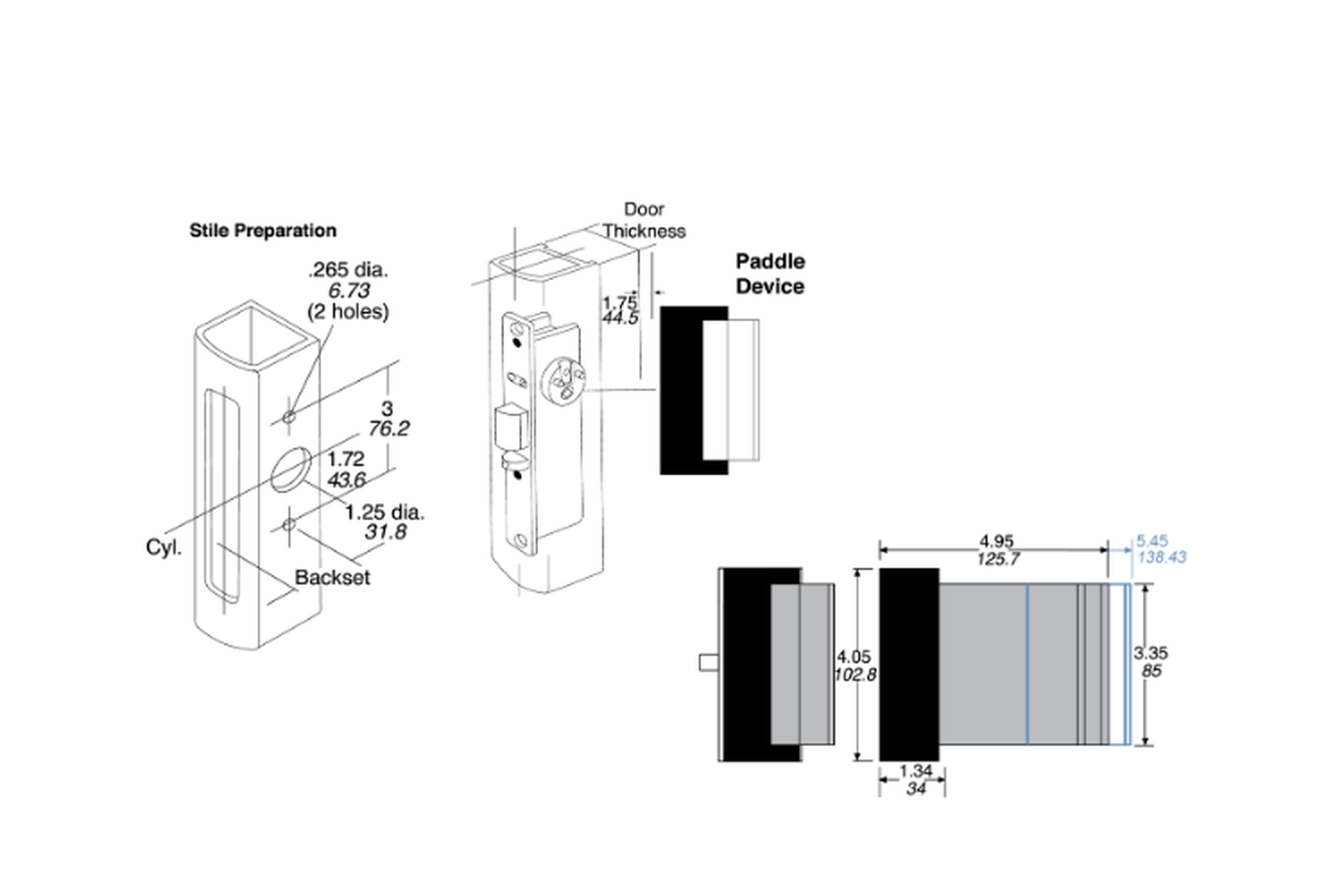

technical _data
Door Thickness: 1¾” (44.45 mm)
Escutcheon: 13⁄8” x 4” (34 mm x 101.6 mm)
