Mortise Cylinder
The Ilco Brass Mortise Cylinder line is a broad selection that allows the flexibility to cover numerous applications. Styles include keyed, turn knob, and dummy.
Ilco Mortise Cylinder are machines from solid brass bar stock, engineered and manufactured to OEM specifications. Master Key and Grand Master Key quality, and are re-keyable to original manufacurers systems. Thebroad selection of modelsand compnents with our line provides you with flexibility to cover numerous applications.
Product Details
Features

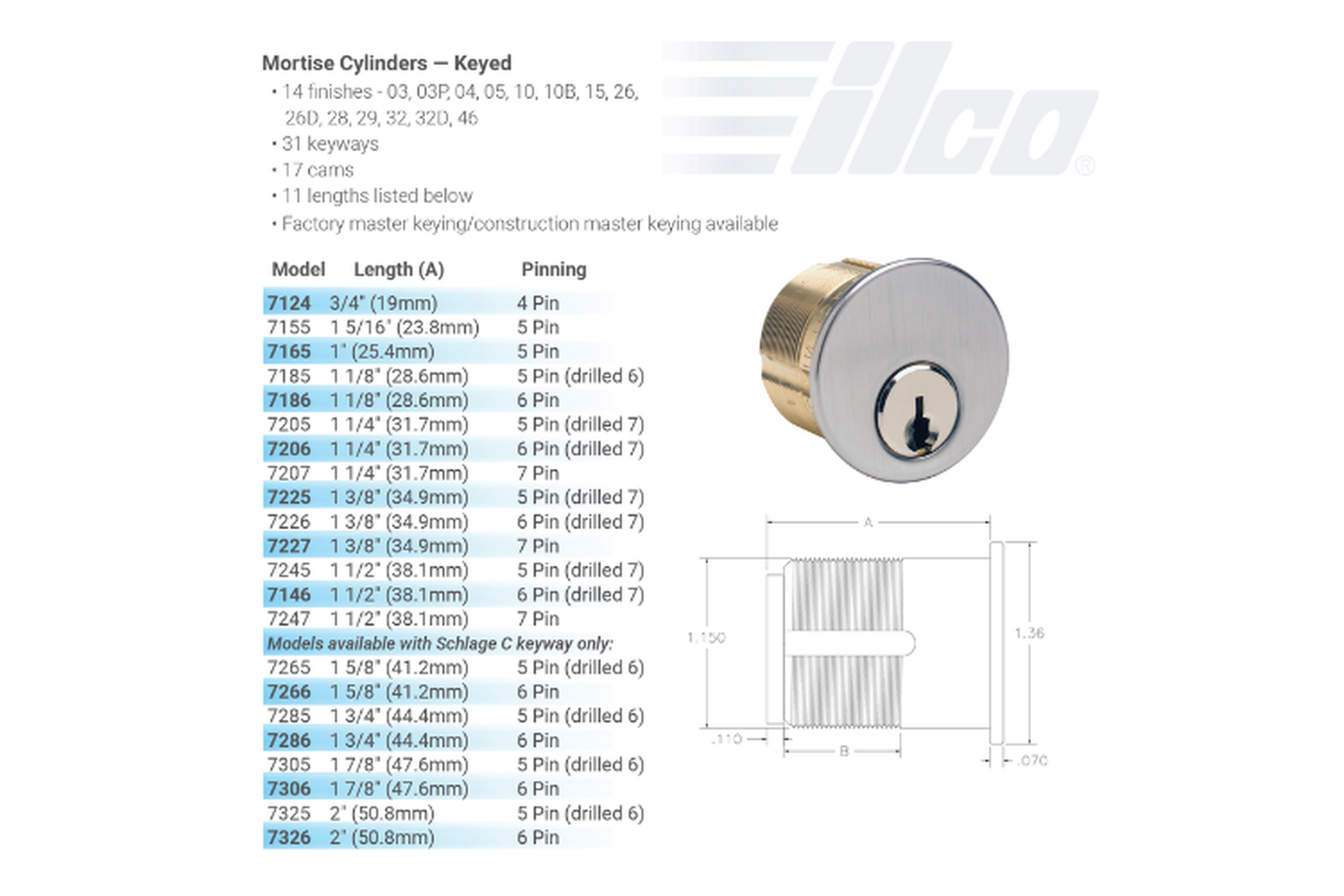

Mortise Cylinders - Keyed
14 finishes - 03, 03P, 04, 05, 10, 10B 15, 26, 26D, 28, 29, 32, 32D, 46
31 Keyways
17 Cams
11 Lengths
Factory master keying/construction master keying available

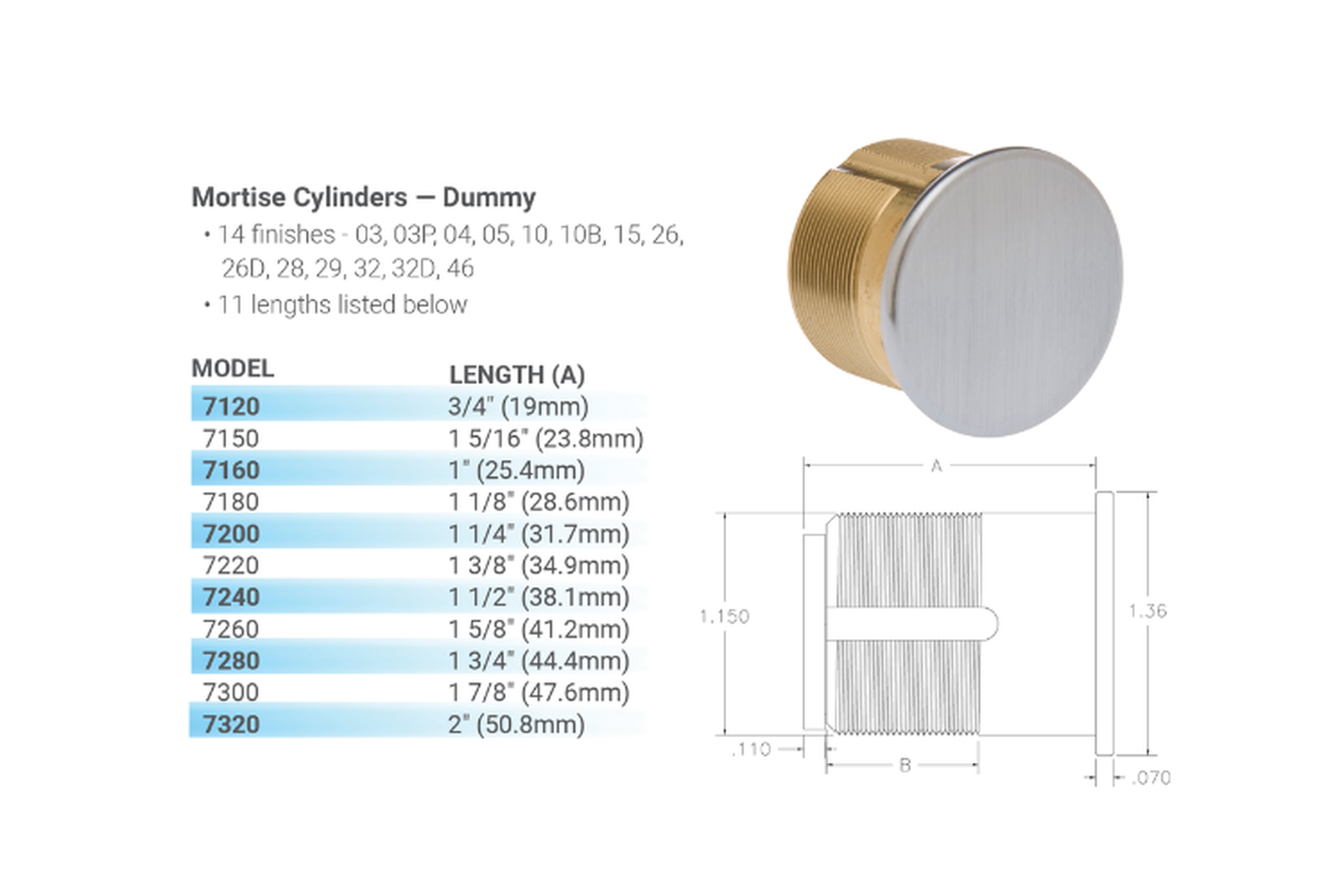

Mortise Cylinders - Dummy
14 finished: 03, 03P, 04, 05, 10, 10B, 15, 26, 26D, 28, 29, 32, 32D, 46
11 lengths

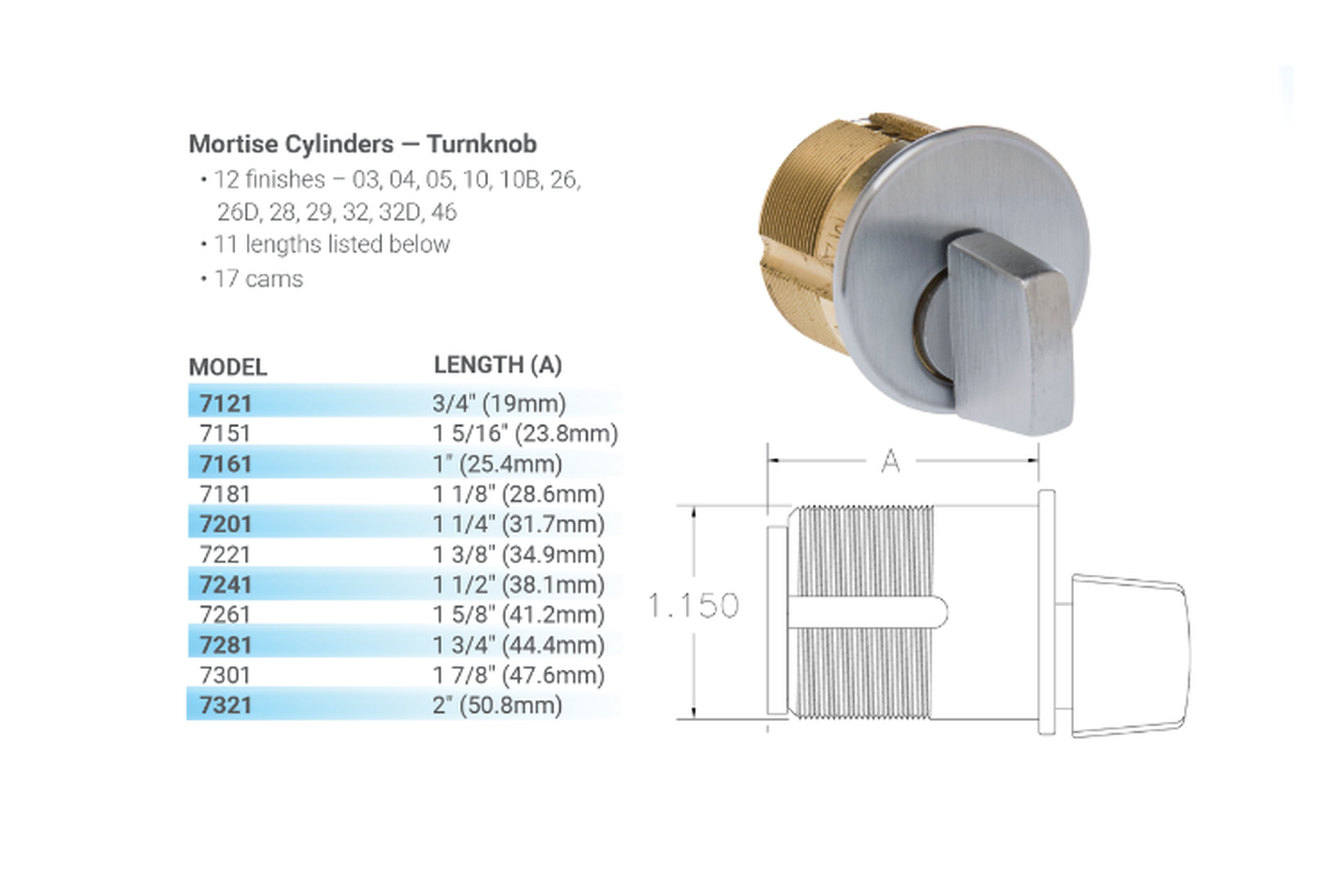

Mortise Cylinders - Turnknob
12 finished: 03, 04, 05, 10, 10B, 26, 26D, 28, 29, 32, 32D, 46
11 lengths
17 Cams

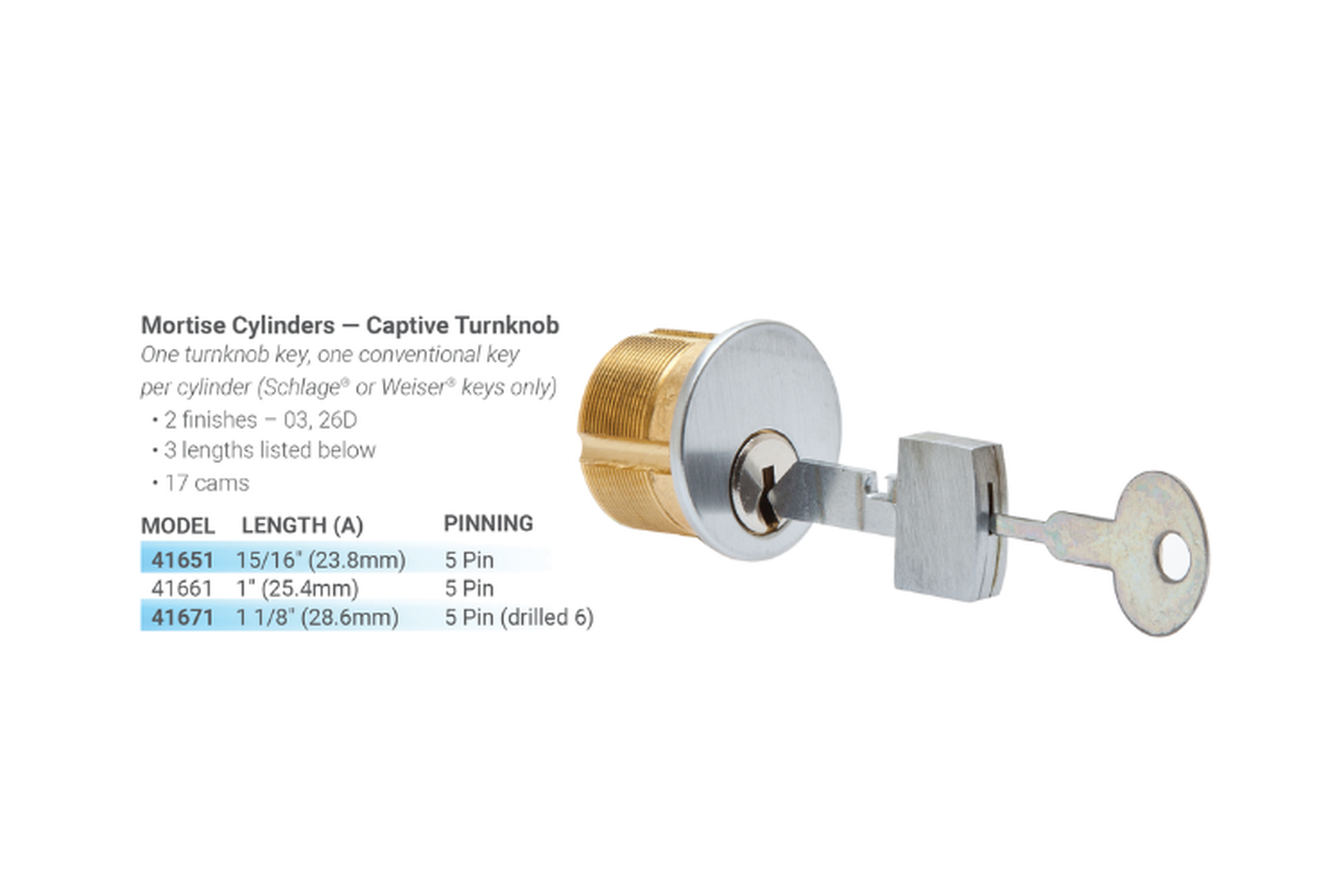

Mortise Cylinders - Captive Turnknob
2 finished: 03, 26D
3 Lengths
17 Cams

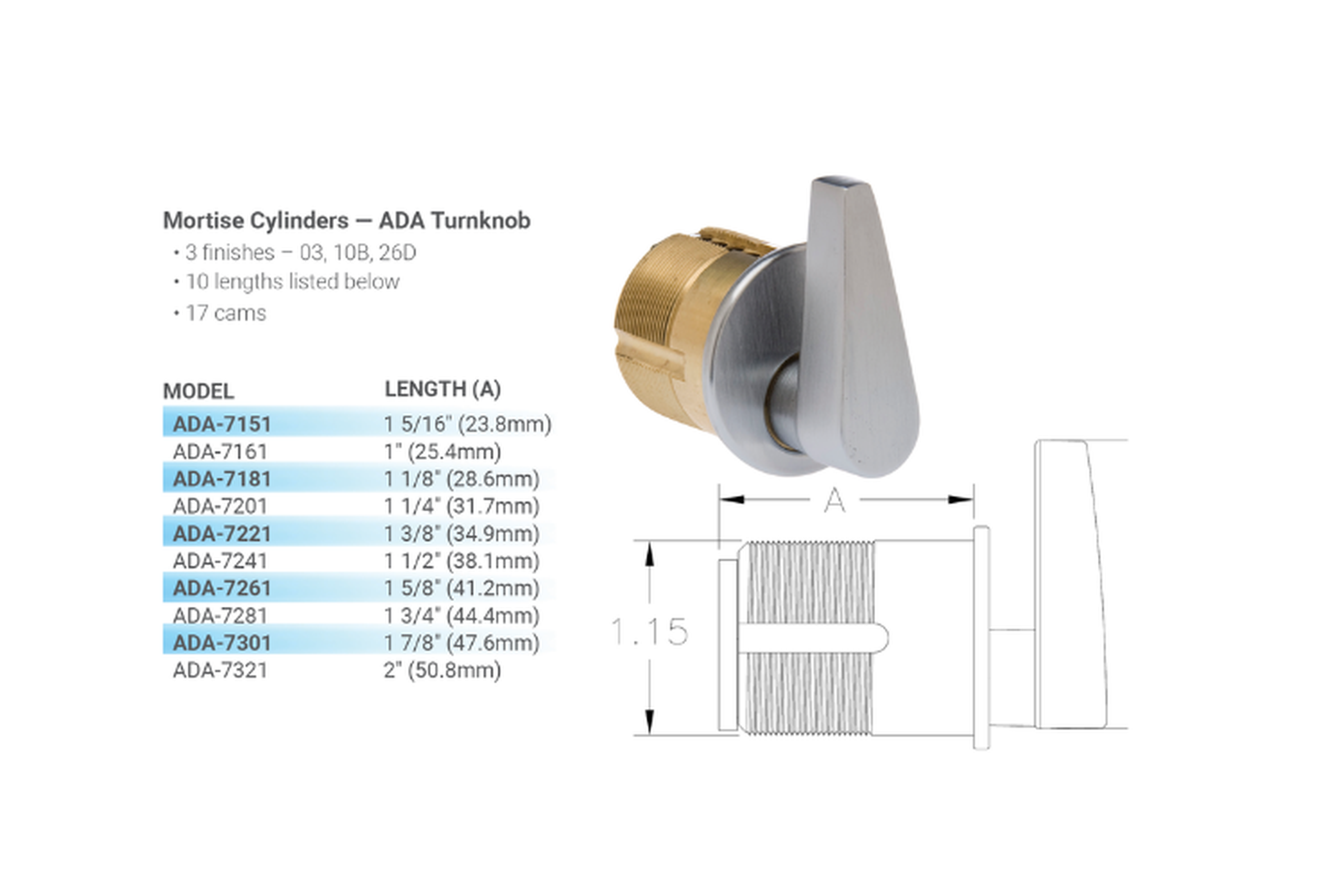

Mortise Cylinders - ADA Turnknob
3 finished: 03, 10B, 26D
10 Lengths
17 Cams
