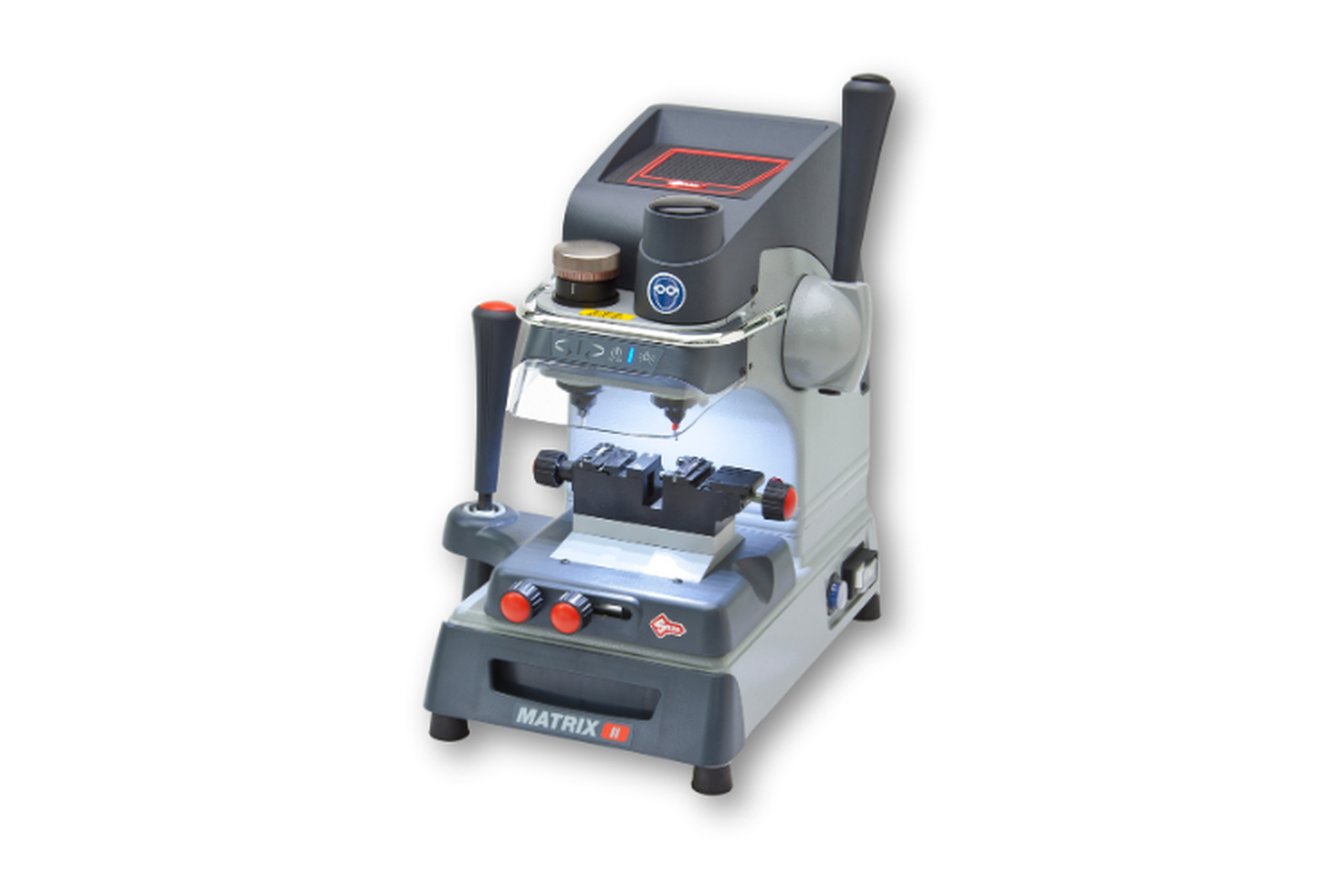

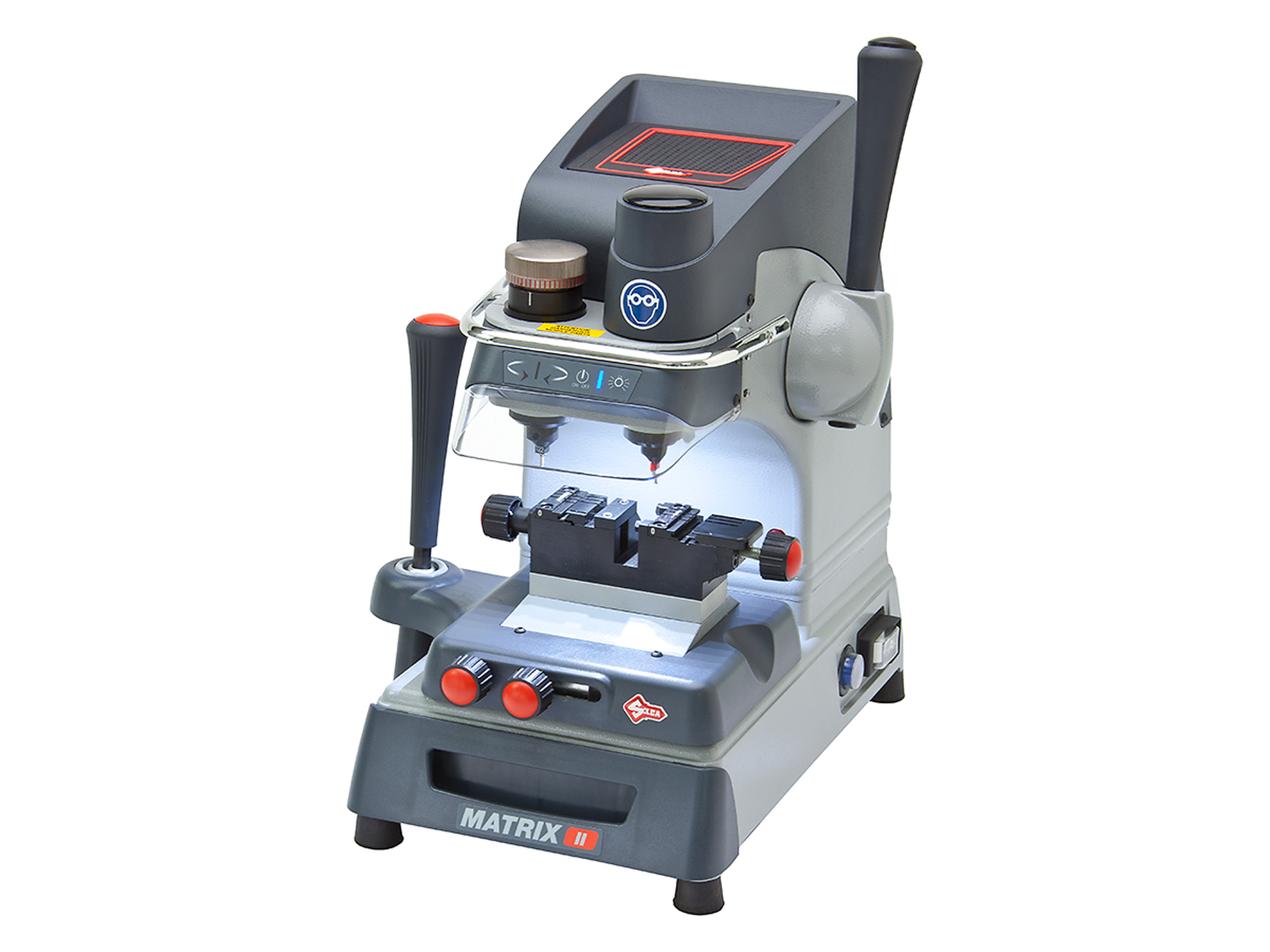

Matrix II
The Matrix II is designed to duplicate laser keys.
The Matrix II is a high-performance machine that provides precision duplication of laser-style keys. The features of this premium model include LED lighting and electromechanical calibration. The compact design and weight make this model suitable for either counter or mobile use. The "premium" machine for the duplication of high-security laser and Tibbe® style keys. The line of Matrix key machines has been the trusted laser key duplicating machine for many years. With the Matrix II, you will find the same rugged construction combined with many user-preferred features that have made the Matrix the professional's choice for high-security key duplication.
Product Details
Features
Electromechanical calibration (green light and audible sound indicate completed calibration)
Convenient, manual power switch for LED light above work area
Wide transparent safety shield minimizes exposure to moving parts and chips during operation.
Convenient built-in storage tray on hood of machine for key blanks or tools
Z-axis locks in place with twist of lever
Separate push button micro-switch to activate cutter
Z-axis lever controlled cutter motor for added safety
Quiet cutting cycle
HSS (High Speed Steel) cutters and tracers improve cutter life.
Cutter and tracer feature colored plastic collars for easy identification.
Easy access tool and accessory storage drawer
Ergonomic designed levers require minimal effort to operate
Spring loaded table applies steady cutting pressure
Replaceable jaw surface plates provide an economical repair (normal wear) solution
technical _data
Specifications:
Width: Footprint 12.2” (310 mm), 15.75” (400 mm) including side lever
Height: 18.5” (470 mm)
Depth: 15.75” (400 mm)
Weight: 54.23 lbs. (24.6 kg)
Voltage: 100/120V-50/60Hz, 2.3 Amp, 220 Watt
Motor: Single Phase 1 speed; 6000 Rpm Replacement Parts:
Standard Cutter: F22 D739973ZB High Speed Steel (HSS);
Tool Speed: 6,000rpm
Standard Tracer: T22 D739974ZB
Optional Accessories:
BD0722XXXX Mercedes® Clamp Adapter set
BD0723XXXX VW®/Audi® Clamp Adapter set
BD0725XXXX Lexus®/Toyota® Wallet Key Adapter Ford® and Jaguar® Tibbe® and other Laser/Sidewinder code attachments are also available.
