Key-In-Knob
This line features Key-In-Knob / Deadbolt / Lever Cylinders for numerous applications including the ten most popular.
All cylinders are master key and grand master key compatible to original manufacturers systems. This quality line of cylinders is produced from solid brass bar stock.
Accessories are also available.
For the most up to date information and stock list, refer to the Brass Cylinder, Security Hardware Suggested List Price Book.
Product Details
Features

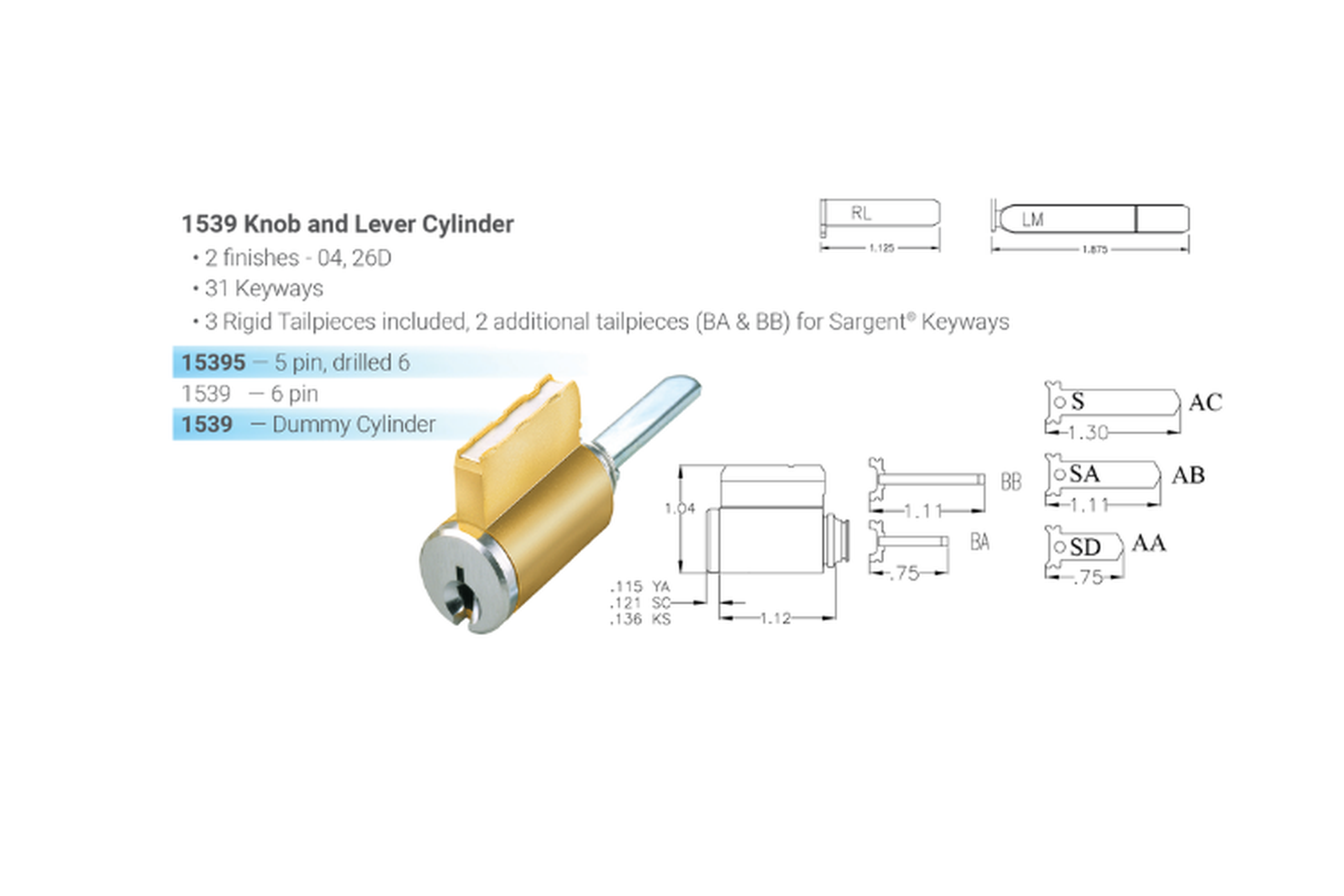

Key-In-Knob / Lever Universal Cylinder - 1539 Series
Grade 1 & 2 Knob and Lever Locksets
04 and 26D Finishes
Arrow Style Snap-On tailpiece
Available 5 (drilled 6 pin) and 6 pin
Grade 1 and 2 knob cylinder locksets and leverset

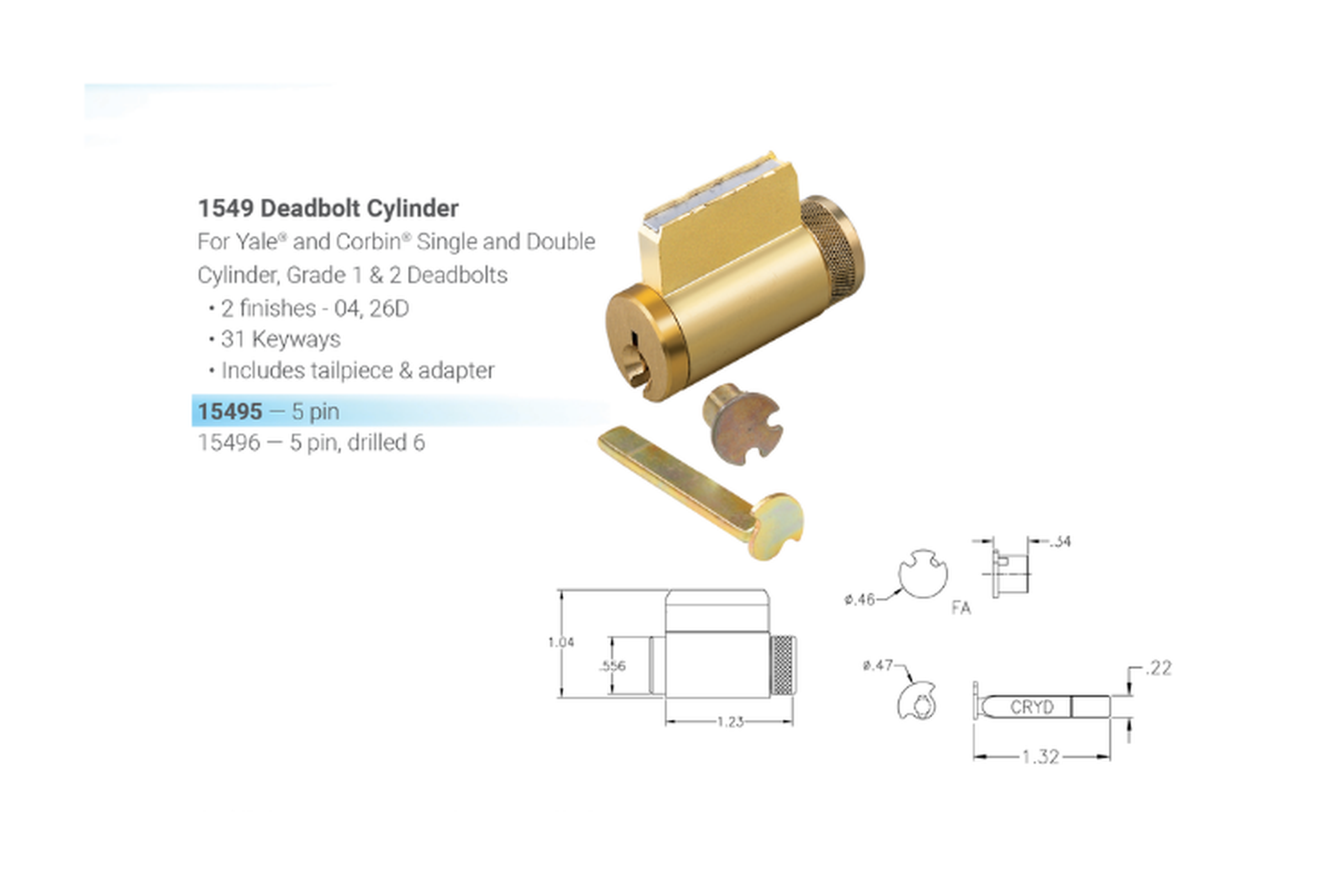

Key-In-Deadbolt Cylinder - 1549 Series
Corbin Russwin / Yale Cylindrical Deadbolts
31 keyways
04 and 26D Finishes
Available 5 (drilled 6 pin) and 6 pin
Fits single and double, grade 1 & 2 cylindrical deadbolts
Screwcap Tailpiece / Plug Retainer
Key-In-Deadbolt Cylinder - 1568 Series
Emtek Knobs, Levers and Cylindrical Deadbolts
32 keyways
04 and 26D Finishes
Available 5 pin
Fits Emtek Cylindrical Deadbolts - single and double, knob and lever
Screwcap Tailpiece / Plug Retainer

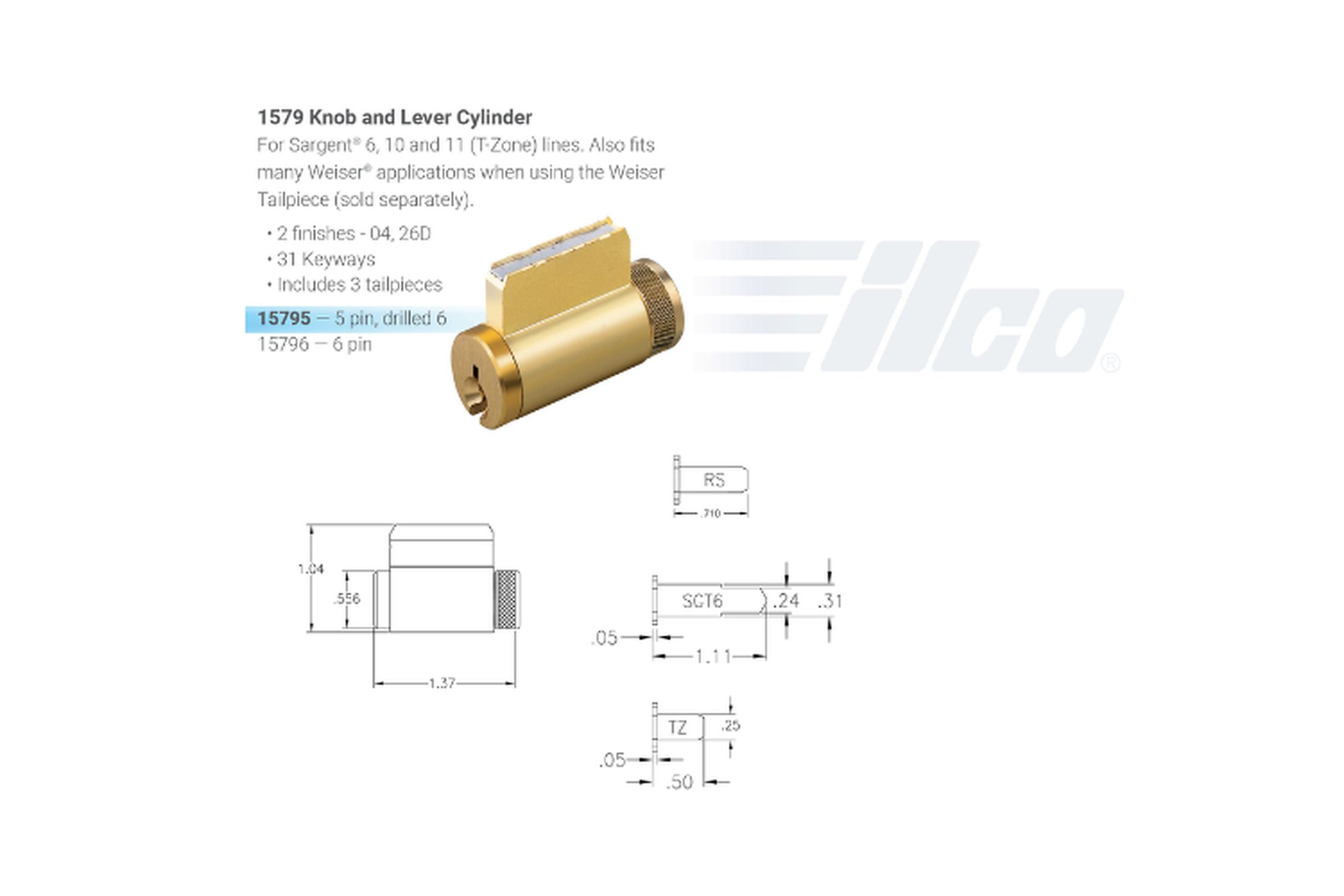

Key-In-Deadbolt Cylinder - 1579 Series
Sargent Key-In-Knob / Lever, Weiser Deadbolts & Power Bolt
31 keyways
04 and 26D Finishes
Available 5 (drilled 6 pin) and 6 pin
Sargent 6 Line Knob, 10 Line Lever, 11 Line (T-Zone) Lever
Weiser Single deadbolt and Power Bolt
Screwcap Tailpiece / Plug Retainer

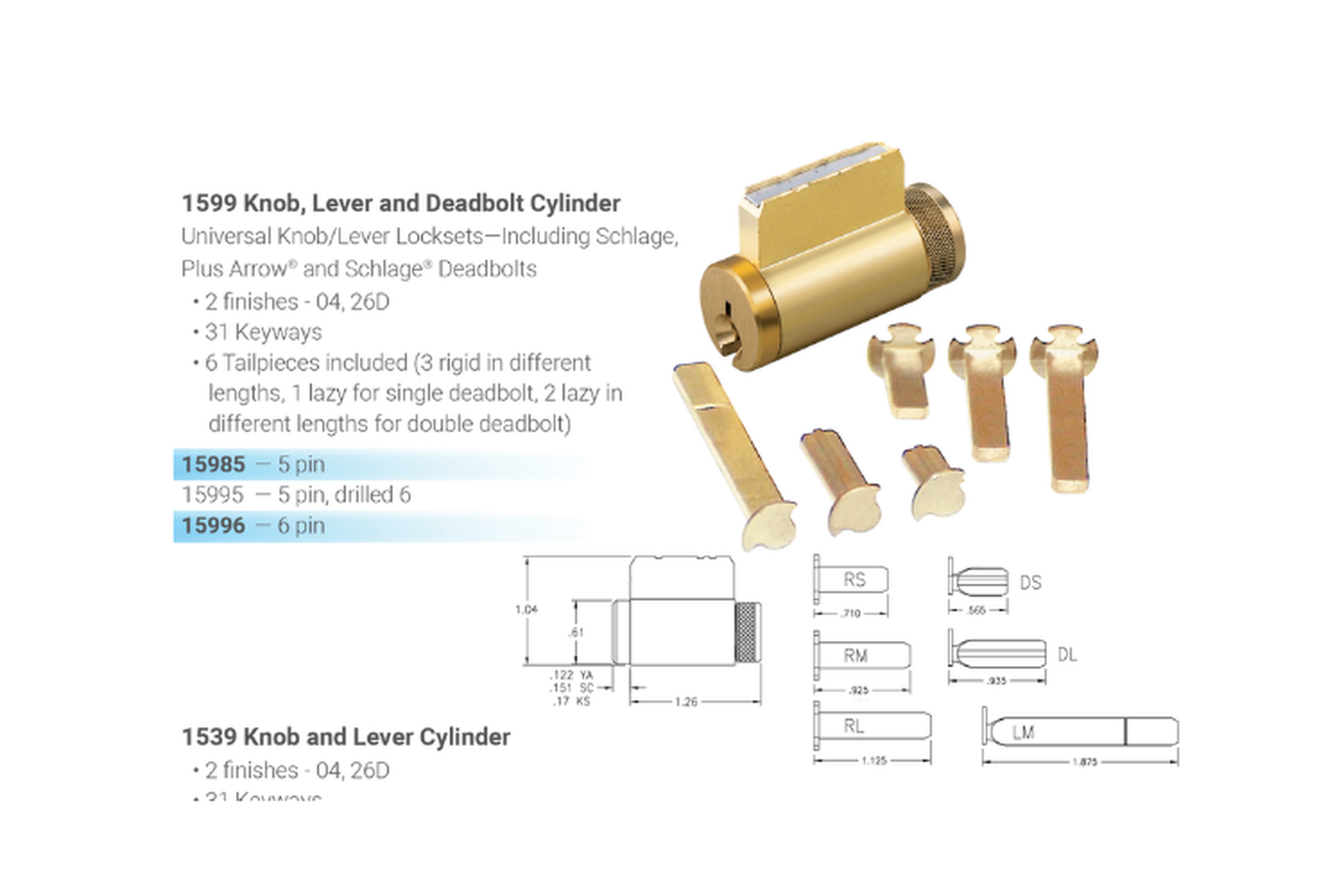

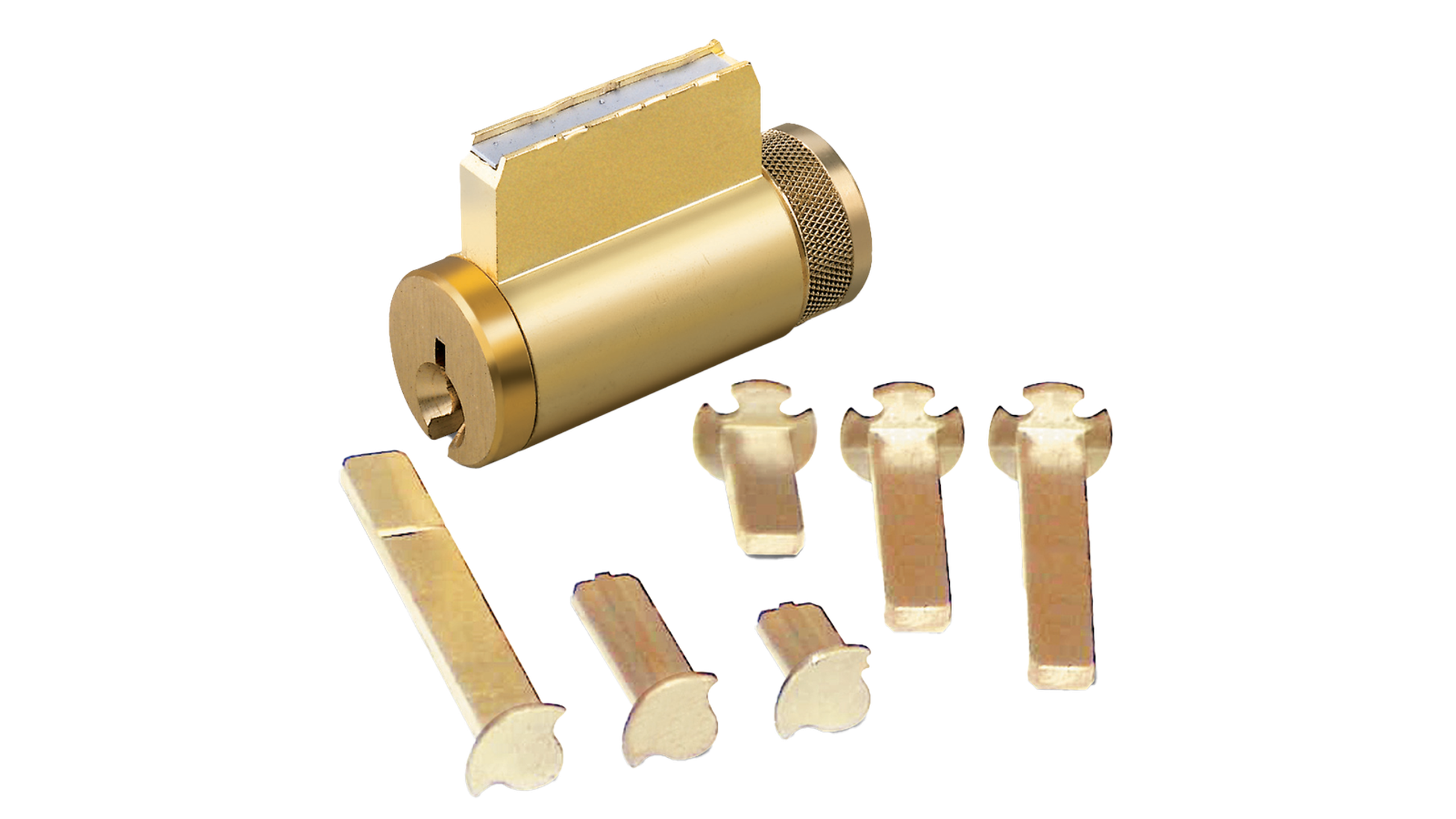

Key-In-Knob / Deadbolt Combination Cylinder – 1599 Series
Knob/Lever Locksets plus Arrow & Schlage Deadbolts
31 keyways
04 and 26D Finishes
Available 5 (drilled 6 pin) and 6 pin
Screw Cap Retainer
Grade 1 and 2 Knob Lock & Lever Locksets
Arrow D,E,F and K Series
Schlage B100,B200,B400 and H Series
CL3900 Corbin Lever with tailpiece (optional)
