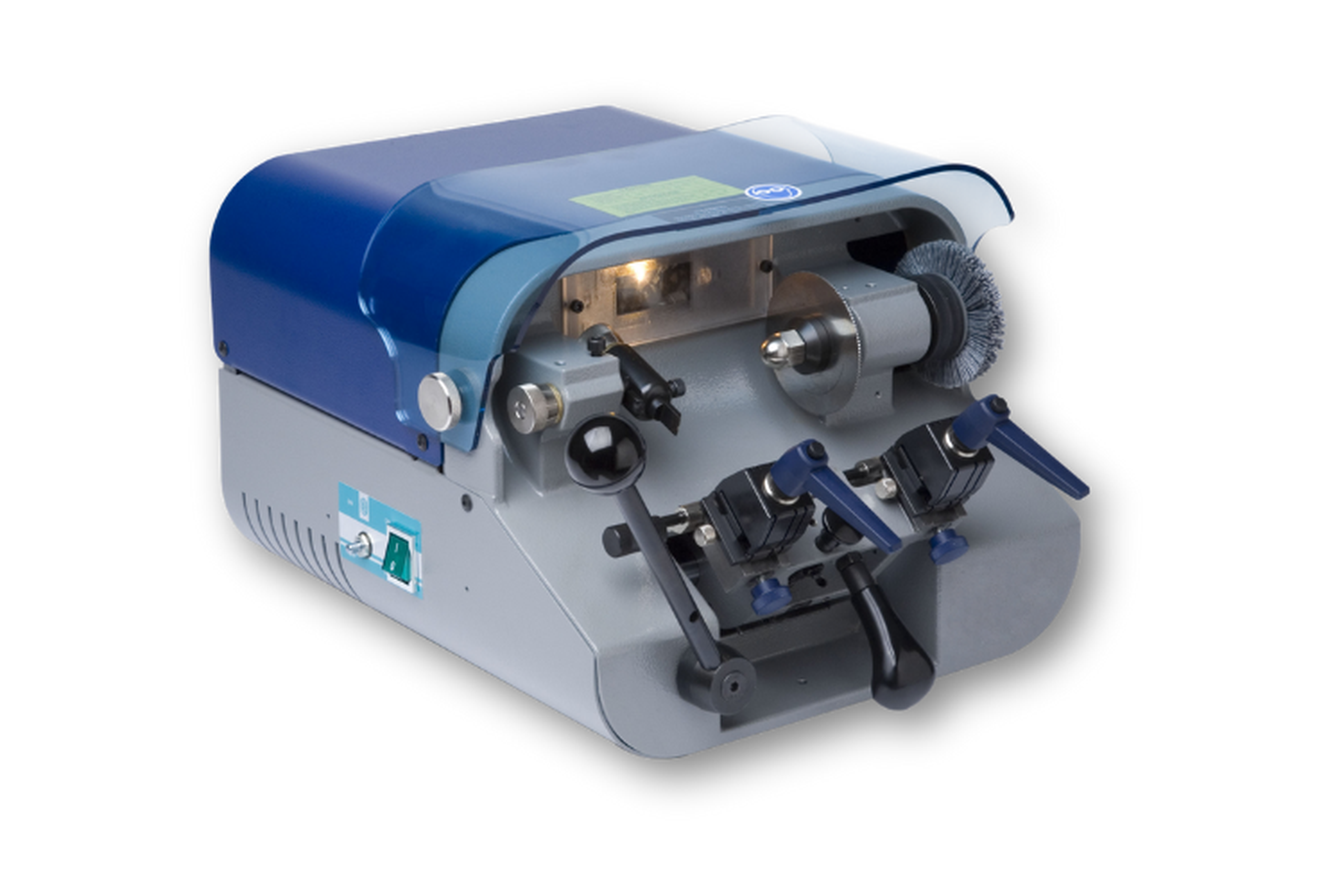

KD50C
The KD50C is designed to duplicate edge cut automotive, residential and commercial keys.
An operator's "dream machine", the KD50C is superbly engineered with numerous features to deliver quick results with exceptional precision and accuracy. With the KD50C just a flip of the carriage lever lets the operator duplicate a key with unbelievable speed and ease in as little as 5 seconds. This model duplicates standard-type residential, commercial, padlock, and automotive keys quickly and accurately – without adapters! The KD50C is loaded with features that make it the "machine of choice", regardless of operator experience.
Product Details
Features
Wide spacing between vise jaws accommodates longer blade keys and large bow (head) keys
Precision machined, 2-position vise jaws are designed to securely grip virtually any cylinder key…including double sided “thin blades”
Convenient “ratchet style” vise jaw handles
Cutter motor activation automatically controlled by raising and lowering the carriage
Spring loaded key gauge automatically releases as the carriage is raised
Spring loaded carriage provides consistent cutting pressure thus reducing the potential for mis-cuts; ideal for locations with multiple operators
Micrometer regulation knobs for depth and spacing adjustments; fast, easy, and precise
Sleek body style but with heavy-duty construction that reduces vibration and noise
Cobalt steel cutter ensures smooth, clean cuts and extended service life
Bright built-in light illuminates working area
On/Off switch and deburring brush button conveniently located on the left side for safe and easy access
technical _data
Specifications:
Motor: 110V standard; 1/4 Hp, 1725 rpm
Dimensions:
Width: 14'' (36 cm)
Deep: 171⁄2'' (45 cm)
Height: 111⁄2'' (29 cm)
Weight: 61 lbs. (27.7 kg)
Meets OSHA and CSA/NRL/C*
Requirements Replacement Parts:
Cutter: KD50A (cobalt steel milling cutter)
Brush: KD50A-102B Jaw: KD50-J
Guide: KD50A-89A Light Bulb: KD50-18
Service Bar: KD50-111
Service Pins: KD50-112 (1.2mm), KD50-113 (1.7mm)
Functionality
Specifications Motor: 110V standard; 1/4 Hp, 1725 rpm Dimensions: 14''W x 171⁄2''D x 111⁄2''H (36 cm x 45 cm x 29 cm) Weight: 61 lbs. (27.7 kg) Meets OSHA and CSA/NRL/C* Requirements Replacement Parts Cutter: KD50A (cobalt steel milling cutter) Brush: KD50A-102B Jaw: KD50-J Guide: KD50A-89A Light Bulb: KD50-18 Service Bar: KD50-111 Service Pins: KD50-112 (1.2mm), KD50-113 (1.7mm)
