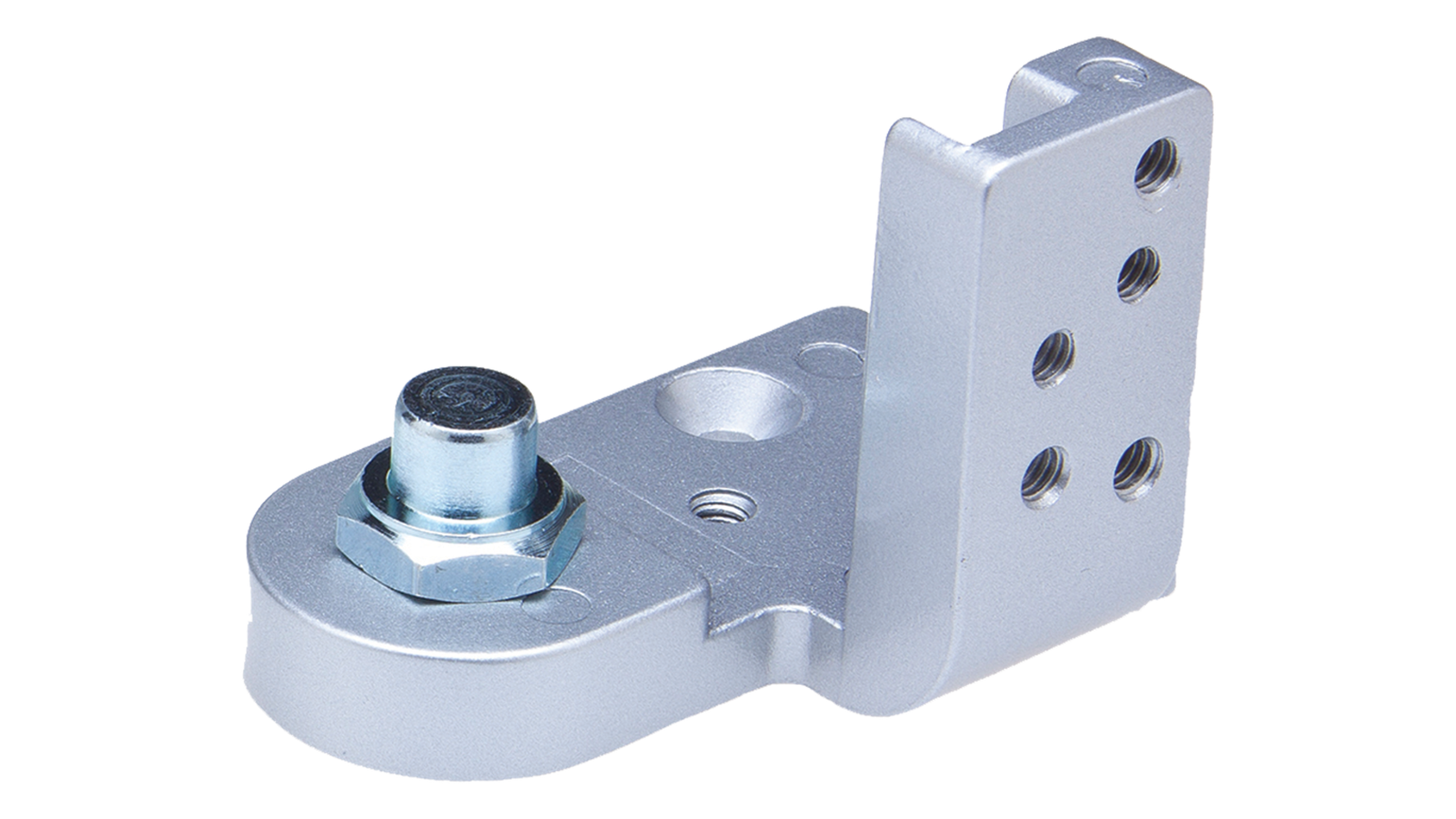

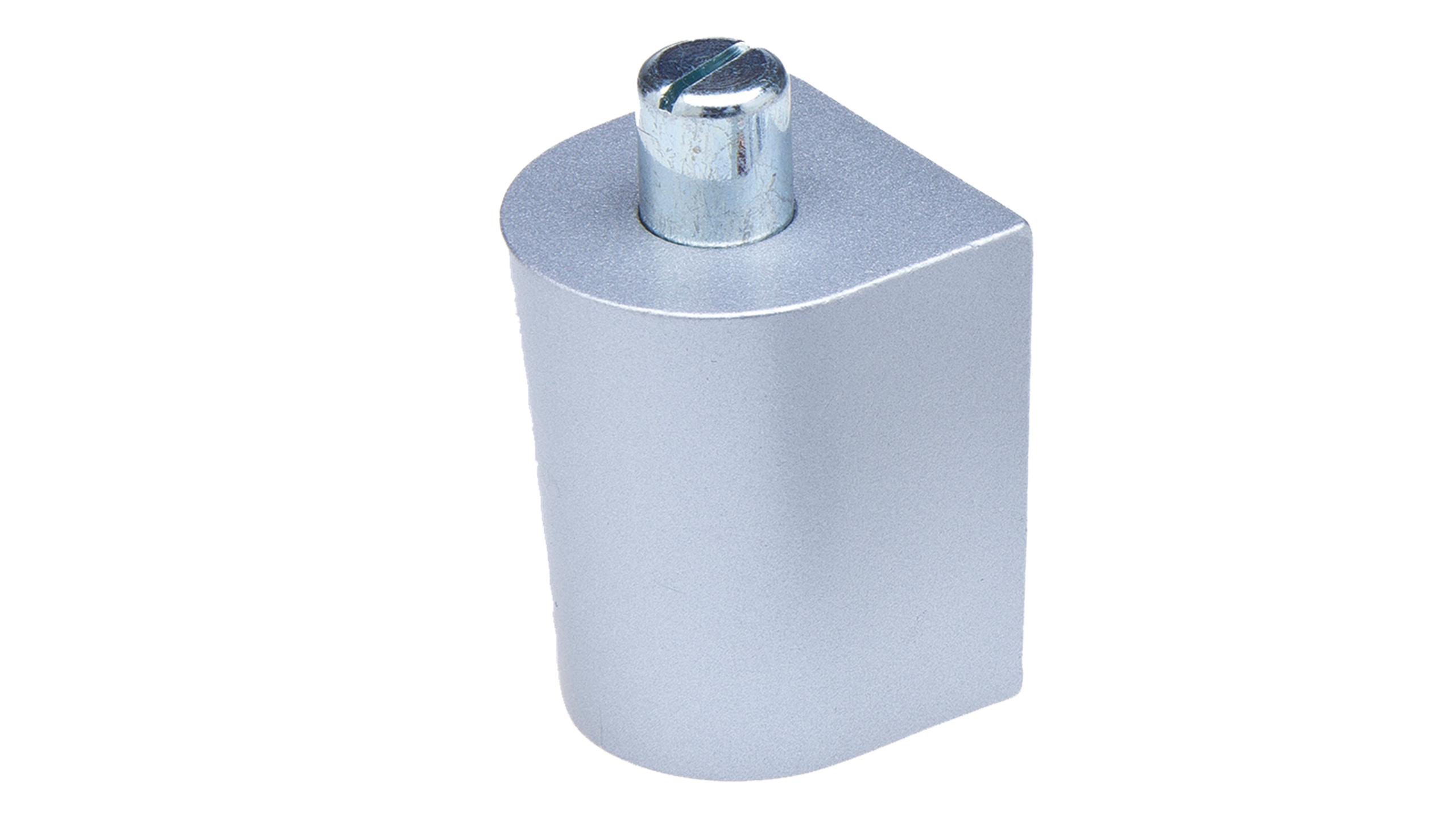

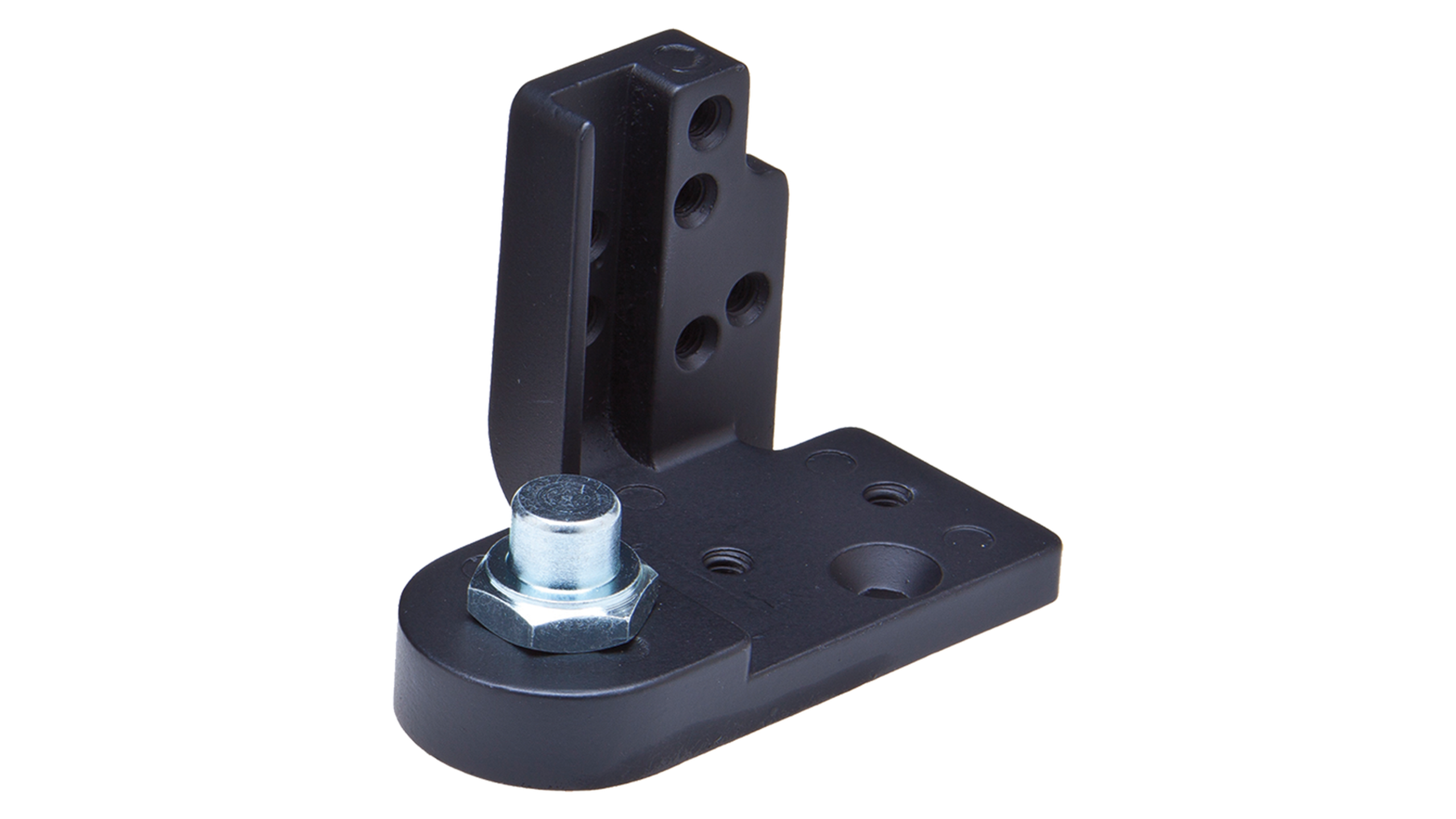

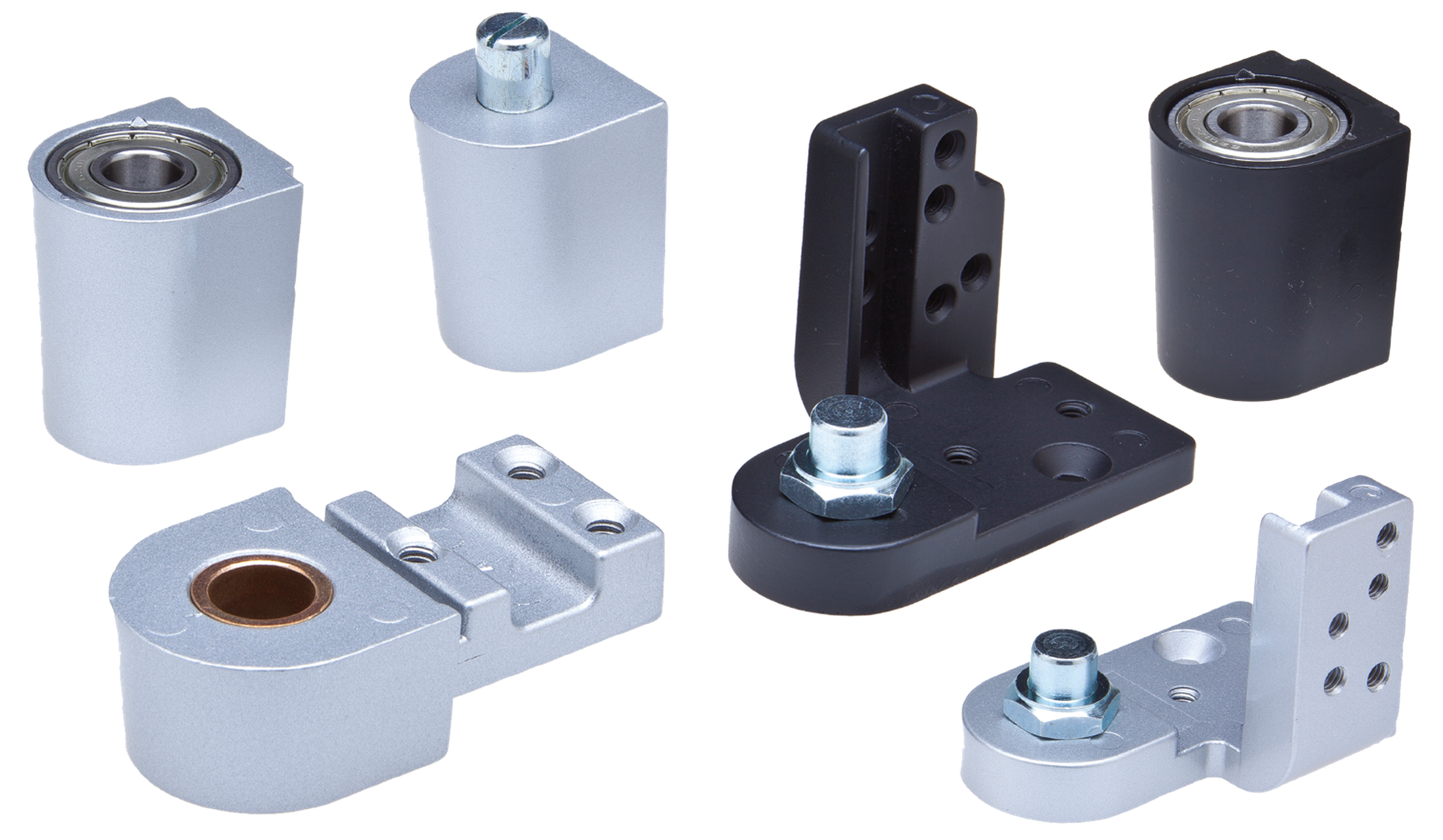

Offset Pivot IL-OP-18 Series
Top & Bottom Portion Set - Kawneer Style Door
Recessed Door Pivot Set
1/8" (3.18mm) Recessed Pivots - Top and Bottom sold separately to form a "set"
Product Details
Features
For both recessed door and flush face frame aluminum doors and frames applications. Door pivots replace most major door manufactures. These door pivots are suitable for aluminum doors and frames. Durable and easy to install.
technical _data
Die cast aluminum

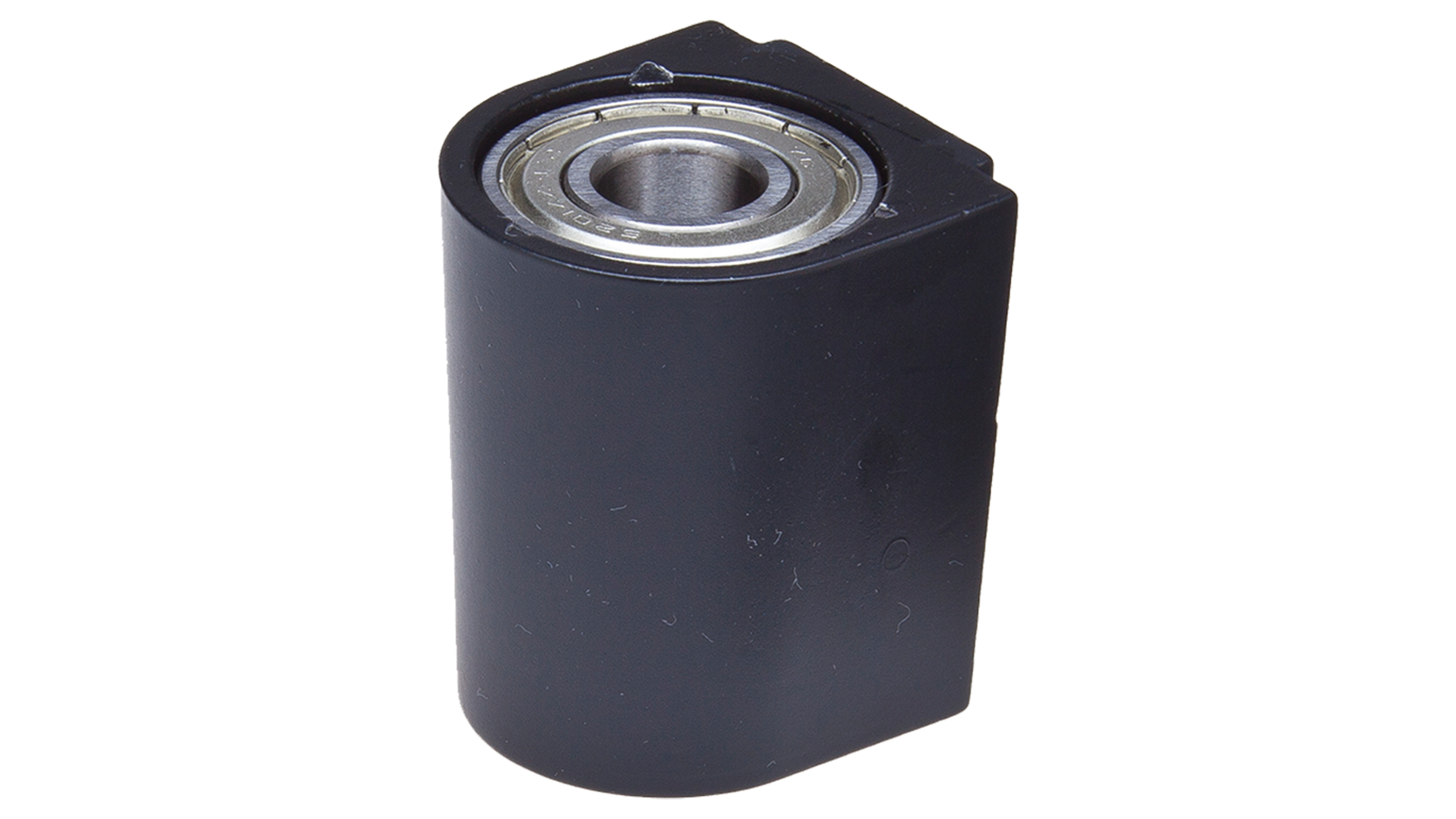

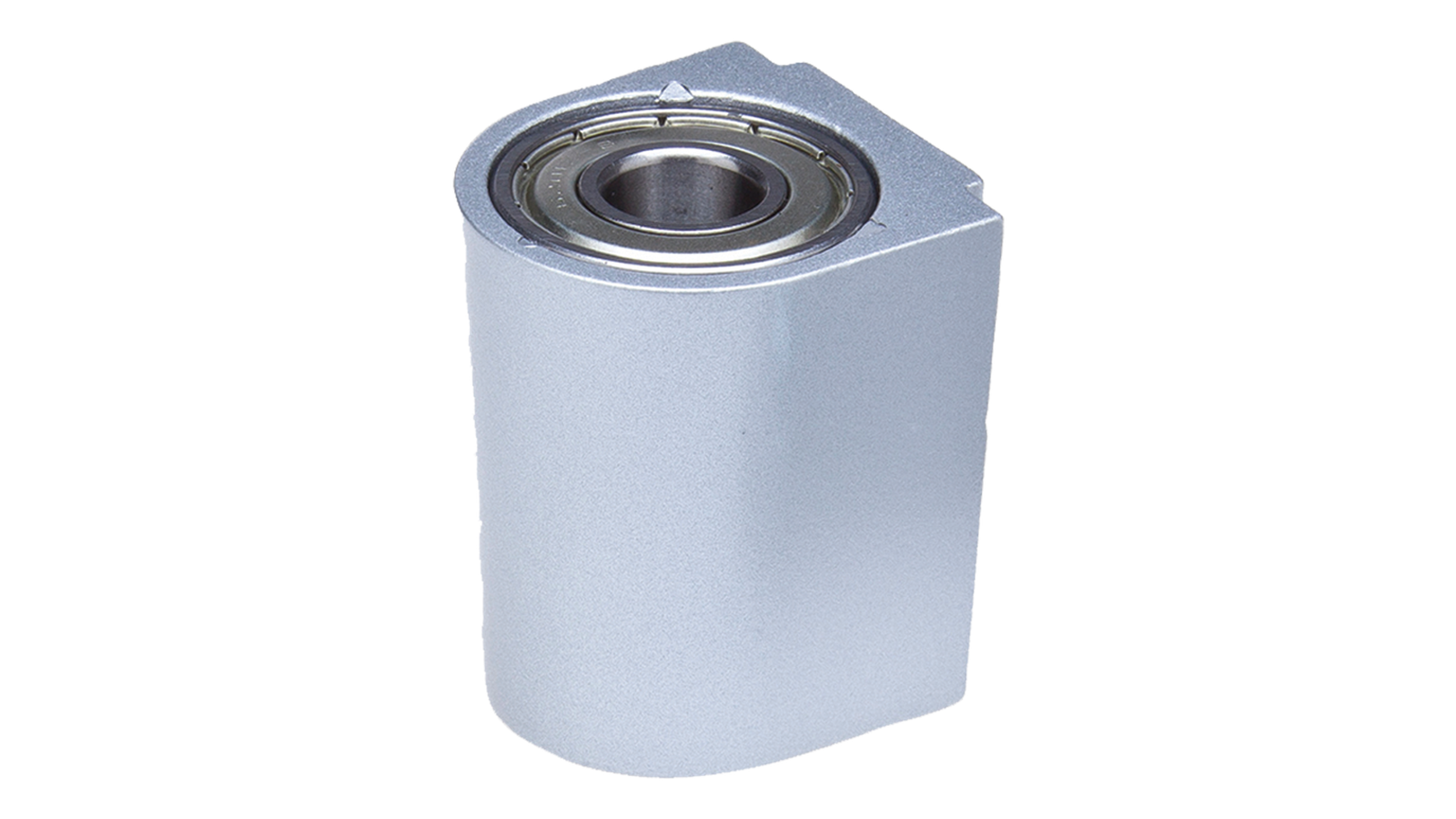

Full race ball bearing incorporated into bottom pivot portion
No sag, entire weight of door rests on floor mounted pivot portion
1⁄8” (3.18 mm) vertical adjustment
All weatherproof
LH & RH available
Available in painted clear aluminum or dark bronze (Special order colors are available upon request)
All fasteners included in sets. Fasteners (screw packs) can be purchased
