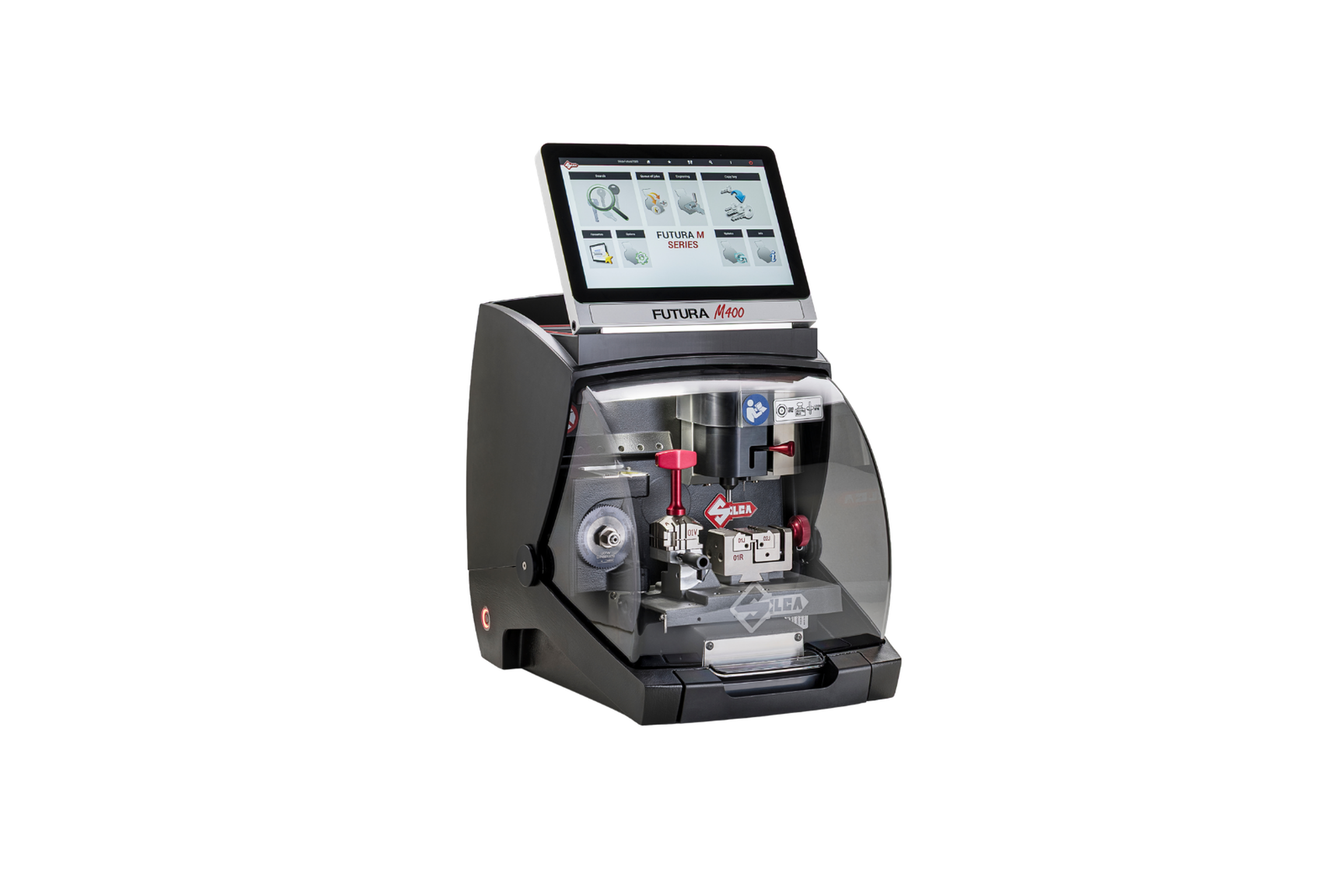

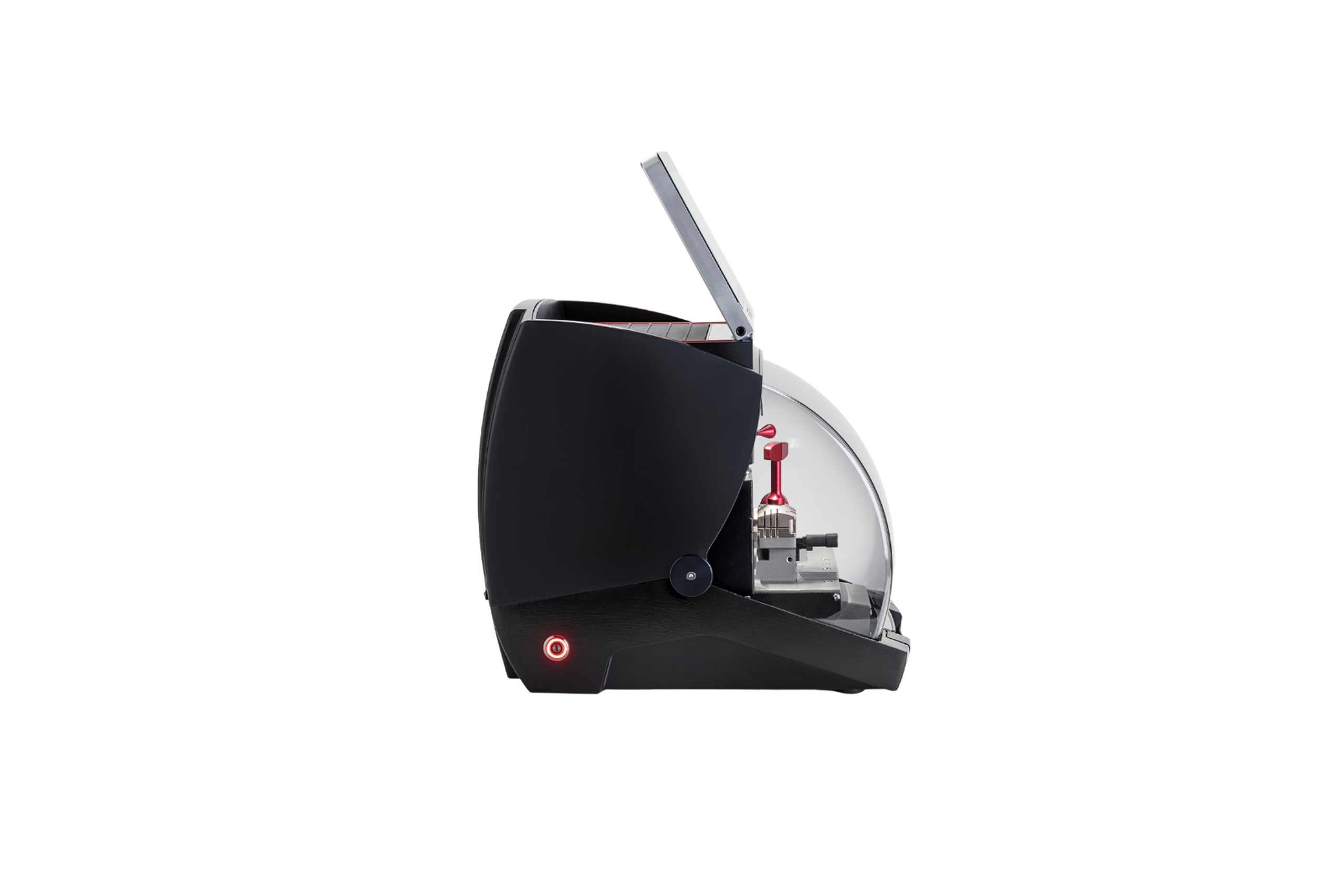

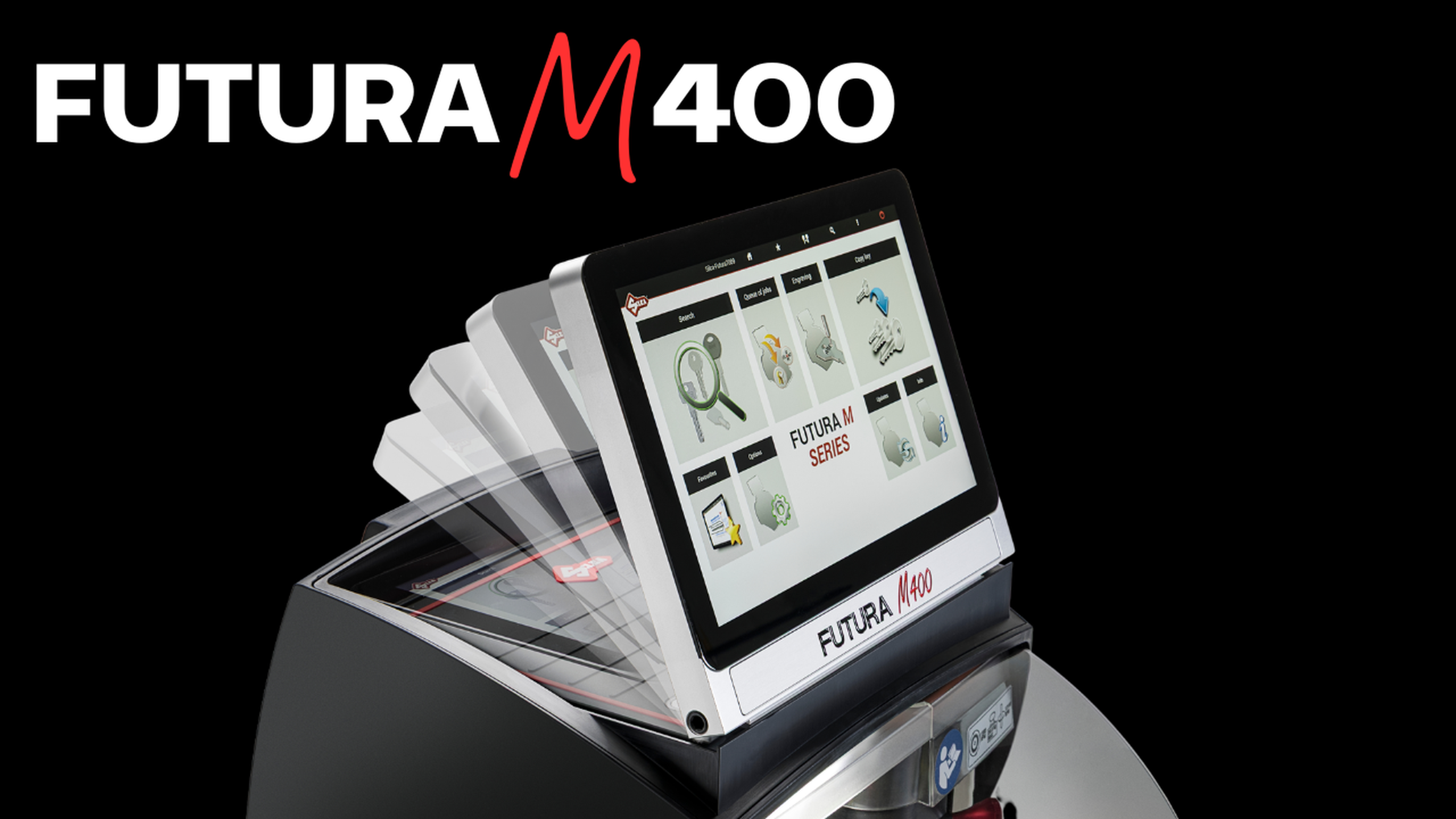

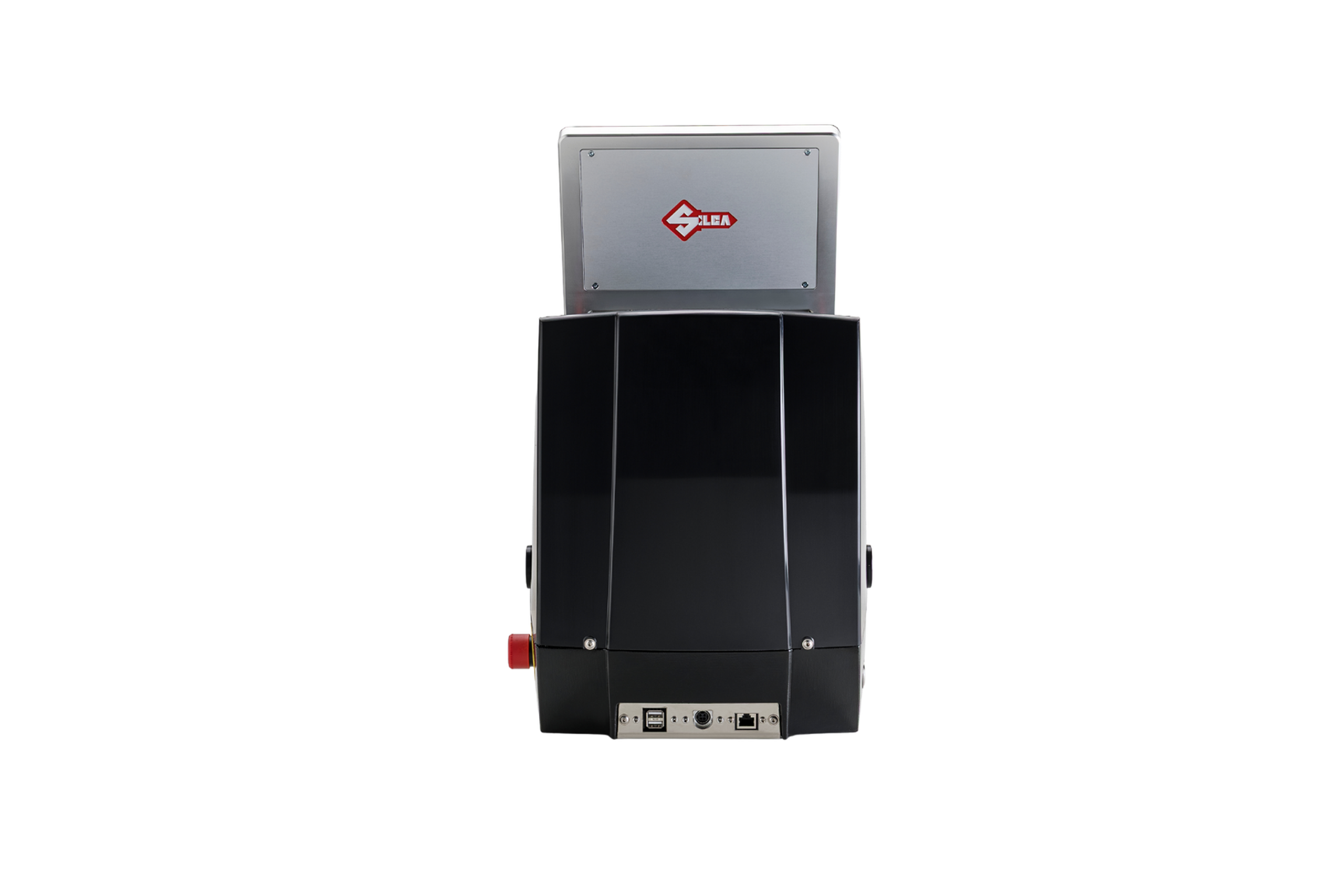

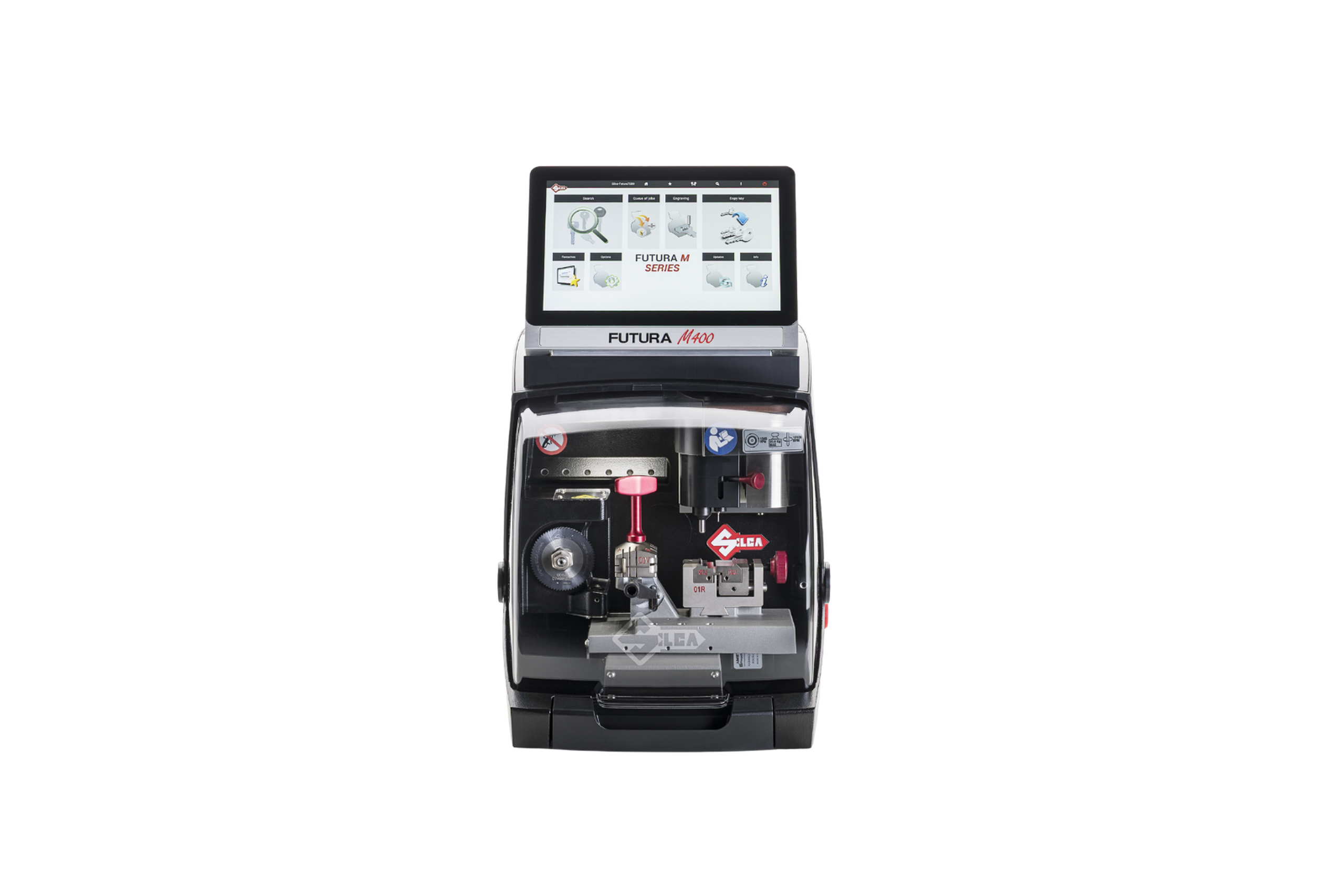

Futura M400
The Futura M400 is a new-generation electronic key cutting machine that incorporates the best of Silca technology and experience, duplicating residential, automotive, and specialty key types.
Designed to ensure maximum operational versatility, the Futura M400 allows the duplication of a wide range of flat and dimple keys, with flat or inclined keyways, including keys associated with protected and customized systems. Silca’s iconic key cutting machine is now faster, quieter, and even easier to use. Thanks to its easy-to-use yet powerful software, and its ability to cut all types of keys, including protected systems and customized cylinders, the Futura M400 is the perfect all-in-one solution for delivering a professional key service.
Product Details
Features
FLAT | CRUCIFORM KEY STATION
Decoding via optical reader
Copy by code and by original
Four-sided rotating clamp
Long-life WIDIA cutter
Gauge for precise key installation
LASER | DIMPLE CUTTING STATION
Decoding by electrical contact
Easy-to-install clamp
Interchangeable jaws
Automatic calibration of decoder and cutting station
Pull-out tracer point
Technical Data
Machine: 24V d.c. – 5.5 Amp – 130W
Power Pack: 90/264V a.c. – 50/60Hz – 220W
CUTTER MOTOR
Flat Cuts: 24V d.c.
AXES RUN
X Axis: 30 mm
Y Axis: 50 mm
Z Axis: 27 mm
MOVEMENTS
Movement on 3 axes (with special bushes), driven by step motors on rectified roller guides.
FLAT CUTS
Prismatic Cutter: U01W, Hard Metal with Coating
Clamp: 01V | Removable | Four universal sides holding flat, vehicle, and cruciform keys
DIMPLE CUTS
Cutter: 01D, in HSS Super Rapid Steel
Clamp: 01R | Removable | Provided with interchangeable jaws
LASER CUTS
Cutter: 01LW, in Carbide AICrN Coated
Clamp: 01R | Removable | Provided with interchangeable jaws
DIMENSIONS
Width: 318 mm
Depth: 413 mm
Height with tablet and stand: 530 mm
Height with display closed: 365 mm
Height: 20 kg
