Flash Mobile

ilco

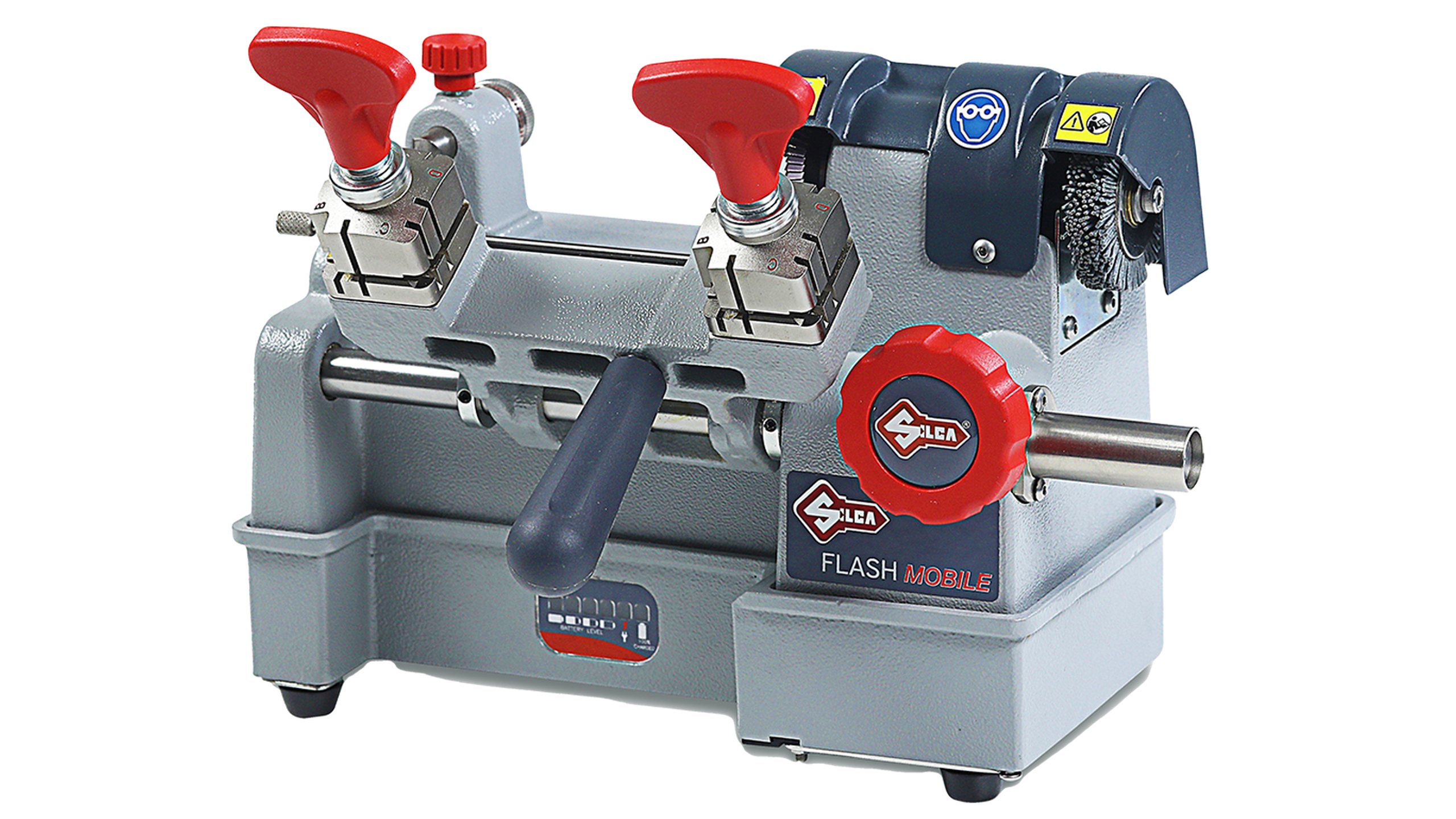

The Flash Mobile is a portable battery operated machine designed to duplicate edge cut automotive, residential and commercial keys.

Product Details


Features

  • Designed to cut typical residential, commercial and automotive keys including those with large bows or long blades as well as tip stop and flip-type keys.

  • Four jaw positions easily clamp virtually all edge cut keys present on the market

  • Clamps are nickel plated to provide long life

  • Space-saving solution for fixed or mobile use

  • Rotating knob ensures precise horizontal movements


technical _data

  • Power Supply:Ā 24V battery

  • Battery Capability:Ā 2950mAh lithium-ion

  • Battery Life:Ā 300+ brass keys in a single charge / LED indicator for monitoring battery charge status

  • Cutter Motor:Ā 120W, 2200 RPM +/- 10%

  • Movements:Ā by rectified carriage shaft and rack

  • Cutter:Ā AlTiN coated HSS (Super Rapid Steel)

  • Target Cutter Life:Ā 1,100 brass keys

  • Carriage Runs:Ā (maximum length of cuts) 42mm – 1.65ā€

  • Dimensions:Ā Width: 320 mm – 12.6ā€ Depth: 255 mm – 10.5ā€ (with carry handle) Height: 255 mm – 10.5ā€

  • Weight:Ā 7 kg – 15.4 lbs.

  • Noise level:Ā Sound pressure Lp(A) = 56 dB(A)

  • Ideal Environmental conditions:Ā between 10-40⁰ C (50-104⁰ F) 60% humidity


Functionality

Power Supply: 24V battery Battery Capability: 2950mAh lithium-ion Battery Life: 300+ brass keys in a single charge / LED indicator for monitoring battery charge status Cutter Motor: 120W, 2200 RPM +/- 10% Movements: by rectified carriage shaft and rack Cutter: AlTiN coated HSS (Super Rapid Steel) Target Cutter Life: 1,100 brass keys Carriage Runs: (maximum length of cuts) 42mm – 1.65ā€ Dimensions: Width: 320 mm – 12.6ā€ Depth: 255 mm – 10.5ā€ (with carry handle) Height: 255 mm – 10.5ā€ Weight: 7 kg – 15.4 lbs. Noise level: Sound pressure Lp(A) = 56 dB(A) Ideal Environmental conditions: between 10-40⁰ C (50-104⁰ F) 60% humidity
