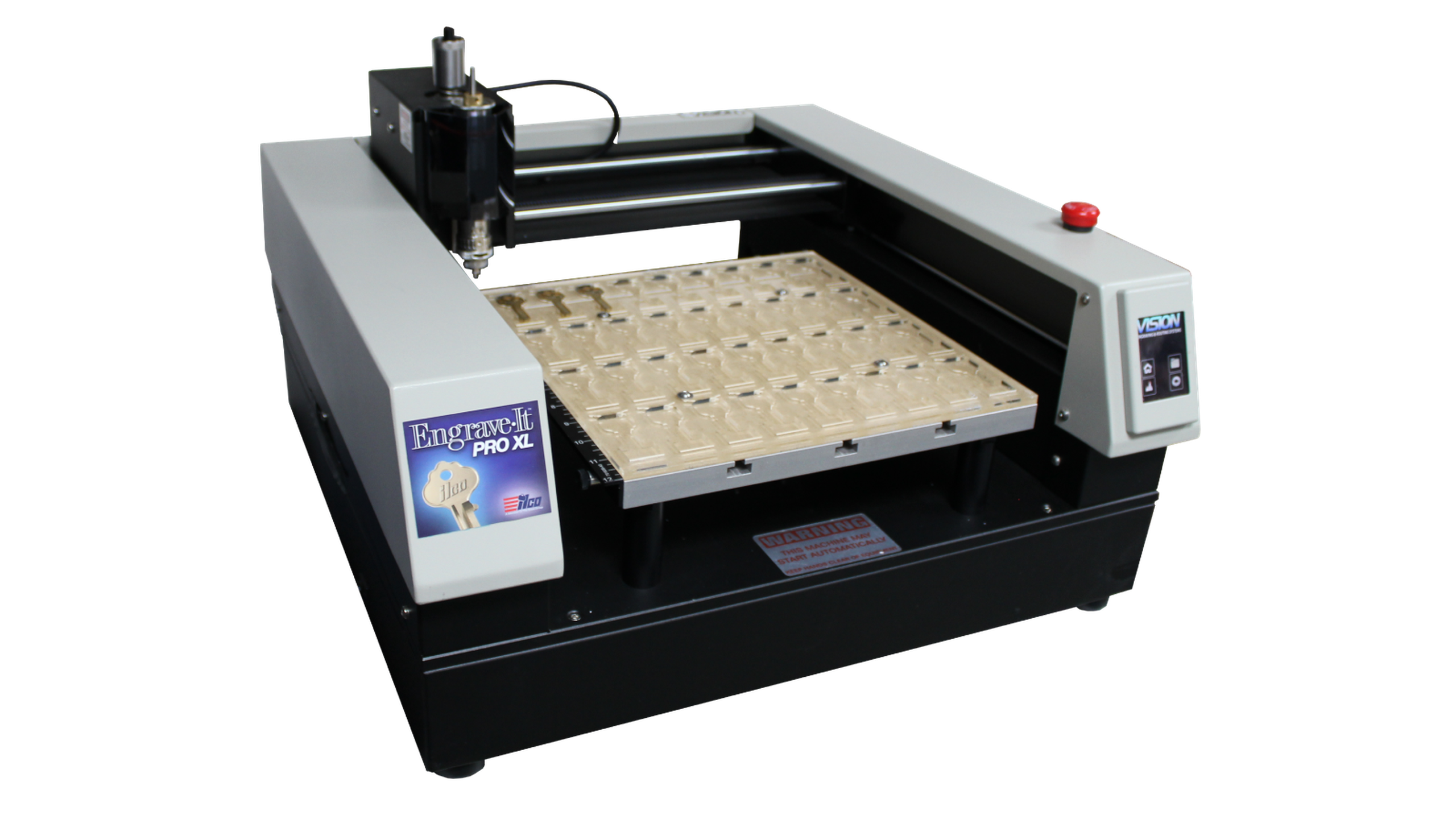

Engrave It™ Pro XL

ilco

The Engrave-It™ Pro XL is the perfect extra-large engraver for engraving key, lock cylinders, padlocks, ID plates/tags and much more! The Engrave-It™ Pro XL is a simple to operate engraving solution that provides coverage of a broad range of items in both the lock shop and institutional environment. This machine provides the maximum capacity needed for marking keys, lock cylinders (including IC), padlocks, ID plates/tags, laminated plates/tags, and much more!

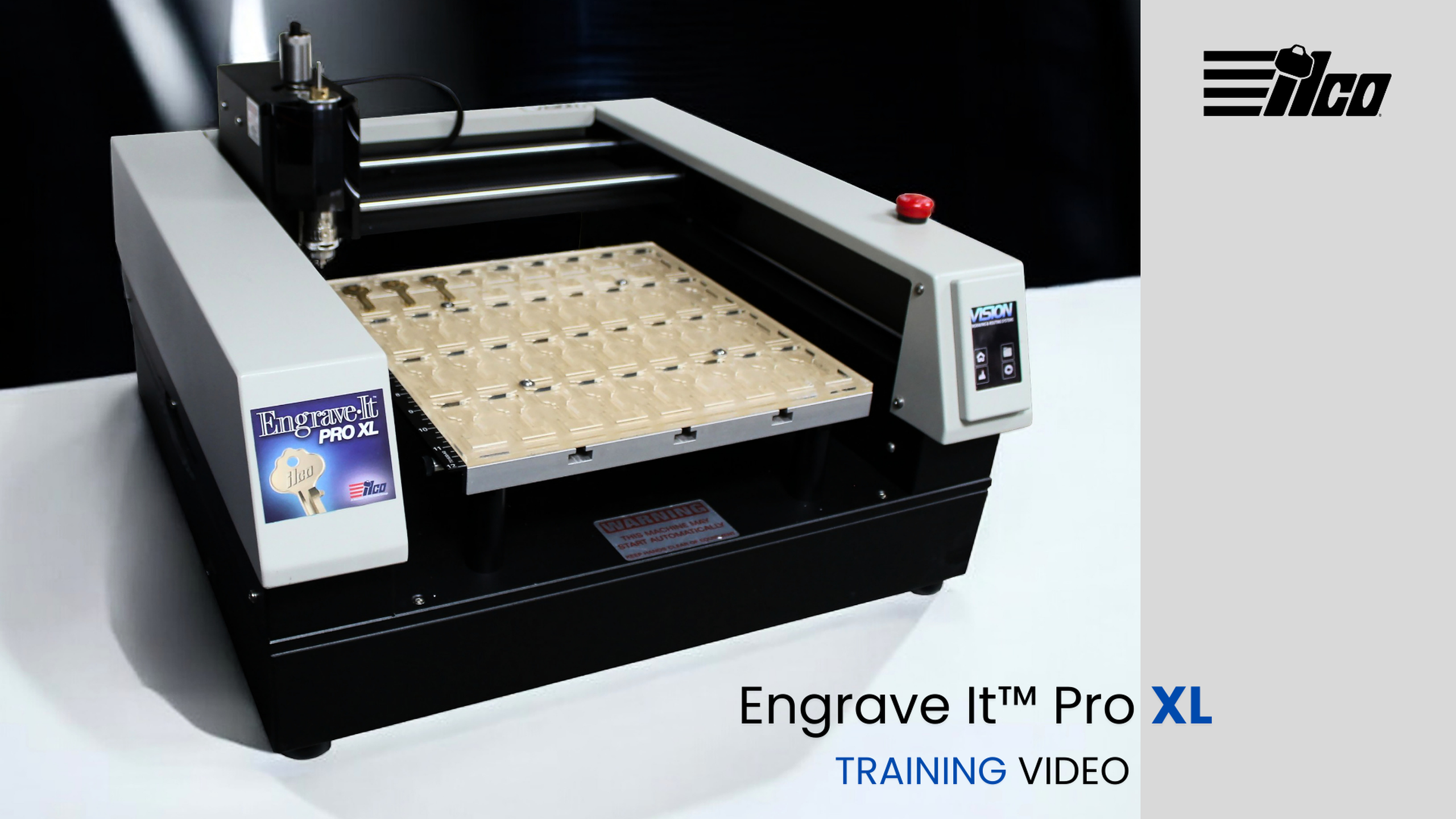

Engrave It Pro XL Training Video

Product Details


Features

  • Sequential numbering

  • Custom lettering for marking keys, popular lock cylinders, and many other items.

  • Extra-large holder for increased capacity of up to 40 keys.

  • Capable of “fine” engraving for presentation plaques, etc.

  • Variety of fonts and marking styles

  • Carious clamping options provided to secure items being engraved.

  • New V-Touch multi-functional touch screen

  • Red laser pointer for easy job set-up

  • Vision Pro 10 “Expert” software package

  • Technical Data Description


technical _data

  • Software: Vision Expert 10 “Expert” software package

  • Movement: Stepper motor controlled engraving head positioning

  • Interface: Ethernet

  • Speed: X-Y Axis = .0002” 5”/second

  • Warranty: 1-Year Limited Warranty

  • Power: 110/220 2 Amp

  • Dimensions: 19”W x 22”D x 14.5”H Weight: 45lbs

  • Shipping Dimensions: 27”W x 22”D x 19”H Weight: 60lbs

  • Computer Specs: A customer supplied PC is required to operate the Engrave-It PRO.

Minimum System Requirements

  • Single Core 2 GHz CPU, 5 GB Hard Drive, 1GB RAM,

  • Windows 7 or higher (32 bit or 64 bit) Operating System.

Recommended System Requirements

  • Dual Core 2.0 GHz (or faster), 40 GB Hard Drive, 2 GB RAM
