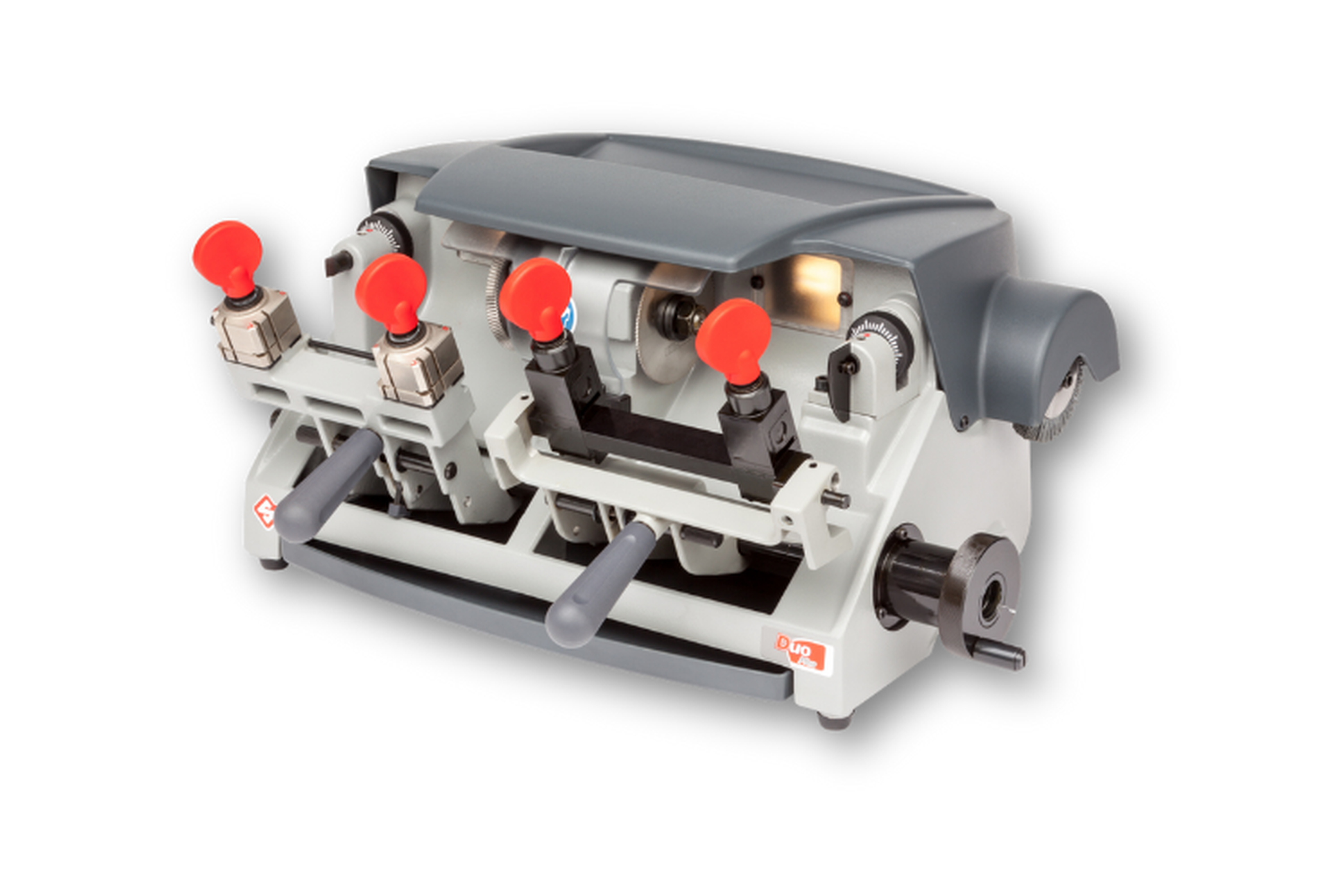

Duo Plus

ilco

The Duo Plus is designed to duplicate edge cut, automotive, residential, and commercial keys, as well as bit, double bit, flat style (safe, safety deposit, mailbox) and other specialty keys such as AbusĀ® and AbloyĀ® type keys.

Duo Plus is a multi-function, manually operated machine that duplicates edge cut keys, bit, double bit, AbusĀ®, and AbloyĀ® style keys. The Duo Plus is a dual carriage machine that cuts cylinder, vehicle, and cruciform keys (left-hand carriage) as well as bit, double bit, flat style (safe, safety deposit, mailbox), and special keys such as AbusĀ® and AbloyĀ® type keys (right-hand carriage).

Read More

Product Details


Features

  • The tilting mechanism makes it possible to make excellent flares on bit and double bit keys • Innovative carriage release system for free-moving or regulated carriage

  • Four-sided revolving clamps on the left side for edge cut style

  • Two/three sided revolving clamps on the right for AbusĀ® and AbloyĀ® type keys

  • Cut-out switch that triggers automatically should power fail

  • LED lighting illuminates work area

  • Large swarf tray


technical _data

  • Specifications

    • Power Supply: 120V-60Hz, Rated Current 2.7 Amps

    • Motor: .25HP, single phase, 1700 rpm

    • Cutter: BC0605XXXX / BC0606XXXX both are HSS

    • Cutter Guide: BJ0928XXXX / BJ1229XXXX

    • Brush: BJ0929XXXX 3/8" (10 mm) Nylon

  • Dimensions:

    • Width: 20.1" (510 mm)

    • Depth: 17.7" (450 mm)

    • Height: 11" (280 mm)

    • Weight: 50.7 lbs. (23kg)
