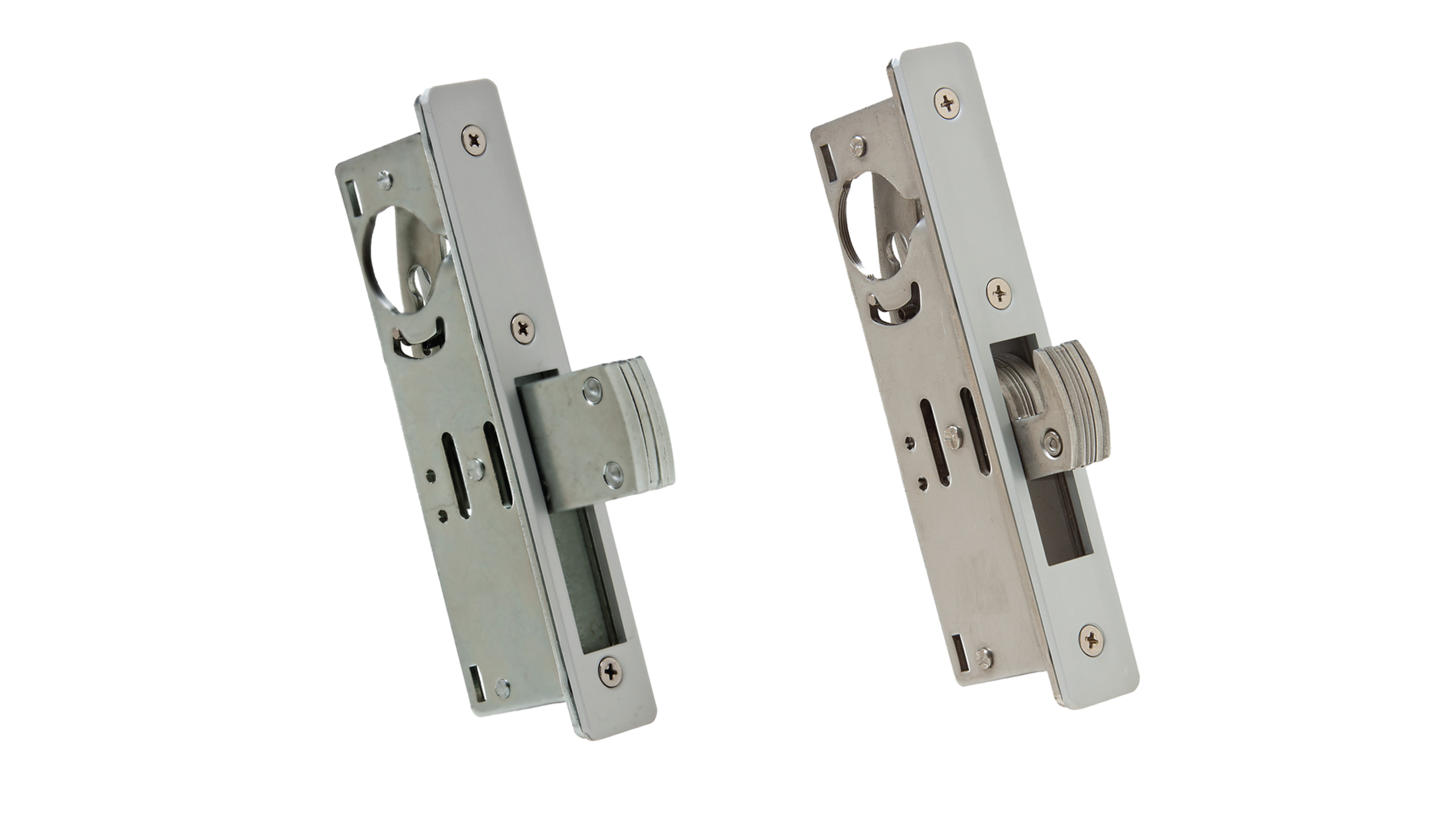

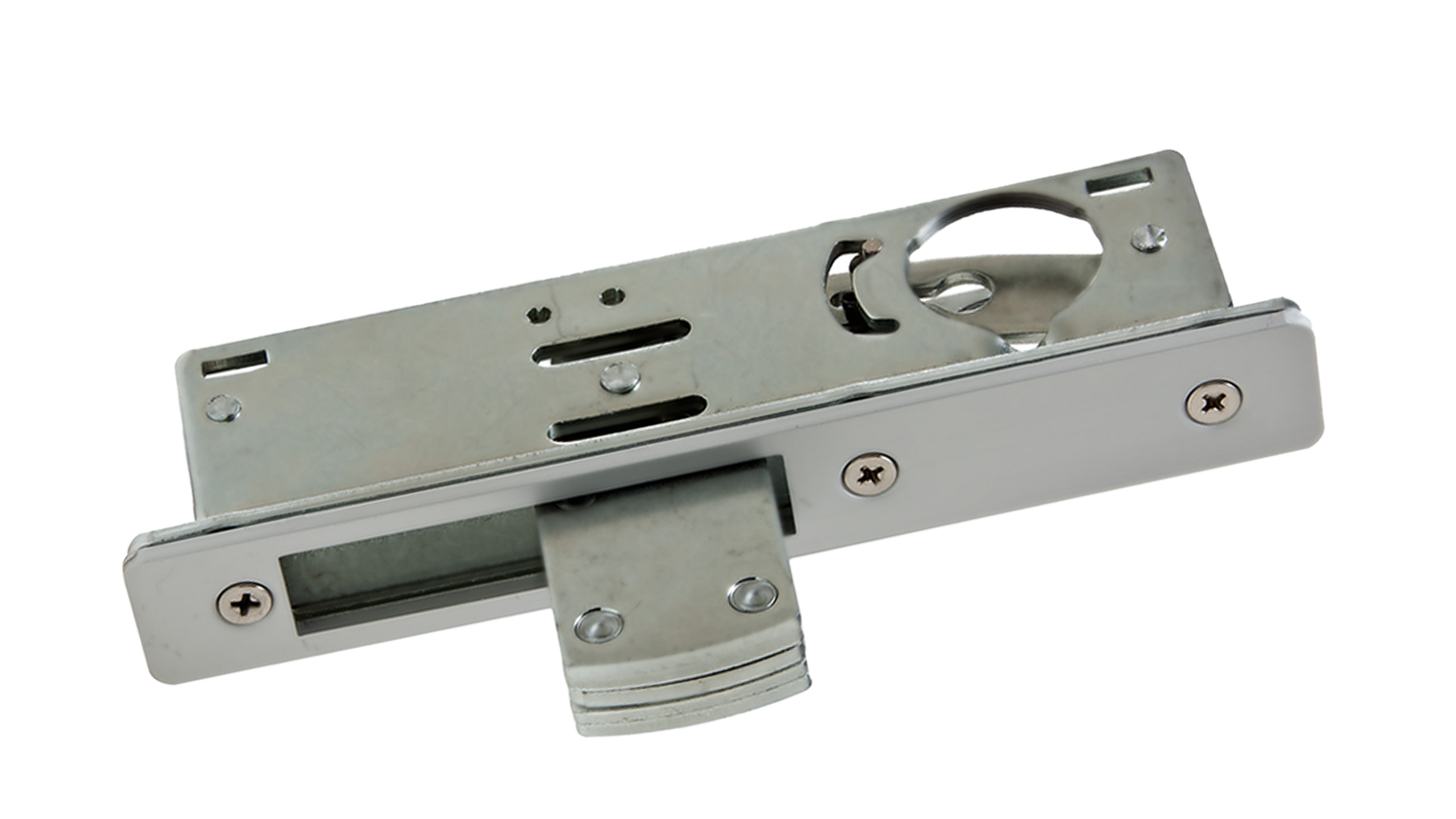

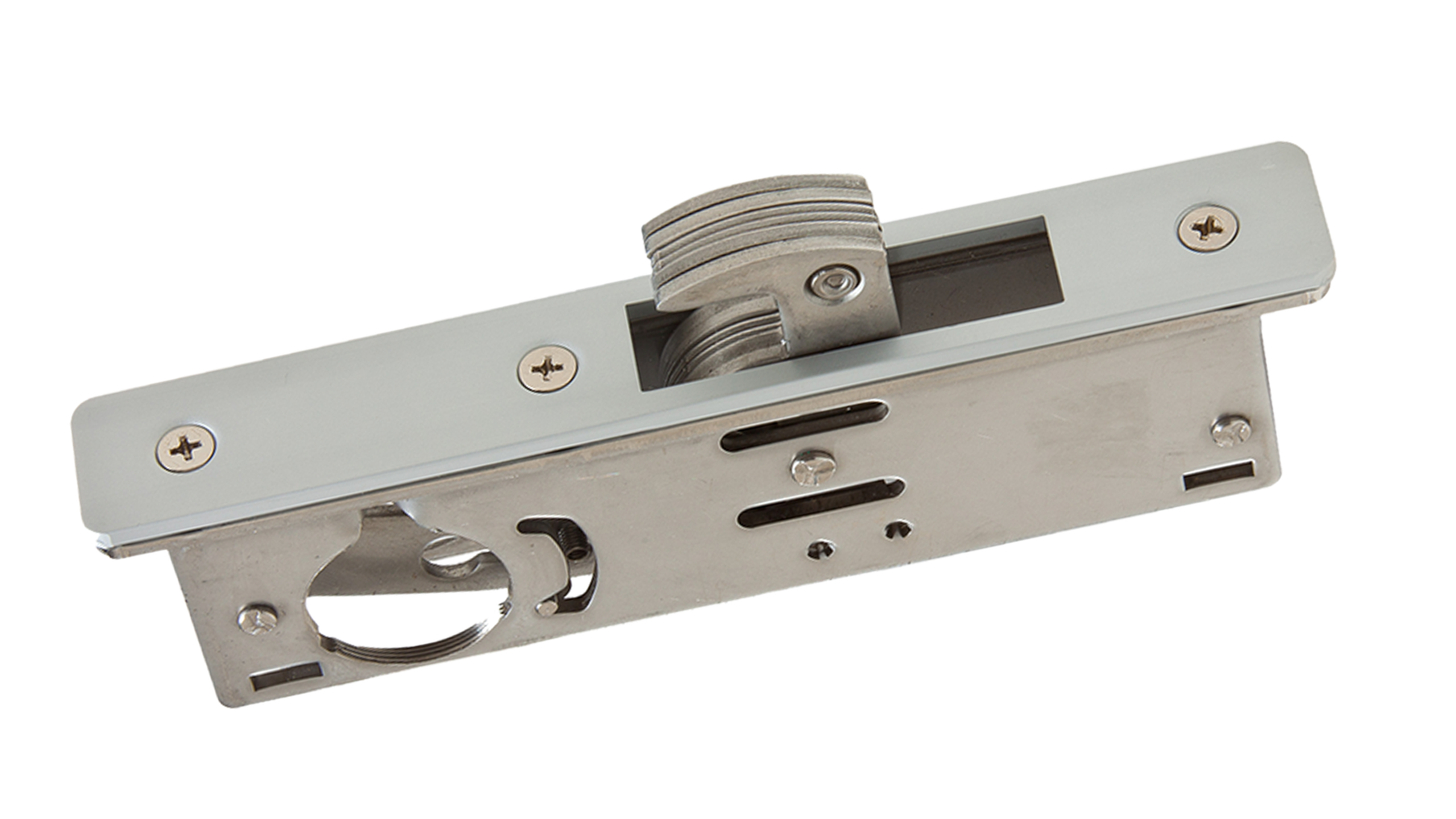

Deadbolt & Hookbolt - 185 & HB185 Series
ilco
Five-ply laminated steel bolt with convealed hardened steel pin provides max security on single leaf doors.
Accepts standard 1 5/32" (29.36mm) Zinc or brass threaded mortise cylinder
Product Details
Features
For aluminum sliding doors.
Cycle testing exceeds ANSI Grade 1 standards
Steel case with corrosion resistant plating
technical _data
Backset:
31/32" (24,59mm), 1 1/8" (28.58mm), 1 1/2 "(38.1mm)
Bolt Dimension
Staight Bolt:
Width: 5/8" (15.88mm)
Length: 2 78" (73.03mm)
Hook Bolt
Width: 5/8" (15.88mm)
Lenght: 1 3/8" (34.9mm)
Throw
Straight Bolt: 1 3/8" (34.9mm)
Hook Bolt: 13/16" (20.6mm)
