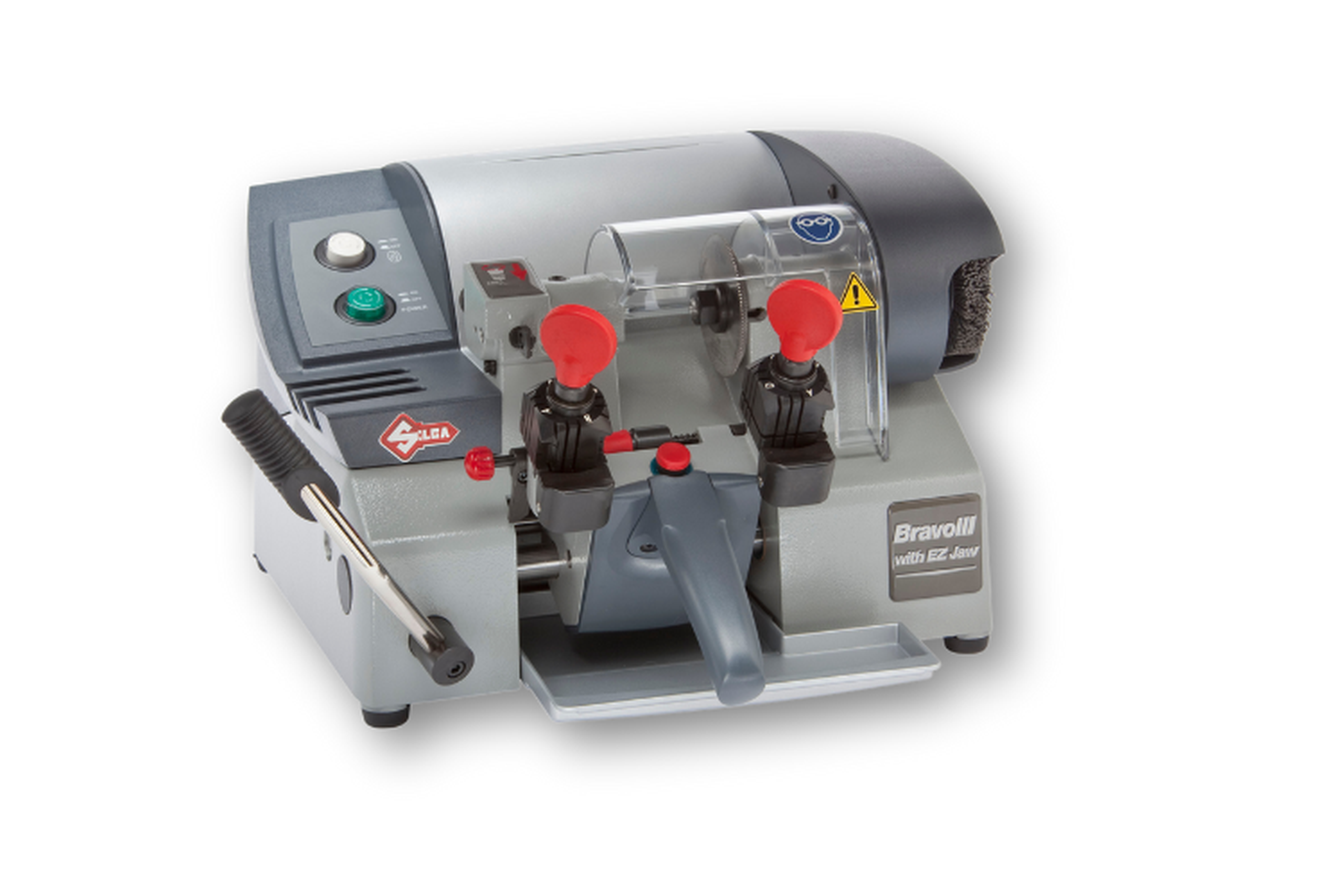

Bravo III with EZ-Jaw®

ilco

The Bravo III with EZ-Jaw is designed to duplicate edge cut automotive, residential and commercial keys.

The Bravo III is a high-precision, heavy-duty semi-automatic key machine designed for ultra-reliability and ease of use. The Bravo III key machine is provided with the CU50A cutter and a corresponding cutter guide. The durable cobalt steel cutter ensures a smooth, clean, accurate cut. The Bravo III is designed to duplicate common cylinder and automotive key blanks as well as Titan®and older GM® with 90-degree first cut bitting characteristics.

Read More

Product Details


Features

  • Wide spacing between vise jaws accommodates new longer keys and large headed keys.

  • Versatile four-position EZ-Jaw® vise jaws securely grip virtually all residential, commercial, and automotive keys… including double-sided types, without requiring adapters. Designed with the user in mind, they are rotatable from one position to another without lifting first.

  • Carriage is spring loaded, provides consistent cutting pressure, and reduces potential for miscuts.

  • Automatic cutter start feature controlled by micro-switch is activated by raising or lowering the carriage.

  • Precise adjustments. A tracer point with micrometer dial regulation makes it quick and easy to adjust depth of cut; simple to replace when worn.

  • Carriage release button can only be activated when the key gauges are in the down position, preventing potential cutter contact.

  • Two carriage shafts ensure sensitivity and precision in the cutting movement.

  • Features a “soft-touch” deburring nylon brush.


technical _data

  • Motor: 110V standard; 1⁄ 4 hp capacitor start Vise Jaws: EZ-Jaw™

  • Cutter: CU50A milling cutter, flat left side, cobalt steel Brush: D925102ZR

  • Dimensions: 15”W x 20” D x 10” H (38cm x 51cm x 25cm) Weight: 47 lbs. (21.4kg)
