4500 Series Mortise Deadbolt

ilco

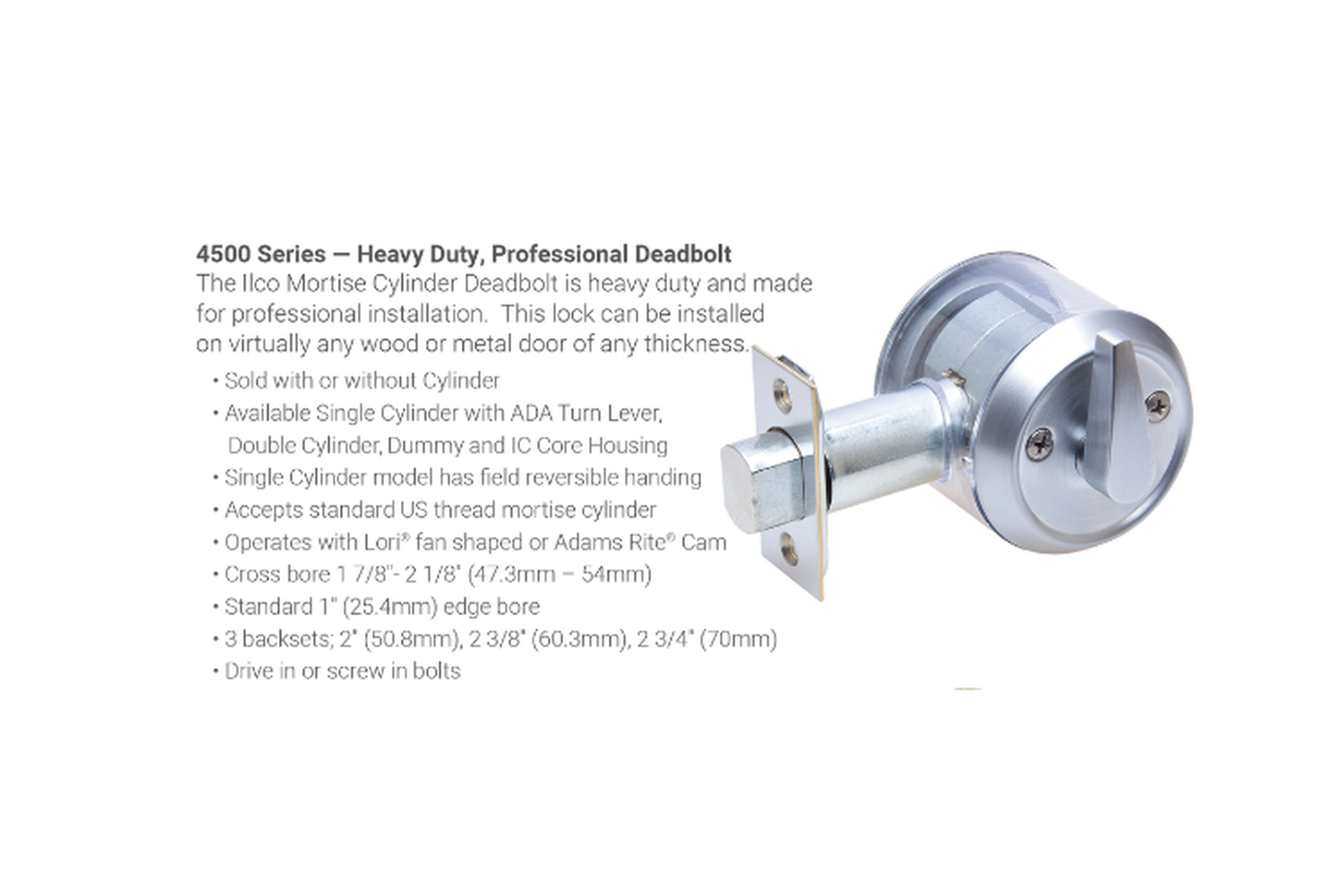

The Ilco Mortise Cylinder Deadbolt is a heavy duty and made for professional installation. This lock can be installed on virtually any woos or metal door of any thinkness.

The Ilco line of deadbolts is offered in 7 standard finishes plus 2 Premier Finishes (32D Satin Stainless Steel and 03P Permanent Polished Bright Brass over stainless steel). These finishes are the perfect solution for keeping that "like new" finish for years.

For the most up to date information and stock list, refer to the Brass Cylinder, Storefront Hardware Suggested List Price Book.

Read More

Product Details


Features

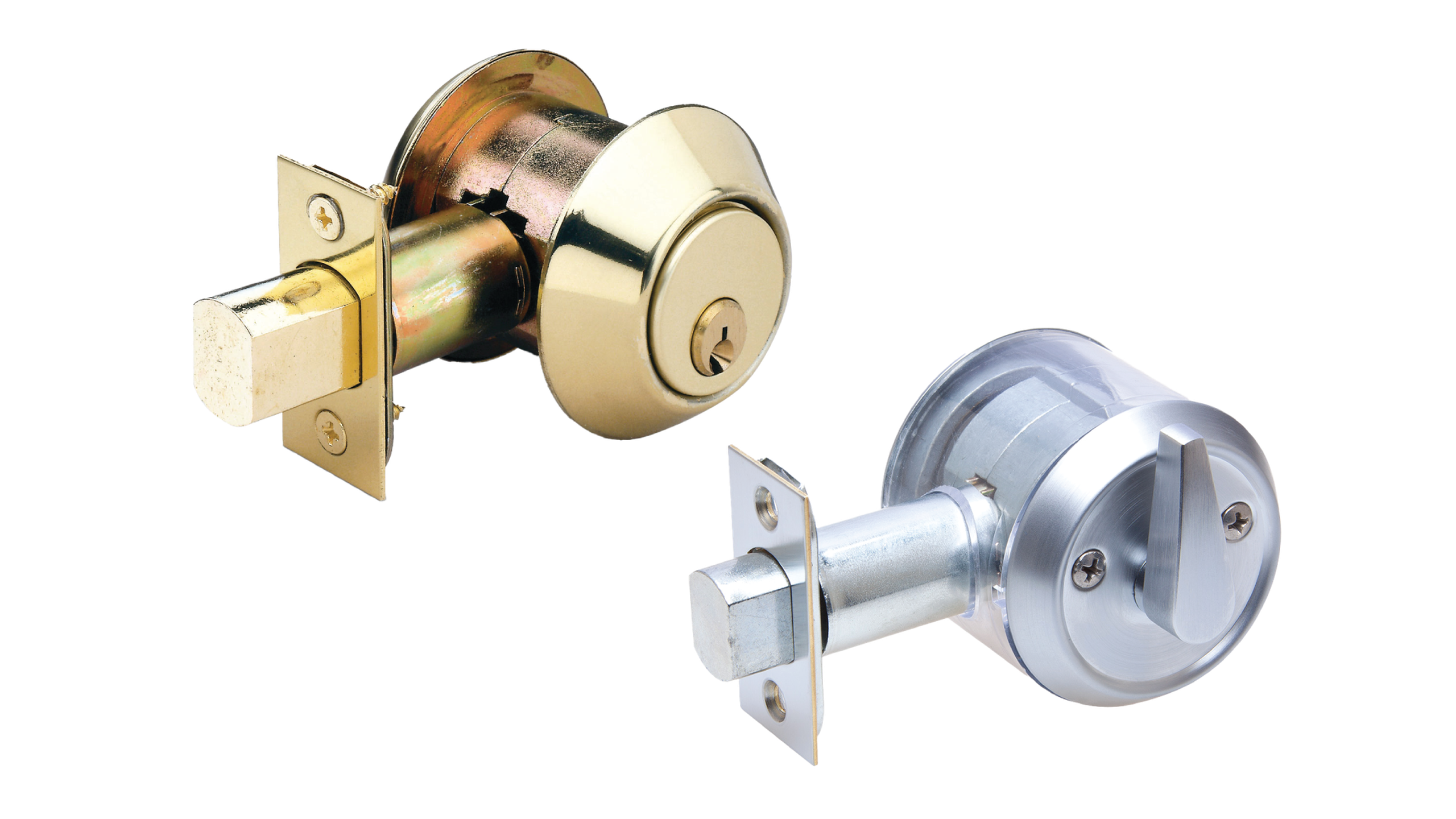

Mortise Deadbolts are available in a variety of styles and functions.

  • 1" (25mm) bolt throw

  • 9 finishes

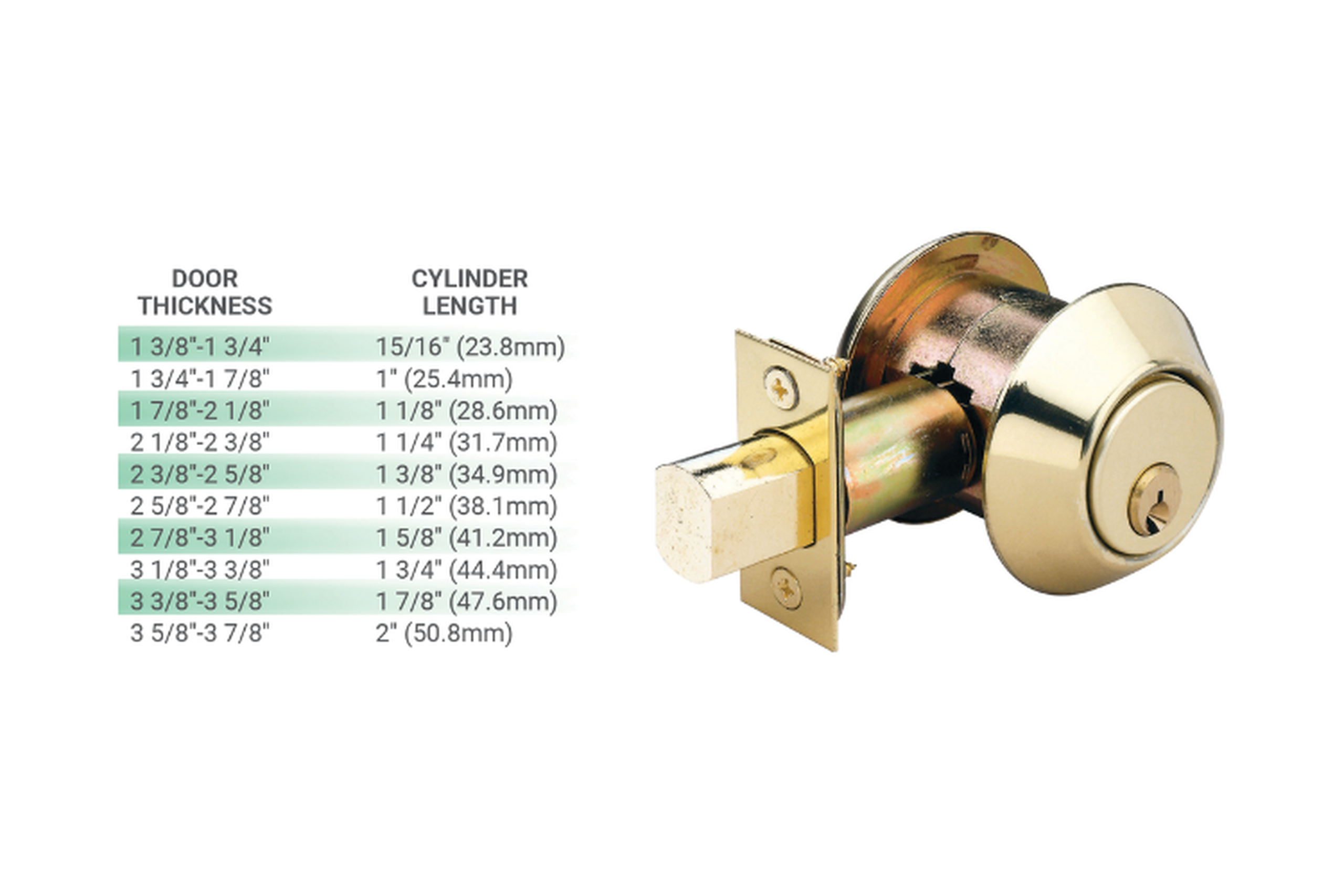

  • Fits doors 1ā…œ"(35mm) - 1 ¾"(44mm) thick

  • Single cylinder, double cylinder and classroom function

  • Available with cylinder or less cylinder


technical _data

  • Sold with or without Cylinder

  • Available Single Cylinder with ADA Turn Lever, Double Cylinder, Dummy and IC Core Housing.

  • Single Cylinder model has field reversible handing

  • Accepts standard US thread mortise cylinder

  • Operations with Lori (R) fan shaped or Adams Rite (R) Cam

  • Cross bore 1 7/8" - 2 1/8" (47.3mm - 54mm)

  • Standard 1" (25.4mm) edge bore

  • 3 backsets; 2" (50.8mm), 2 3/8" (60.3mm), 2 3/4" (70mm)

  • Drive in or screw in bolts
